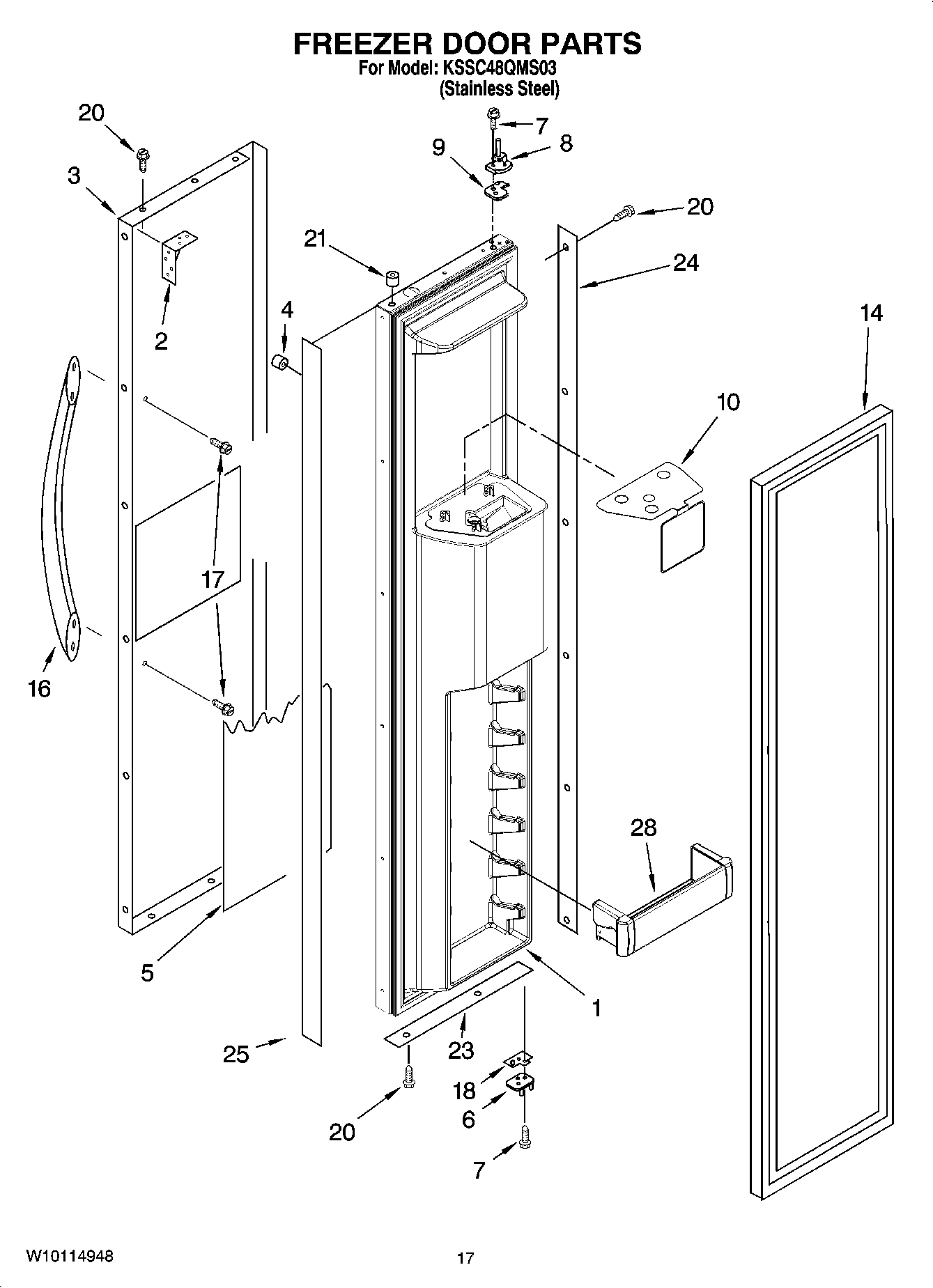

KSSC48QMS03 11 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door Panel (Includes Insulation) (Black)
2	BRACE, DOOR CORNER
3	Door Skin
4	2252354 Whirlpool Spacer Assembly
5	Filler, Door
6	HINGE-DOOR
7	W11474472 Whirlpool Screw
8	W11724512 Whirlpool Door Hinge
9	Spacer-Hinge, Top
10	Safety Barrier
14	WP2266901 Whirlpool Door Gasket
16	Handle, Door (Stainless Steel)
17	WP308544 Whirlpool Screw
18	Door Spacer, Bottom
20	WP8281250 Whirlpool Refrigerator Screw
21	2005433 Whirlpool Refrigerator Spacer
23	SPACER, DOOR SKIN BOTTOM
24	Spacer, Hinge Side
25	Spacer, Door (Handle Side)
28	W11590561 Whirlpool Refrigerator Cantilever Bin
