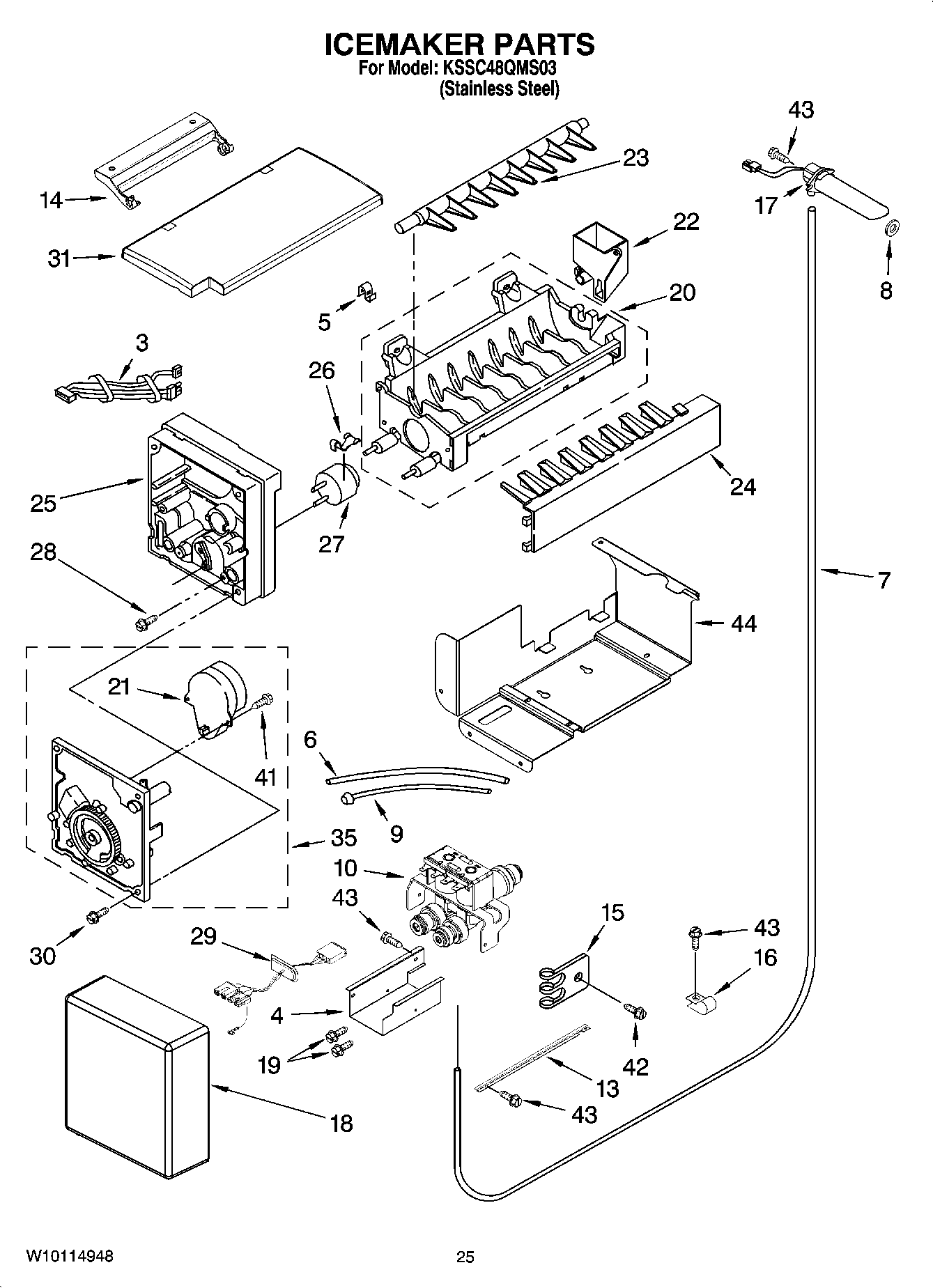

KSSC48QMS03 15 – ICEMAKER PARTSadmin2025-04-26T12:31:27+00:00KSSC48QMS03 15 – ICEMAKER PARTS ProductsPositionProduct3Wire Assembly, Icemaker4Shield, Valve5WP628379 Whirlpool Refrigerator Clip6Tube, Filter Inlet7Water Tube8Seal Gasket9W11533506 Whirlpool Refrigerator Water Tube10WP2317883 Whirlpool Water Inlet Valve13Support, Valve14WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket15WP488366 Whirlpool Refrigerator Clamp16Clamp, Tube17W10460127 Whirlpool Refrigerator Inlet Tube18Cover19WP489128 Whirlpool Refrigerator Screw20WPW10190929 Whirlpool Refrigerator Ice Maker Mold21Motor (Not Serviceable, Order Item 35)22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24W10297244 Whirlpool Refrigerator Arm Strip25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat288533917 Whirlpool Refrigerator Screw29Wire Assembly, (Water Valve)30WP681249 Whirlpool Screw Assembly31WPW10504754 Whirlpool Refrigerator Ice Door35W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly41489136 Whirlpool Refrigerator Screw42WP489464 Whirlpool Refrigerator Screw43W11624204 Whirlpool Screw442252228 Whirlpool Refrigerator Bracket100Cleaner, Stainless Steel100WPW10277448 Whirlpool Icemaker Assembly100Ice Container Assembly100Following Parts Not Illustrated (Optional Parts Only)
