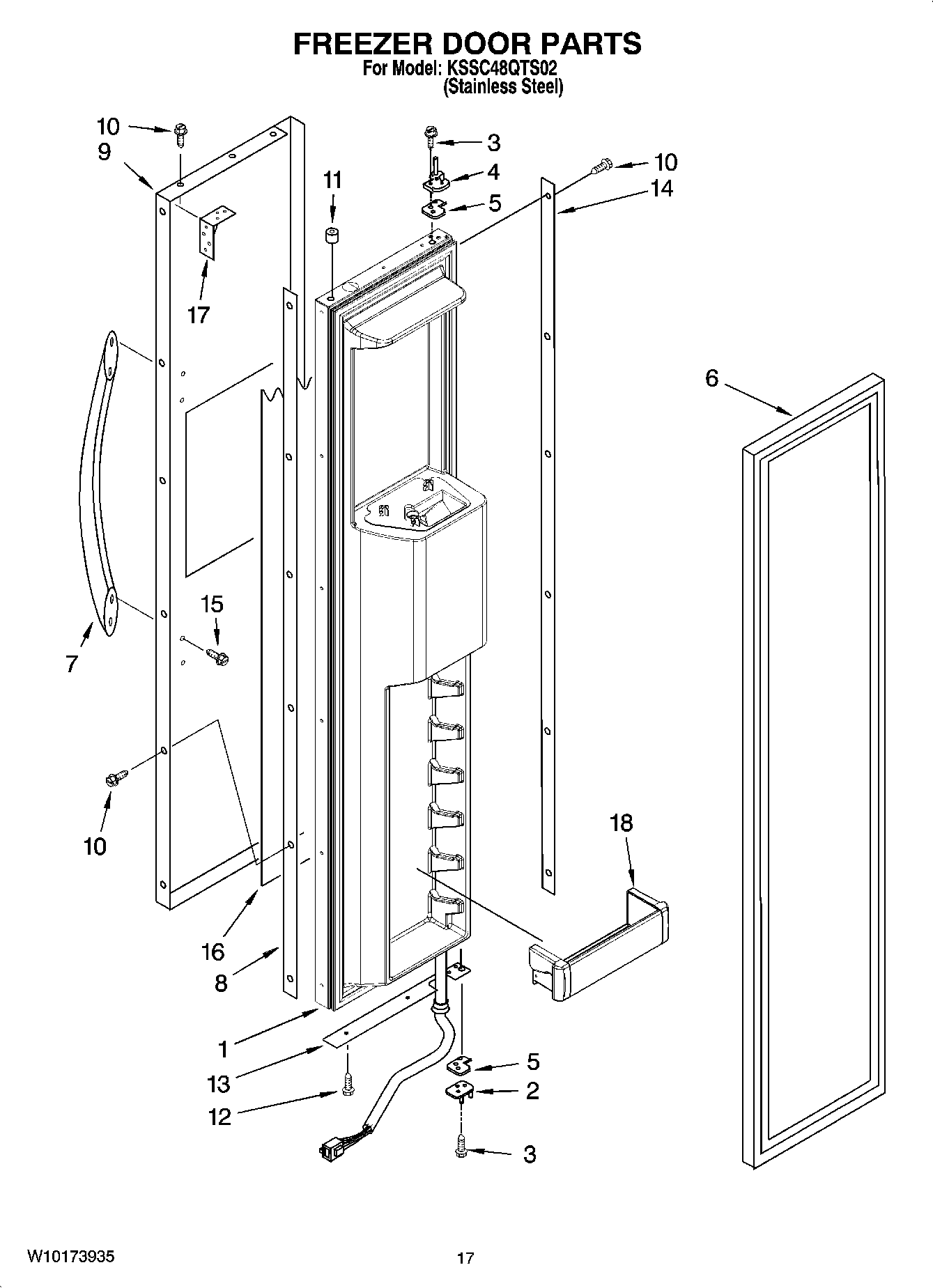

KSSC48QTS02 11 – FREEZER DOOR PARTS

KSSC48QTS02 11 – FREEZER DOOR PARTS

Written by

in

KSSC48QTS02 11 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES No.14) (UNIVERSAL SILVER)
2HINGE-DOOR
3W11474472 Whirlpool Screw
4W11724512 Whirlpool Door Hinge
5W11673500 Whirlpool Door Hinge
6WP2266903 Whirlpool Refrigerator Door Gasket
7WP2316868 Whirlpool Refrigerator Handle
8Spacer, Door (Handle Side)
9SKIN, DOOR
10WP8281250 Whirlpool Refrigerator Screw
112005433 Whirlpool Refrigerator Spacer
12W10759522 Whirlpool Screw
13SPACER, DOOR SKIN BOTTOM
14Spacer, Hinge Side
15WP308544 Whirlpool Screw
16Filler, Door (Top)
16Filler, Door (Bottom)
17BRACE, DOOR CORNER
18W11590561 Whirlpool Refrigerator Cantilever Bin
