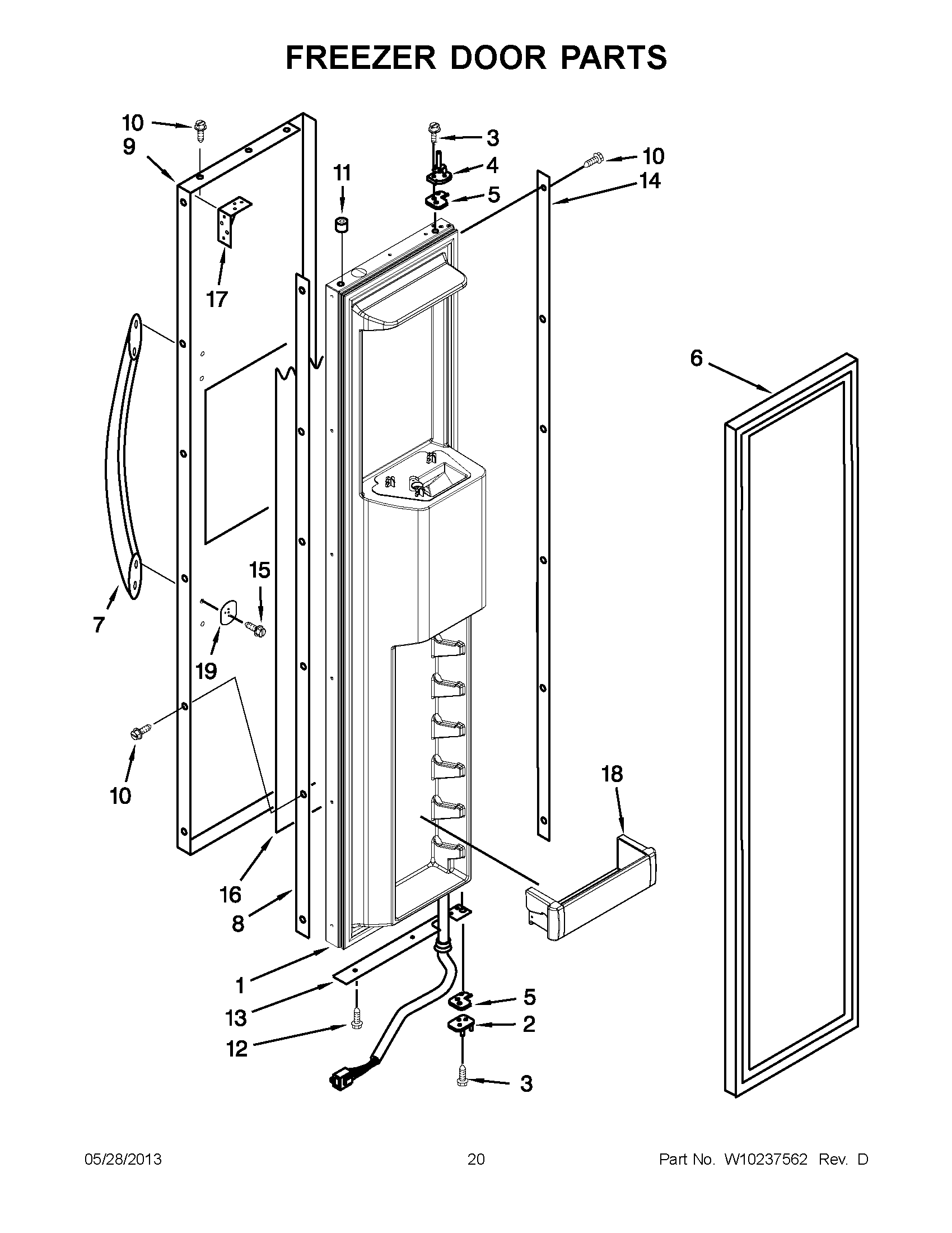

KSSC48QTS03 10 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES No.7)
2	HINGE-DOOR
3	W11474472 Whirlpool Screw
4	W11724512 Whirlpool Door Hinge
6	WP2266901 Whirlpool Door Gasket
7	WP2316868 Whirlpool Refrigerator Handle
8	Spacer, Door (Handle Side)
9	SKIN, DOOR
10	WP8281250 Whirlpool Refrigerator Screw
11	2005433 Whirlpool Refrigerator Spacer
12	W10759522 Whirlpool Screw
13	SPACER, DOOR SKIN BOTTOM
14	SPACER, DOOR-SKIN (HINGE SIDE)
15	WP308544 Whirlpool Screw
16	Filler, Door (Top)
16	Filler, Door (Bottom)
17	W11673500 Whirlpool Door Hinge
18	W11590561 Whirlpool Refrigerator Cantilever Bin
19	W10127710 Whirlpool Refrigerator Plate
