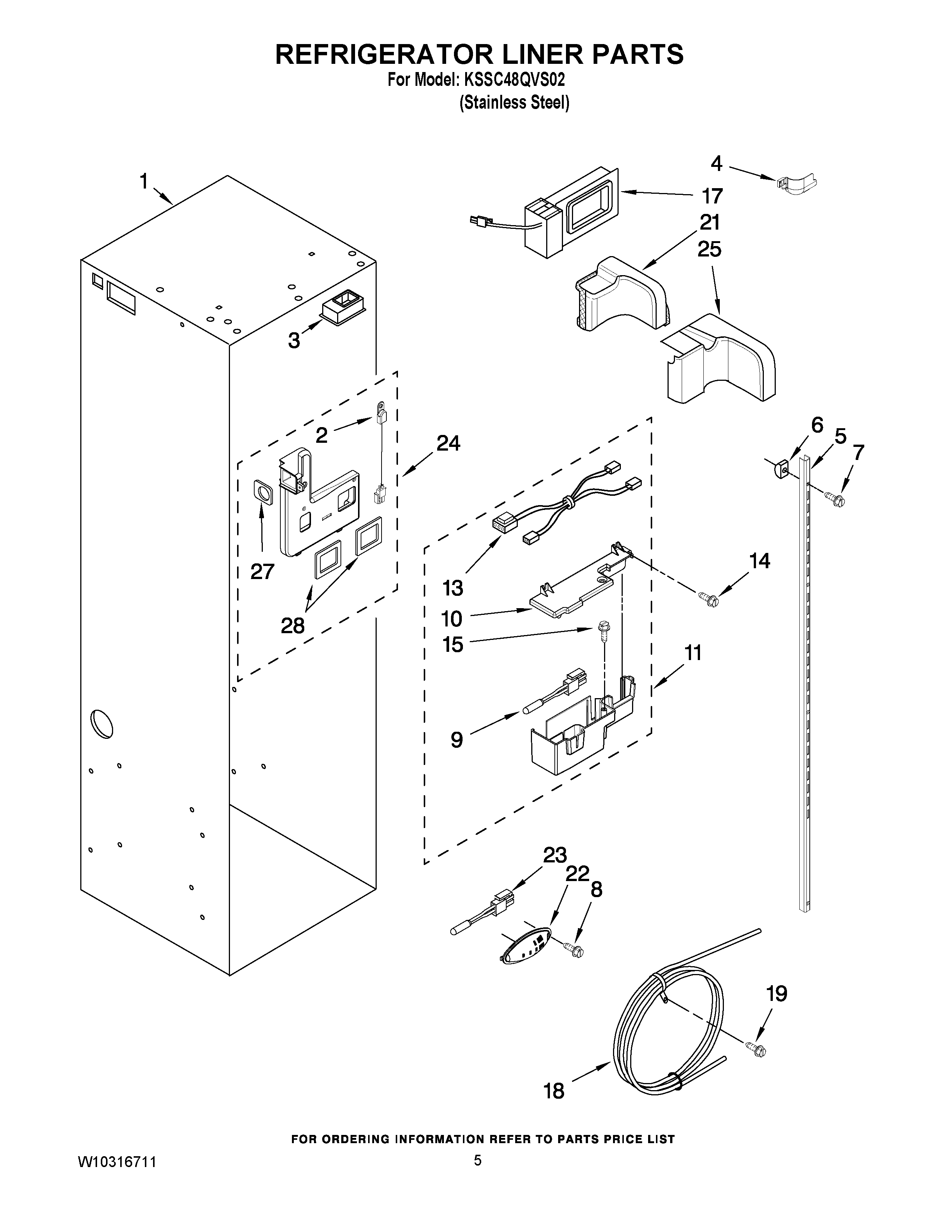

KSSC48QVS02 04 – REFRIGERATOR LINER PARTS

KSSC48QVS02 04 – REFRIGERATOR LINER PARTS

Written by

in

KSSC48QVS02 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2306010 Whirlpool Refrigerator Thermistor
32208970 Whirlpool Refrigerator Air Duct
42003577 Whirlpool Refrigerator Guard
5WP2259077 Whirlpool Ladder Assembly
6520965 Whirlpool Refrigerator Support
72006475 Whirlpool Refrigerator Screw
8WP488729 Whirlpool Refrigerator Door Screw
9WP2302937 Whirlpool Refrigerator Thermistor
102302986 Whirlpool Refrigerator Cover
11BAFFLE CONTROL ASSEMBLY
132310205 Whirlpool Wire Jumper
14Screw, 8 x 1-1/4 (3)
15W11624204 Whirlpool Screw
17WP2216112 Whirlpool Damper Control Assembly
18W10645131 Whirlpool Refrigerator Reservoir
19Screw (2)
21WP2309222 Whirlpool Refrigerator Diffuser
22WP2317844 Whirlpool Refrigerator Cover
23WP2188820 Whirlpool Refrigerator Thermistor
24W10475010 Whirlpool Refrigerator Spacer
252309087 Whirlpool Refrigerator Cover
27Seal, Air Duct (Round Hole)
282259398 Whirlpool Refrigerator Seal
