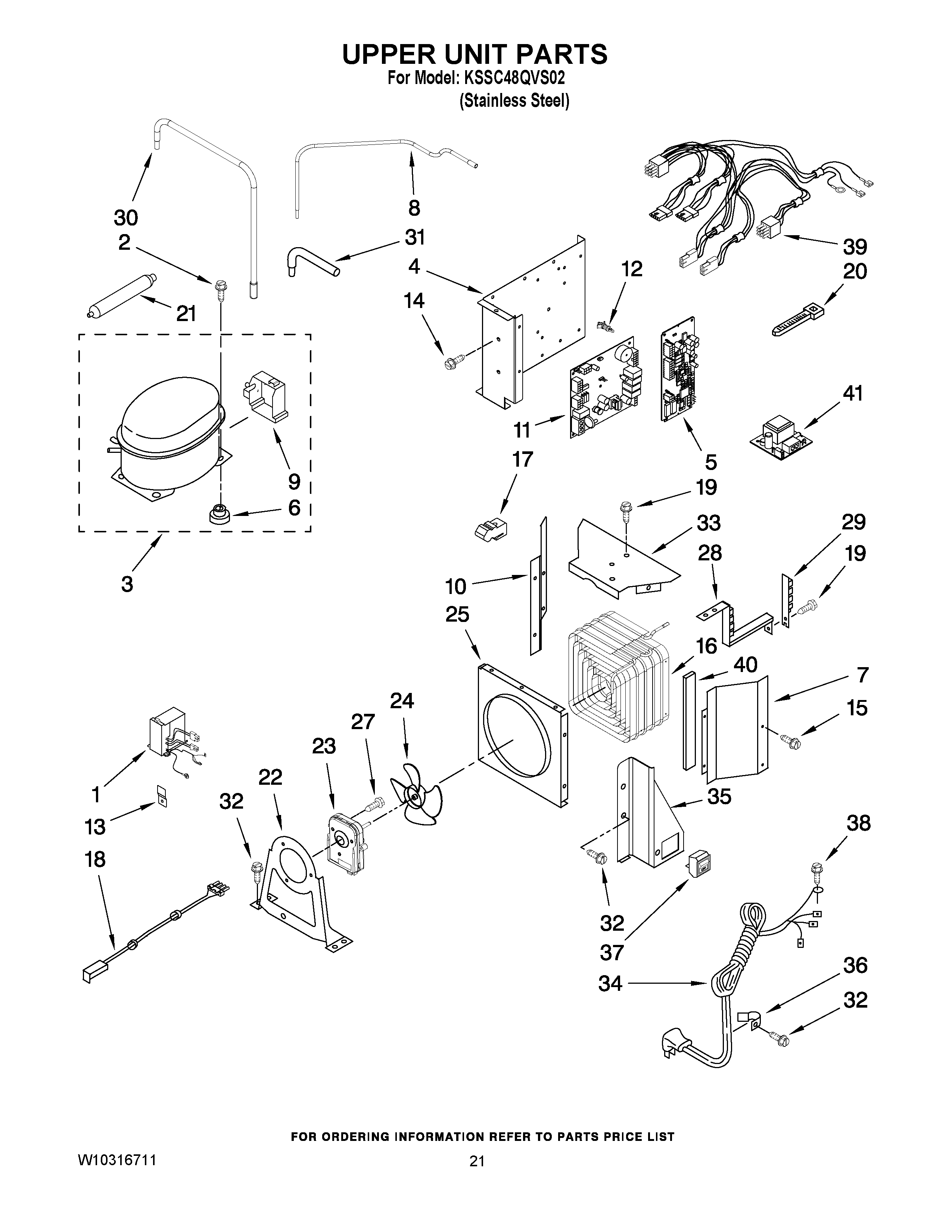

KSSC48QVS02 13 – UPPER UNIT PARTS

KSSC48QVS02 13 – UPPER UNIT PARTS

Written by

in

KSSC48QVS02 13 – UPPER UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
NI	VALVE, ACCESS (5/8“)
1	W10629033 Whirlpool Refrigerator Inverter Control Box
3	W10841139 Whirlpool Refrigerator Compressor
4	Housing, Control Board
5	WP2318054 Whirlpool Refrigerator Electronic Control Board + Core
6	876811 Whirlpool Grommet
7	Support, Condenser (Right)
8	W10197004 Whirlpool Refrigerator Tube
9	2215676 Whirlpool Refrigerator Terminal Cover
10	Support, Condenser (Left)
11	W10219462 Whirlpool Refrigerator Electronic Control Board
12	WP2203075 Whirlpool Refrigerator Spacer
13	2256328 Whirlpool Bracket Assembly
15	WP489069 Whirlpool Compactor Screw
16	2307998 Whirlpool Refrigerator Condenser
17	2309431 Whirlpool Grommet
18	2310207 Whirlpool Wire Harness
19	WP489399 Whirlpool Refrigerator Screw
20	WPW10339879 Whirlpool Wire Tie
21	WPW10143759 Whirlpool Dryer Filter
22	WPW10136614 Whirlpool Refrigerator Bracket
23	W11578915 Whirlpool Condenser Motor
24	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
25	Orifice, Fan
27	WP8533993 Whirlpool Refrigerator Screw
28	BRACKET, VIBRATION (CONDENSER)
29	ARM, VIBRATION (CONDENSER)
30	2307566 Whirlpool Refrigerator Tube
31	W10528578 Whirlpool Refrigerator Tube
32	W11624204 Whirlpool Screw
33	Cover, Condenser
34	2310196 Whirlpool Refrigerator Power Cord
35	W10185556 Whirlpool Refrigerator Bracket
36	549193 Whirlpool Refrigerator Power Clamp
37	WP2266802 Whirlpool Refrigerator Switch
38	WP489128 Whirlpool Refrigerator Screw
39	W10178860 Whirlpool Refrigerator Wire Harness
40	2309432 Whirlpool Seal Strip
41	WP2259350 Whirlpool Refrigerator Electronic Control Board
