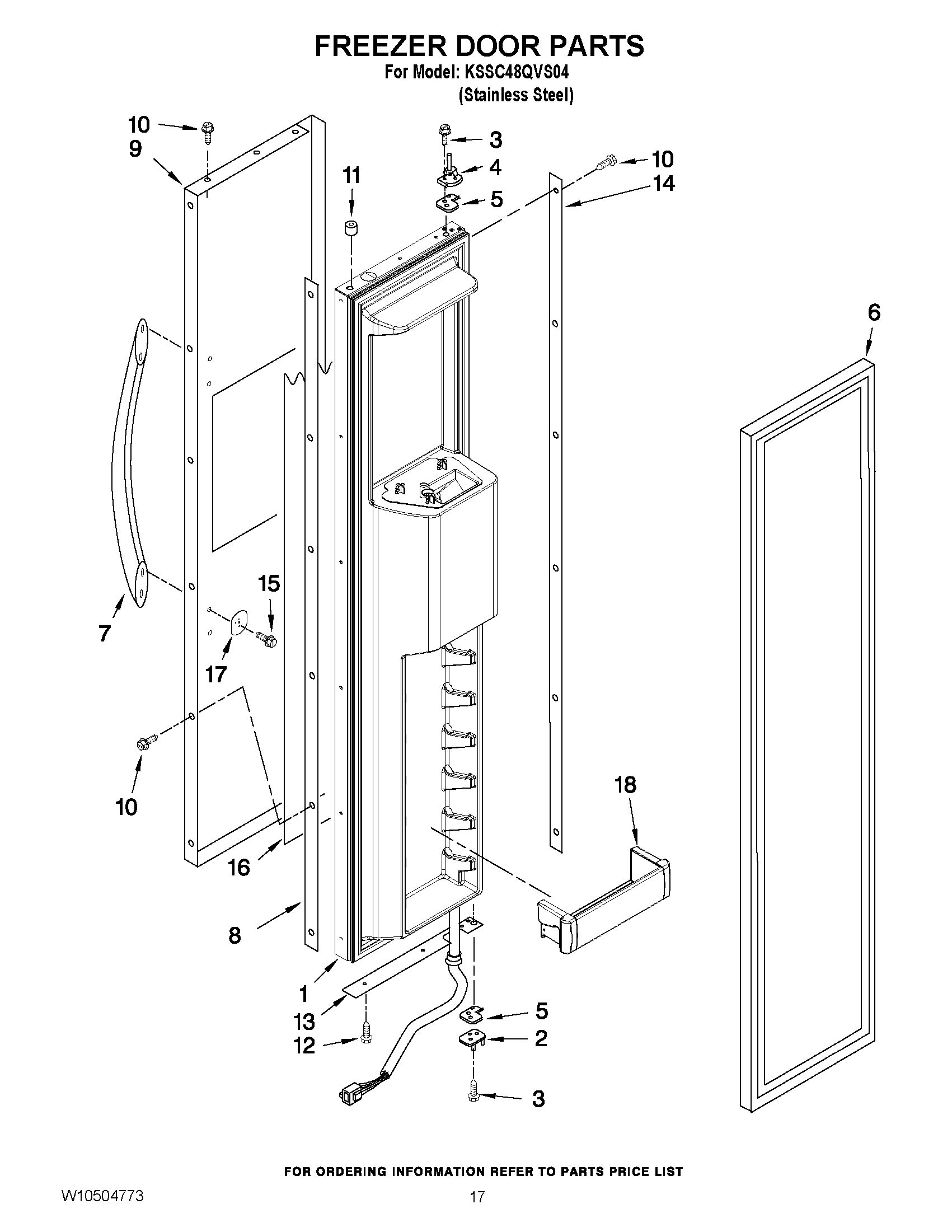

KSSC48QVS04 11 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES No.7) (UNIVERSAL SILVER)
2	HINGE-DOOR
3	W11474472 Whirlpool Screw
4	W11724512 Whirlpool Door Hinge
5	W11673500 Whirlpool Door Hinge
6	WP2266901 Whirlpool Door Gasket
7	WP2316868 Whirlpool Refrigerator Handle
8	Spacer, Door (Handle Side)
9	SKIN, DOOR
10	WP8281250 Whirlpool Refrigerator Screw
11	2005433 Whirlpool Refrigerator Spacer
12	W10759522 Whirlpool Screw
13	SPACER, DOOR-SKIN (BOTTOM)
14	SPACER, DOOR-SKIN (HINGE SIDE)
15	WP308544 Whirlpool Screw
16	Filler, Door (Top)
16	Filler, Door (Bottom)
17	W10127710 Whirlpool Refrigerator Plate
18	W11590561 Whirlpool Refrigerator Cantilever Bin
