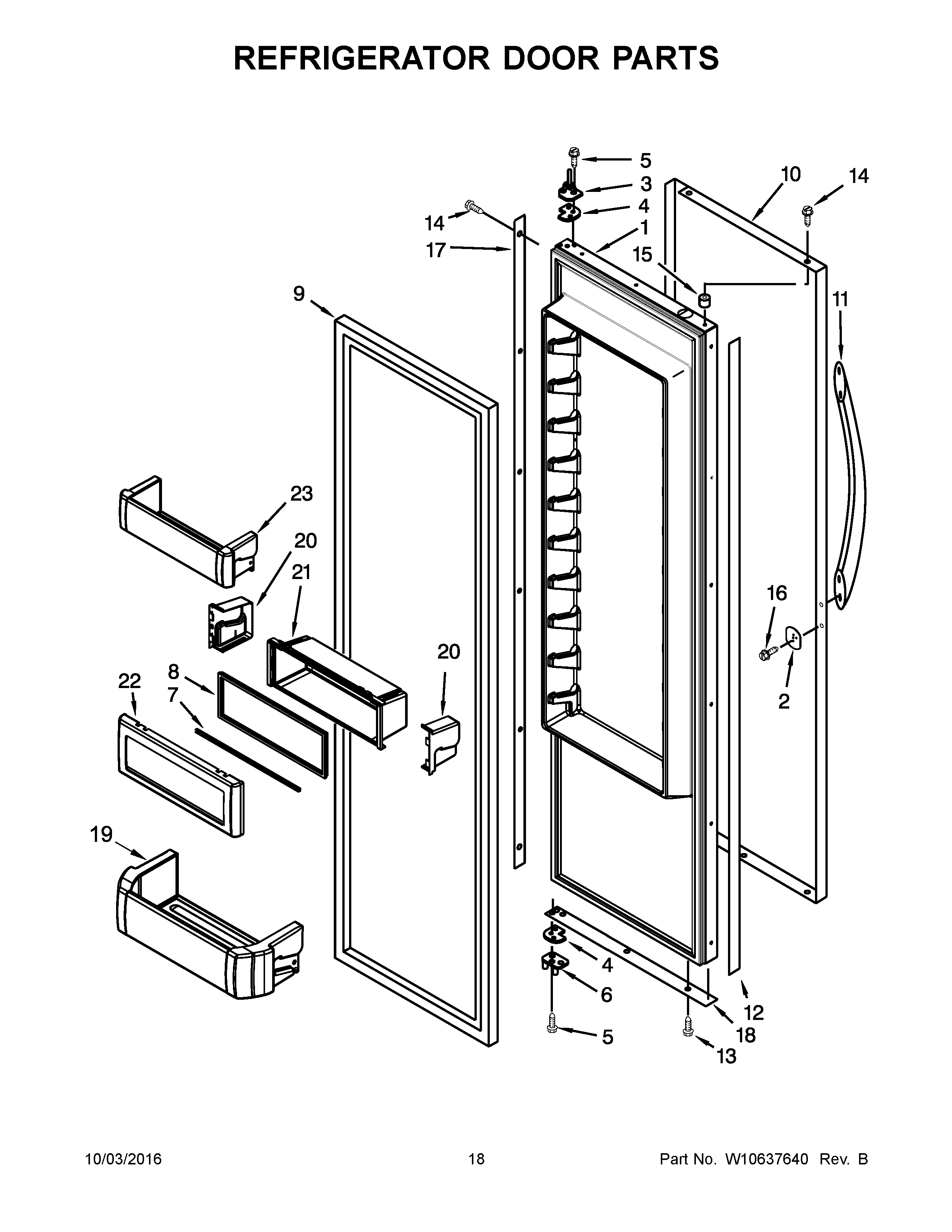

KSSC48QVS06 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW10193491 Whirlpool Refrigerator FIP Door SS
2	W10127710 Whirlpool Refrigerator Plate
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	2302878 Whirlpool Refrigerator Door Hinge
7	W11348580 Whirlpool Refrigerator Bin
9	WP2266903 Whirlpool Refrigerator Door Gasket
10	SKIN, DOOR (STAINLESS)
11	WP2316868 Whirlpool Refrigerator Handle
12	Spacer, Door (Handle Side)
13	W10759522 Whirlpool Screw
14	WP8281250 Whirlpool Refrigerator Screw
15	2005433 Whirlpool Refrigerator Spacer
16	WP308544 Whirlpool Screw
17	SPACER, DOOR-SKIN (HINGE SIDE)
18	WP2257343 Whirlpool Spacer Assembly
19	W10323748 Whirlpool Refrigerator Cantilever Bin
20	W10769395 Whirlpool Refrigerator Endcap Trim
20A	W10768112 Whirlpool Refrigerator End Cap Trim
23	BIN-CNTLVR
