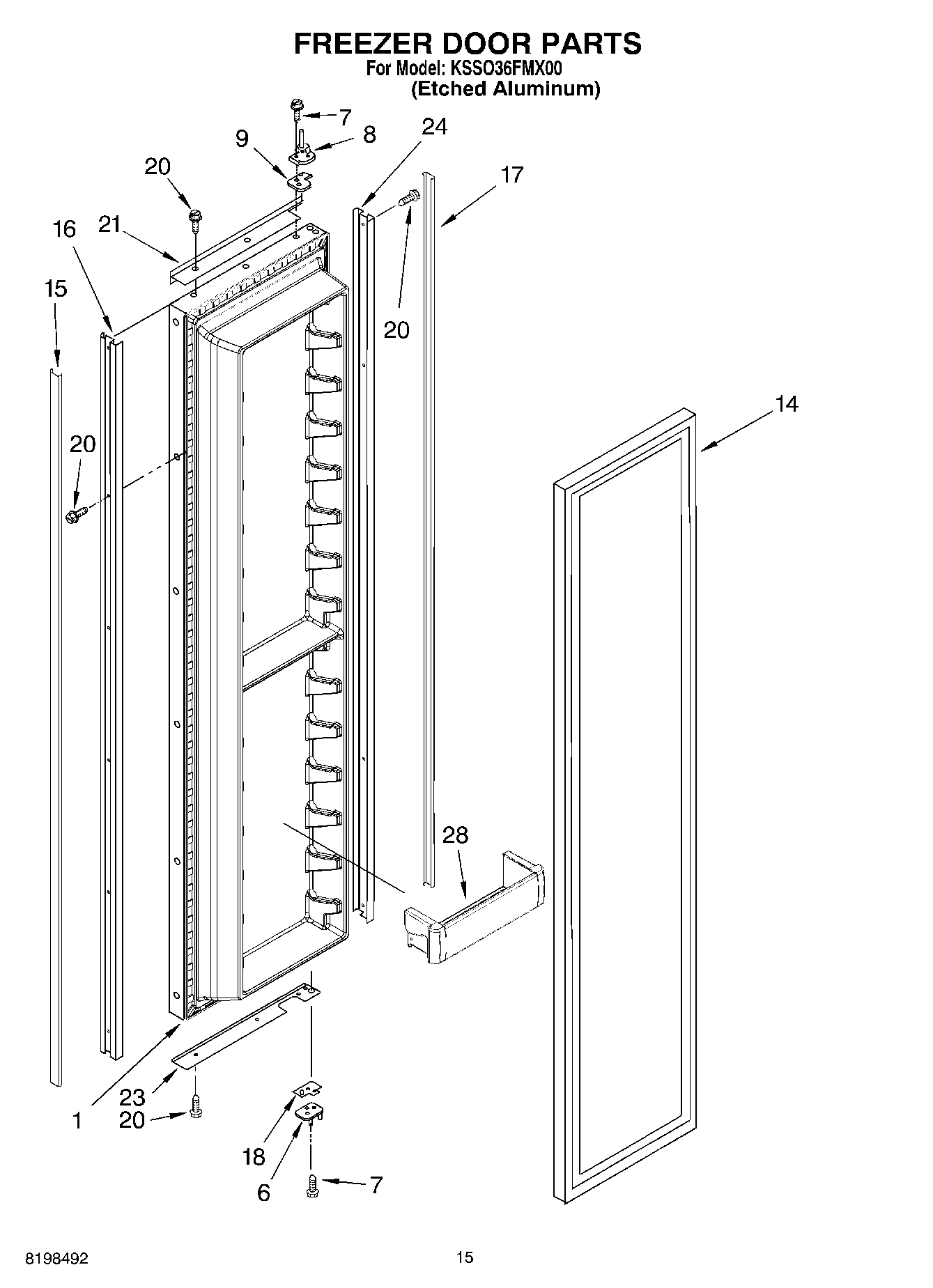

KSSO36FMX00 10 – FREEZER DOOR PARTS

KSSO36FMX00 10 – FREEZER DOOR PARTS

Written by

in

KSSO36FMX00 10 – FREEZER DOOR PARTS

Products

PositionProduct
1LW10193485 Whirlpool Refrigerator FIP Stainless Steel Door
6HINGE-DOOR
7W11474472 Whirlpool Screw
8W11724512 Whirlpool Door Hinge
9Spacer-Hinge, Top
14W11624976 Whirlpool Refrigerator FIP Gasket
15Cover, Screw
16Trim, Door (Handle Side) (Etched Aluminum)
17Cover, Screw (Handle Side) (Etched Aluminum)
18Door Spacer, Bottom
20WP8281250 Whirlpool Refrigerator Screw
21Trim, Door (Top) (Etched Aluminum)
23Trim (Bottom) (Etched Aluminum)
24Trim-Door, (Hinge Side)
28W10323601 Whirlpool Refrigerator Cantilever Bin
28F.C. (6)
