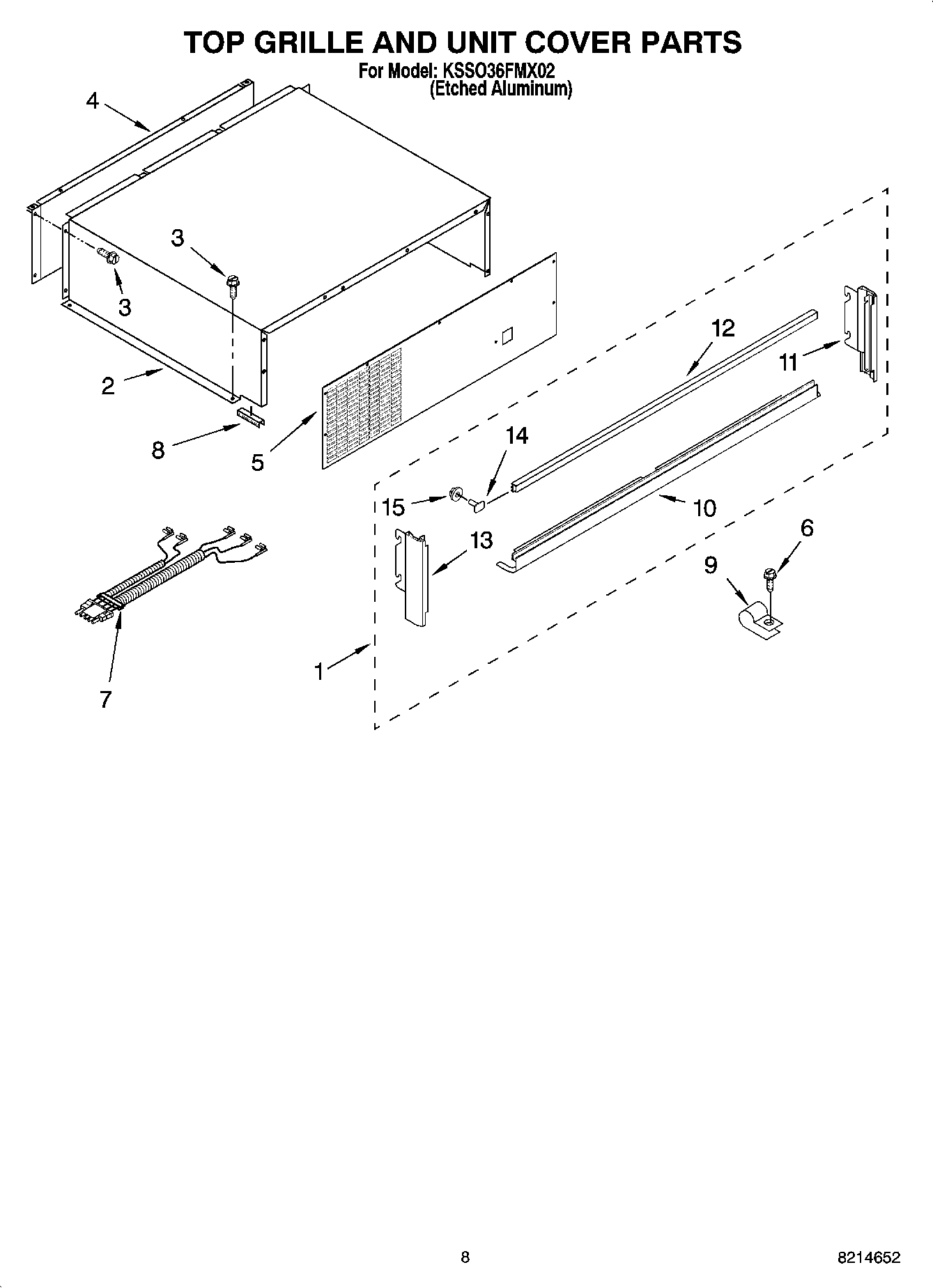

KSSO36FMX02 06 – TOP GRILLE AND UNIT COVER PARTS

KSSO36FMX02 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSO36FMX02 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Top Grille Assembly (Etched Aluminum)
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Front, Unit Cover
6WP965173 Whirlpool Dishwasher Screw
7Wire Assembly RC/FC Light Switch
82215910 Whirlpool Refrigerator Grommet
9489348 Whirlpool Refrigerator Tube Clamp
10Trim-Grille, Bottom (Etched Aluminum)
11Trim-Grille, Right Side (Etched Aluminum)
12Trim-Grille, Top (Etched Aluminum)
13Trim-Grille, Left Side (Etched Aluminum)
14WP488130 Whirlpool Air Conditioner Nut
152003347 Whirlpool Screw
