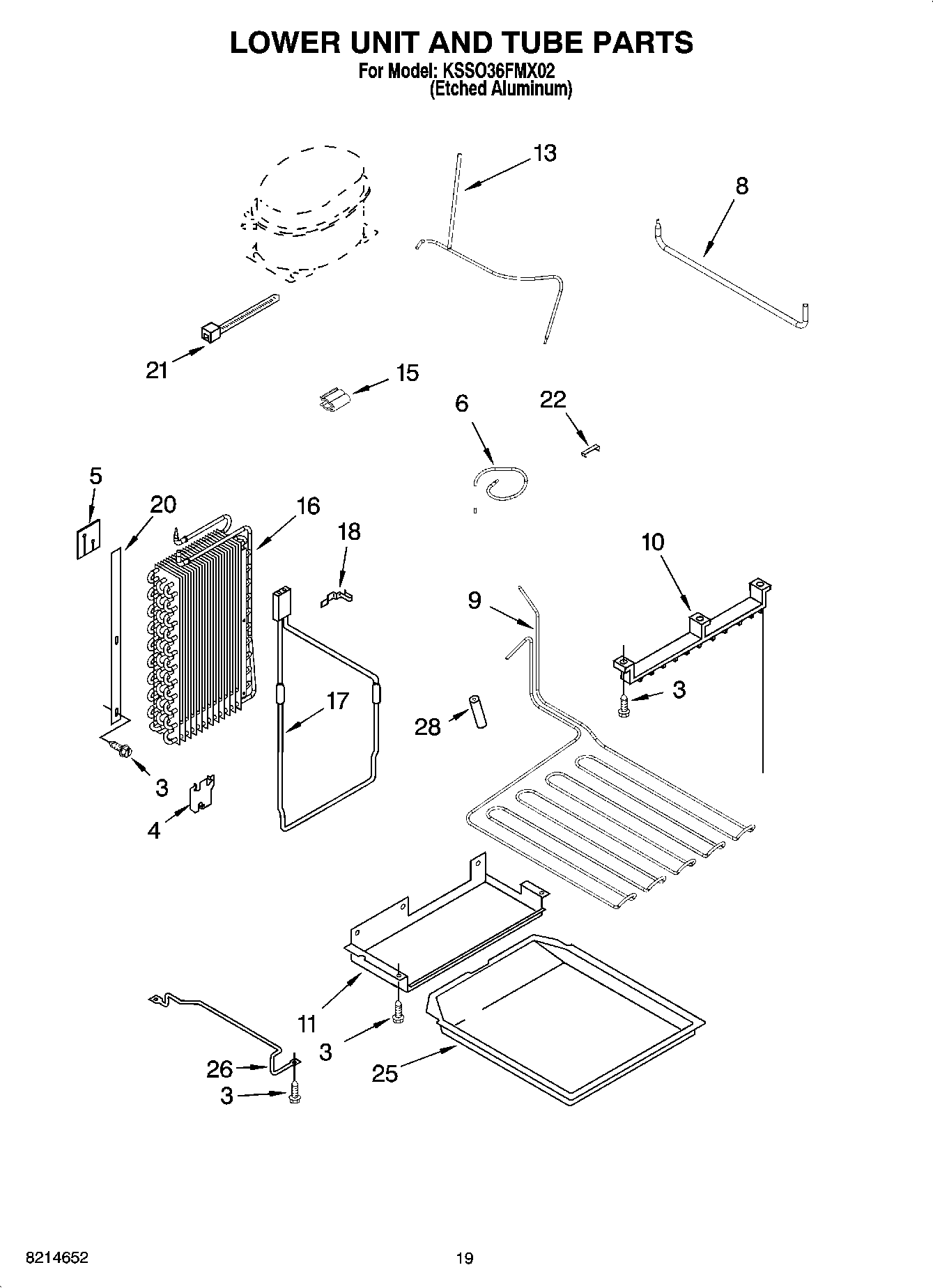

KSSO36FMX02 12 – LOWER UNIT AND TUBE PARTS
Written by
in
KSSO36FMX02 12 – LOWER UNIT AND TUBE PARTS
Products
Position
Product
3
W11624204 Whirlpool Screw
4
Bracket
5
Side Support
6
Suction Tube
8
Tube, Transition (Drier/Restrictor)
9
Heater, Drain Pan
10
Hanger, Heater
11
Shield, Drain Pan
13
Tube, Discharge
15
9791833 Whirlpool Refrigerator Clip
16
WP2306092 Whirlpool Refrigerator Evaporator
17
Heater, Defrost
18
1113048 Whirlpool Refrigerator Clamp
20
Gasket, Evaporator
21
Wire Tie
22
W10169509 Whirlpool Refrigerator Clip
25
WP2001264 Whirlpool Refrigerator Drip Pan
26
Bracket, Drain Pan (Right)
26
Bracket, Drain Pan (Left)
28
2215648 Whirlpool Refrigerator Dampener
←
