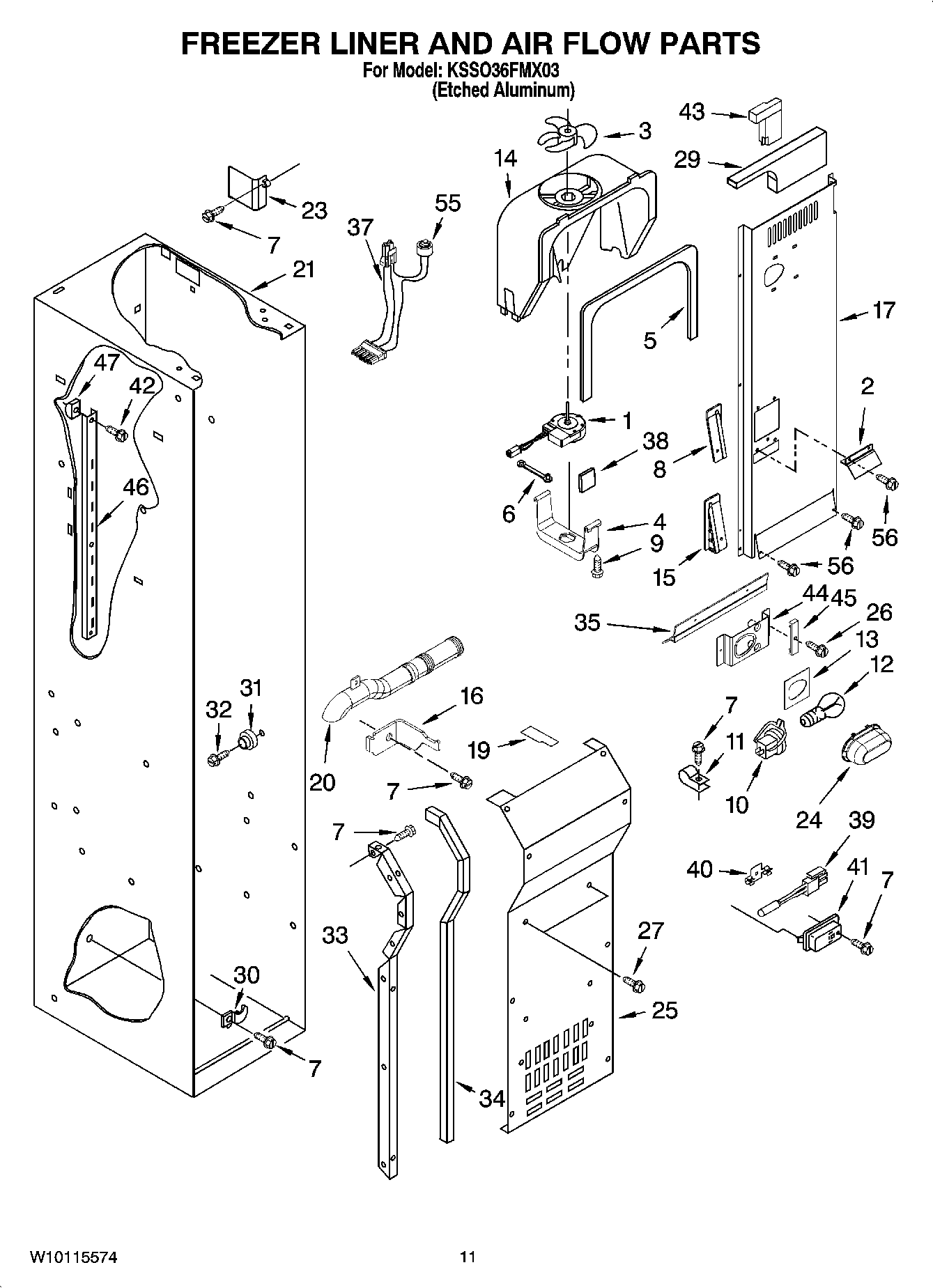

KSSO36FMX03 08 – FREEZER LINER AND AIR FLOW PARTS

Products

Position	Product
1	Motor, Fan
2	2266801 Whirlpool Refrigerator Deflector
3	WP2169142 Whirlpool Fan Blade
4	8201663 Whirlpool Refrigerator Primary Fan Blade
5	WP2302817 Whirlpool Refrigerator Gasket
6	W11669856 Whirlpool Grommet
7	W11624204 Whirlpool Screw
8	2259464 Whirlpool Refrigerator Wedge
9	WP489128 Whirlpool Refrigerator Screw
10	4387478 Whirlpool Refrigerator Light Socket
11	Clamp, Tube
12	RANGE ONLY 40W 120V APPL BULB
13	Seal-Light, Socket
14	W11254898 Whirlpool Refrigerator Scroll Fan
15	2259465 Whirlpool Refrigerator Wedge
16	Bracket, Vent Tube
17	Air Duct
19	8201798 Whirlpool Refrigerator Fan Block
19	2209066 Whirlpool Refrigerator Fan Block
20	Tube, Vent
21	Liner (Not A Serviceable Part)
23	2259025 Whirlpool Refrigerator Air Cover
24	Light Shield
25	Cover, Evaporator
26	WP8281163 Whirlpool Refrigerator Screw
27	WP488729 Whirlpool Refrigerator Door Screw
29	Deflector, Air Duct
30	1112260 Whirlpool EV Support
31	WP2196483 Whirlpool Refrigerator Shelf Stud
32	WP3400806 Whirlpool Screw
33	2259355 Whirlpool Refrigerator Evaporator Rail
33	Evaporator, Cover Rail (Left Side)
34	2220904 Whirlpool Refrigerator Gasket
35	Support, Air Duct
37	Harness, Evap Fan (Includes Item 55)
38	W11553819 Whirlpool Refrigerator Insulation
39	WP2188820 Whirlpool Refrigerator Thermistor
40	Clip, Thermistor
41	1116793 Whirlpool Refrigerator Cover
42	2006475 Whirlpool Refrigerator Screw
44	Bracket, Light
45	Spacer, Light Bracket
46	WP2259032 Whirlpool Ladder
47	Support, Screw
55	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
56	WPW10142283 Whirlpool Refrigerator Screw
