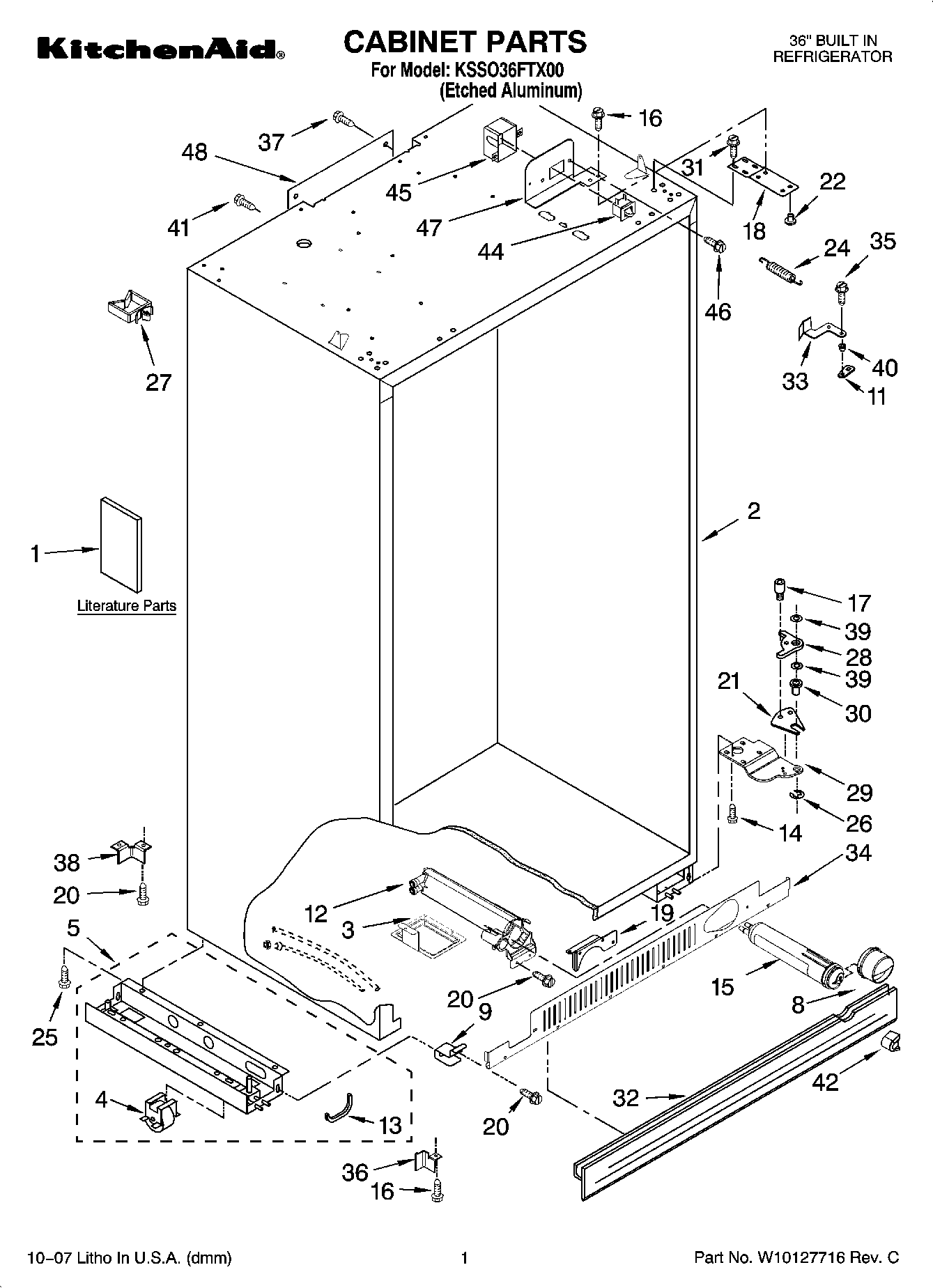

KSSO36FTX00 01 – CABINET PARTS

KSSO36FTX00 01 – CABINET PARTS

KSSO36FTX00 01 – CABINET PARTS

Products

PositionProduct
1Service & Wiring Sheet
1Energy Guide
1Use & Care Guide
1Main Control Service Sheet
1Icemaker and Ingredient Care Center Service Sheet
1Installation Instructions
2Cabinet, (Not A Serviceable Part)
32318189 Whirlpool Refrigerator Drip Pan
4WPW10138054 Whirlpool Refrigerator Cabinet Roller
5W10860448 Whirlpool Refrigerator Support
5W10860229 Whirlpool Refrigerator Support
8WP2260518B Whirlpool Water Filter Cap
9W10839844 Whirlpool Refrigerator Bracket
11Cam-Closer, Door
12WPW10121140 Whirlpool Refrigerator Housing
132307584 Whirlpool Refrigerator Grommet
14Screw
15FILTER 3-SINGLE TEAL
16WP489399 Whirlpool Refrigerator Screw
17SCREW
182252291 Whirlpool Refrigerator Door Hinge
182252292 Whirlpool Refrigerator Door Hinge
19W10674648 Whirlpool Refrigerator Bracket
20WP489464 Whirlpool Refrigerator Screw
21WP2004994 Whirlpool Refrigerator Hinge Bushing
22Bushing
24WP2004517 Whirlpool Refrigerator Spring
25W11624204 Whirlpool Screw
26WP489236 Whirlpool Refrigerator Ring
27CLIP, TUBE
28Gap, Cover Assembly (Bottom)
292309472 Whirlpool Refrigerator Hinge
292309471 Whirlpool Refrigerator Door Hinge
30WP2302876 Whirlpool Refrigerator Hinge Bushing
31W11189635 Whirlpool Refrigerator Screw
32WP2209024B Whirlpool Refrigerator Front Grille
33W11416733 Whirlpool Refrigerator Extension
33W11418227 Whirlpool Refrigerator Extension
342325184B Whirlpool Refrigerator Front Grille
35Screw
362006616 Whirlpool Refrigerator Bracket
362006556 Whirlpool Refrigerator Bracket
37WP489069 Whirlpool Compactor Screw
382006617 Whirlpool Refrigerator Bracket
39WP2006346 Whirlpool Refrigerator Washer
40WP2316859 Whirlpool Refrigerator Bushing
41WP1163283 Whirlpool Air Conditioner Screw
42WP2260503B Whirlpool Refrigerator Button
44W11457217 Whirlpool Refrigerator Rocker Switch Combination
44W11384469 Whirlpool Door Switch
452215938 Whirlpool Refrigerator Switch Cover
46WP965173 Whirlpool Dishwasher Screw
472221096 Whirlpool Refrigerator Bracket
472221097 Whirlpool Refrigerator Bracket
482215612 Whirlpool Refrigerator Duct Cover
