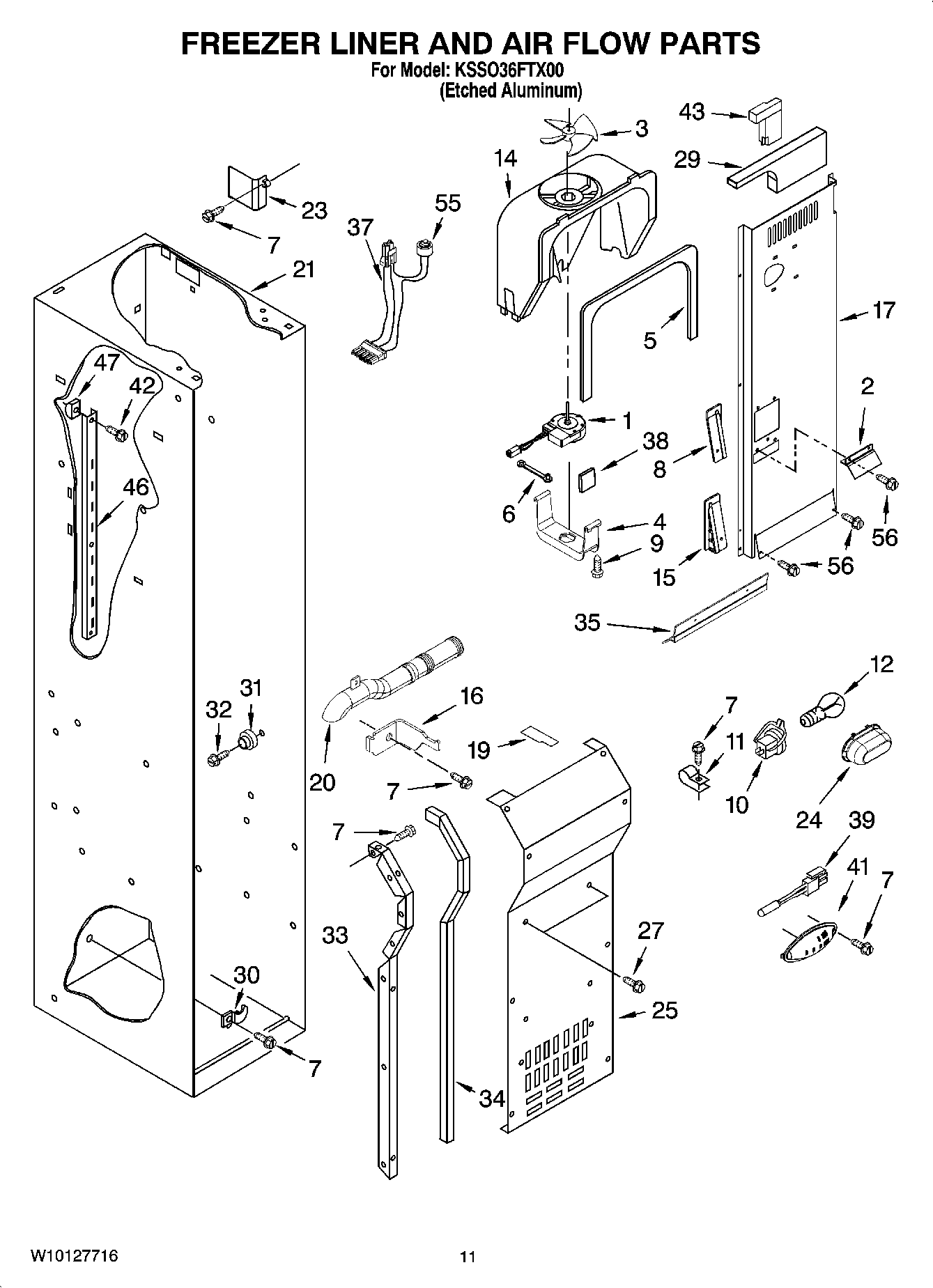

KSSO36FTX00 08 – FREEZER LINER AND AIR FLOW PARTS

KSSO36FTX00 08 – FREEZER LINER AND AIR FLOW PARTS

Written by

in

KSSO36FTX00 08 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1Motor, Fan
22266801 Whirlpool Refrigerator Deflector
3WP2169142 Whirlpool Fan Blade
48201663 Whirlpool Refrigerator Primary Fan Blade
5WP2302817 Whirlpool Refrigerator Gasket
6W11669856 Whirlpool Grommet
7W11624204 Whirlpool Screw
82259464 Whirlpool Refrigerator Wedge
9WP489128 Whirlpool Refrigerator Screw
10WPW10191429 Whirlpool Refrigerator Socket
11Clamp, Tube
12WPA3073101 Whirlpool Light Bulb
14W11254898 Whirlpool Refrigerator Scroll Fan
152259465 Whirlpool Refrigerator Wedge
16Bracket, Vent Tube
17Air Duct
192209066 Whirlpool Refrigerator Fan Block
198201798 Whirlpool Refrigerator Fan Block
20Tube, Vent
21Liner (Not A Serviceable Part)
232259025 Whirlpool Refrigerator Air Cover
24Light Shield
25Cover, Evaporator
27WP488729 Whirlpool Refrigerator Door Screw
29Deflector, Air Duct
301112260 Whirlpool EV Support
31WP2196483 Whirlpool Refrigerator Shelf Stud
32WP3400806 Whirlpool Screw
332259355 Whirlpool Refrigerator Evaporator Rail
33Evaporator, Cover Rail (Left Side)
342220904 Whirlpool Refrigerator Gasket
35Support, Air Duct
37Harness, Evap Fan (Includes Item 42)
38W11553819 Whirlpool Refrigerator Insulation
39WP2188820 Whirlpool Refrigerator Thermistor
41WP2317844 Whirlpool Refrigerator Cover
422006475 Whirlpool Refrigerator Screw
46WP2259032 Whirlpool Ladder
47Support, Screw
55WPW10225581 Whirlpool Refrigerator Defrost Thermostat
56WPW10142283 Whirlpool Refrigerator Screw
