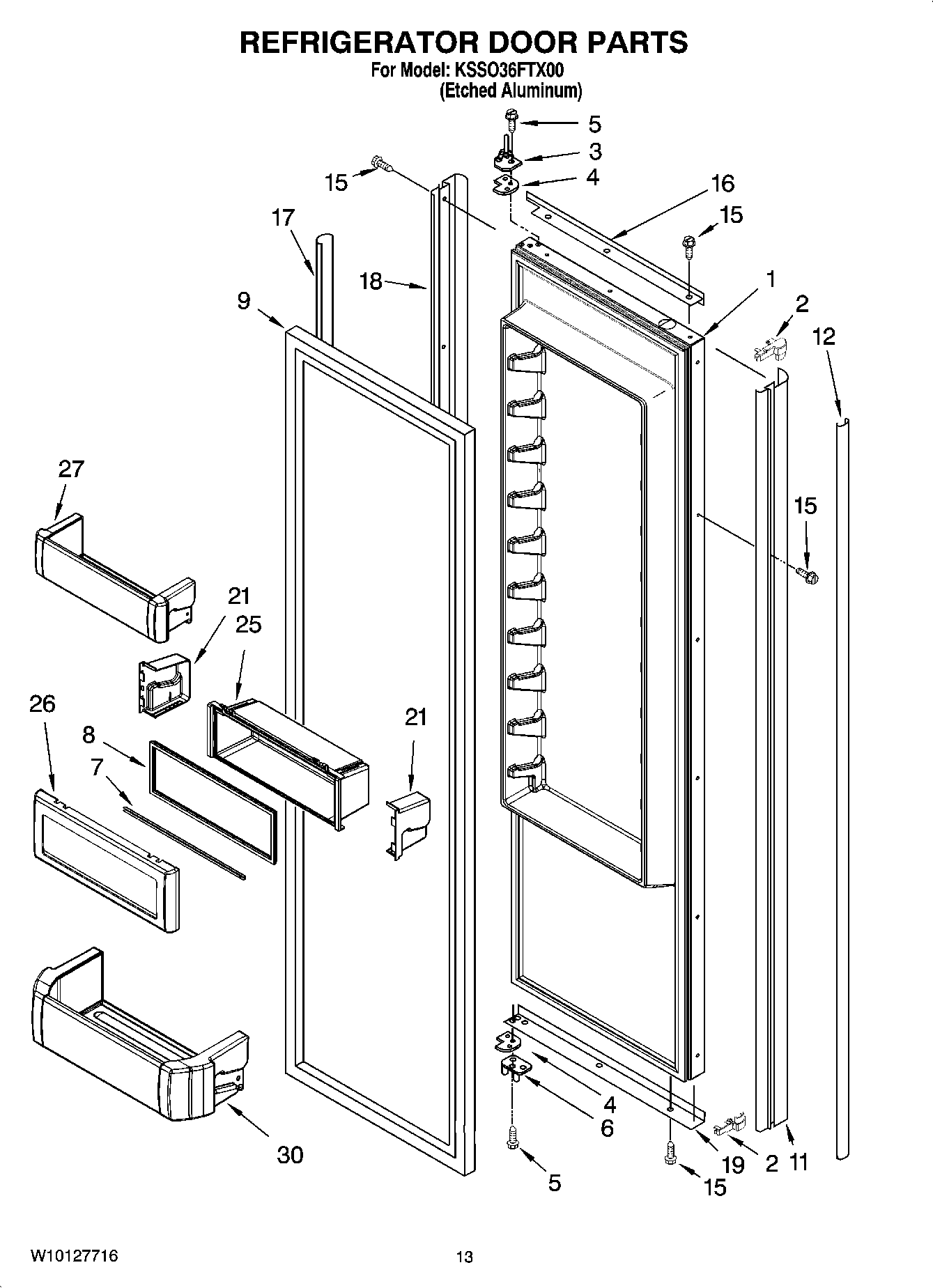

KSSO36FTX00 09 – REFRIGERATOR DOOR PARTS

KSSO36FTX00 09 – REFRIGERATOR DOOR PARTS

Written by

in

KSSO36FTX00 09 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10193489 Whirlpool Refrigerator Black Foam In Place Door
22207457 Whirlpool Refrigerator Door Trim
3Hinge Assy, Top (Chrome)
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
62252293 Whirlpool Refrigerator Door Hinge
72222795 Whirlpool Refrigerator Rail
8WP2222981 Whirlpool Refrigerator Gasket
9WP2266901 Whirlpool Door Gasket
112309497S Whirlpool Refrigerator Door Trim
122314003S Whirlpool Refrigerator Trim Cover
15WP8281250 Whirlpool Refrigerator Screw
162309485S Whirlpool Refrigerator Door Trim
172259448S Whirlpool Refrigerator Trim Cover
182309498S Whirlpool Refrigerator Door Trim
192309491S Whirlpool Refrigerator Door Trim
21WPW10323173 Whirlpool Refrigerator Retainer End Cap
21WPW10323172 Whirlpool Refrigerator Retainer End Cap
25WPW10323035 Whirlpool Refrigerator Cantilever Bin
26WPW10131132 Whirlpool Refrigerator Door Compressor
27W10323598 Whirlpool Refrigerator Cantilever Bin
30W10323746 Whirlpool Refrigerator Cantilever Bin
