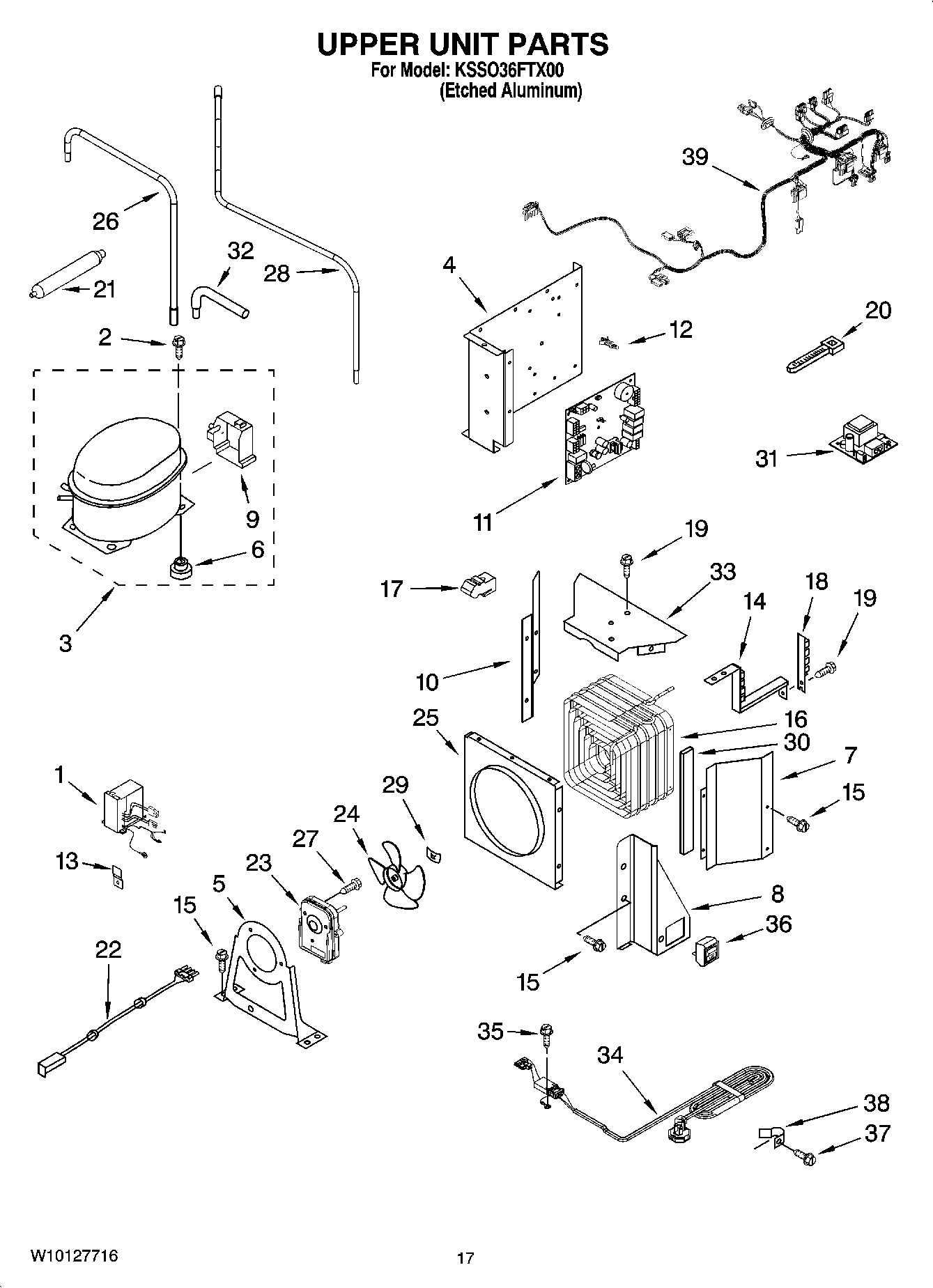

KSSO36FTX00 11 – UPPER UNIT PARTS

KSSO36FTX00 11 – UPPER UNIT PARTS

Written by

in

KSSO36FTX00 11 – UPPER UNIT PARTS

Products

Position	Product
	WP978025 Whirlpool Refrigerator Valve
	VALVE, ACCESS (1/2“)
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	978030 Whirlpool Refrigerator Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	REFRIGERANT CHARGE 6.25 oz. (R-134A)
	VALVE, ACCESS (5/8“)
1	W10629033 Whirlpool Refrigerator Inverter Control Box
3	W10841139 Whirlpool Refrigerator Compressor
4	Housing, Control Board
5	Bracket, Fan Motor
6	876811 Whirlpool Grommet
7	Support, Condenser (Right)
8	W10185556 Whirlpool Refrigerator Bracket
9	2215676 Whirlpool Refrigerator Terminal Cover
10	Support, Condenser (Left)
11	W10219462 Whirlpool Refrigerator Electronic Control Board
12	WP2203075 Whirlpool Refrigerator Spacer
13	2256328 Whirlpool Bracket Assembly
14	BRACKET, VIBRATION (CONDENSER)
15	WP489069 Whirlpool Compactor Screw
16	2307998 Whirlpool Refrigerator Condenser
17	2309431 Whirlpool Grommet
18	ARM, VIBRATION (CONDENSER)
19	WP489399 Whirlpool Refrigerator Screw
20	WPW10339879 Whirlpool Wire Tie
21	WPW10143759 Whirlpool Dryer Filter
22	2310207 Whirlpool Wire Harness
23	MOTOR-COND/INCL BLADE&BRKT
24	Blade, Fan
25	Orifice, Fan
26	2307566 Whirlpool Refrigerator Tube
27	8281160 Whirlpool Screw
28	2307692 Whirlpool Refrigerator Tube
29	WP486692 Whirlpool Refrigerator Nut
30	2309432 Whirlpool Seal Strip
31	WP2259350 Whirlpool Refrigerator Electronic Control Board
32	W10528578 Whirlpool Refrigerator Tube
33	Cover, Condenser
34	WP2310251 Whirlpool Refrigerator Power Cord
35	W11624204 Whirlpool Screw
36	WP2266802 Whirlpool Refrigerator Switch
37	WP489128 Whirlpool Refrigerator Screw
38	549193 Whirlpool Refrigerator Power Clamp
39	W10178864 Whirlpool Refrigerator Wire Harness
