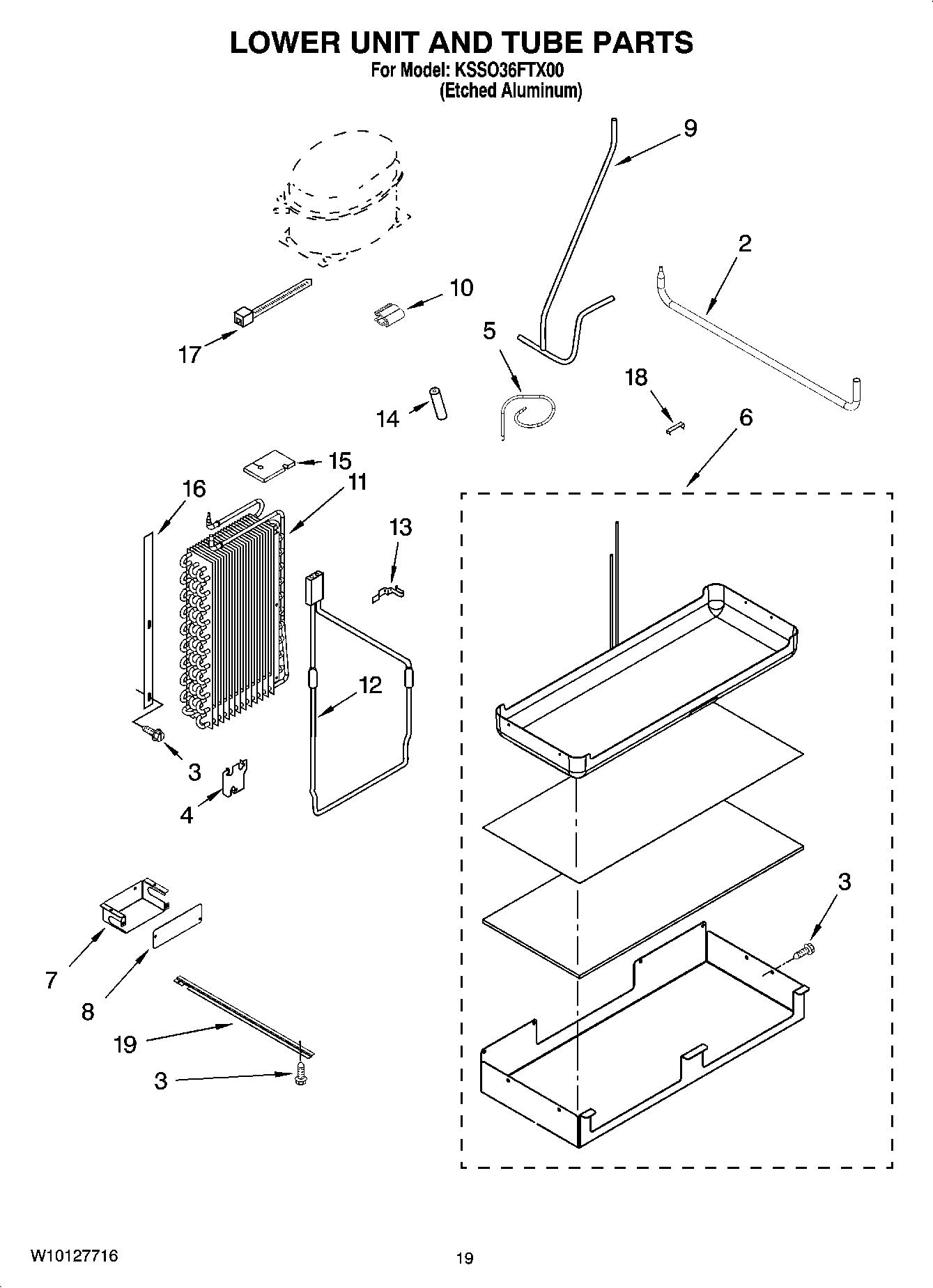

KSSO36FTX00 12 – LOWER UNIT AND TUBE PARTS

KSSO36FTX00 12 – LOWER UNIT AND TUBE PARTS

Written by

in

KSSO36FTX00 12 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
2W10388653 Whirlpool Refrigerator Tube
3W11624204 Whirlpool Screw
4Bracket
5Tube, Suction
6WPW10281063 Whirlpool Refrigerator Heater Pan
7Cover, Wiring
8Cover, Box
9Tube, Discharge
109791833 Whirlpool Refrigerator Clip
11WP2306092 Whirlpool Refrigerator Evaporator
12Heater, Defrost
131113048 Whirlpool Refrigerator Clamp
142215648 Whirlpool Refrigerator Dampener
158201798 Whirlpool Refrigerator Fan Block
16Gasket, Evaporator
17Wire Tie
18W10169509 Whirlpool Refrigerator Clip
192320554 Whirlpool Bracket
