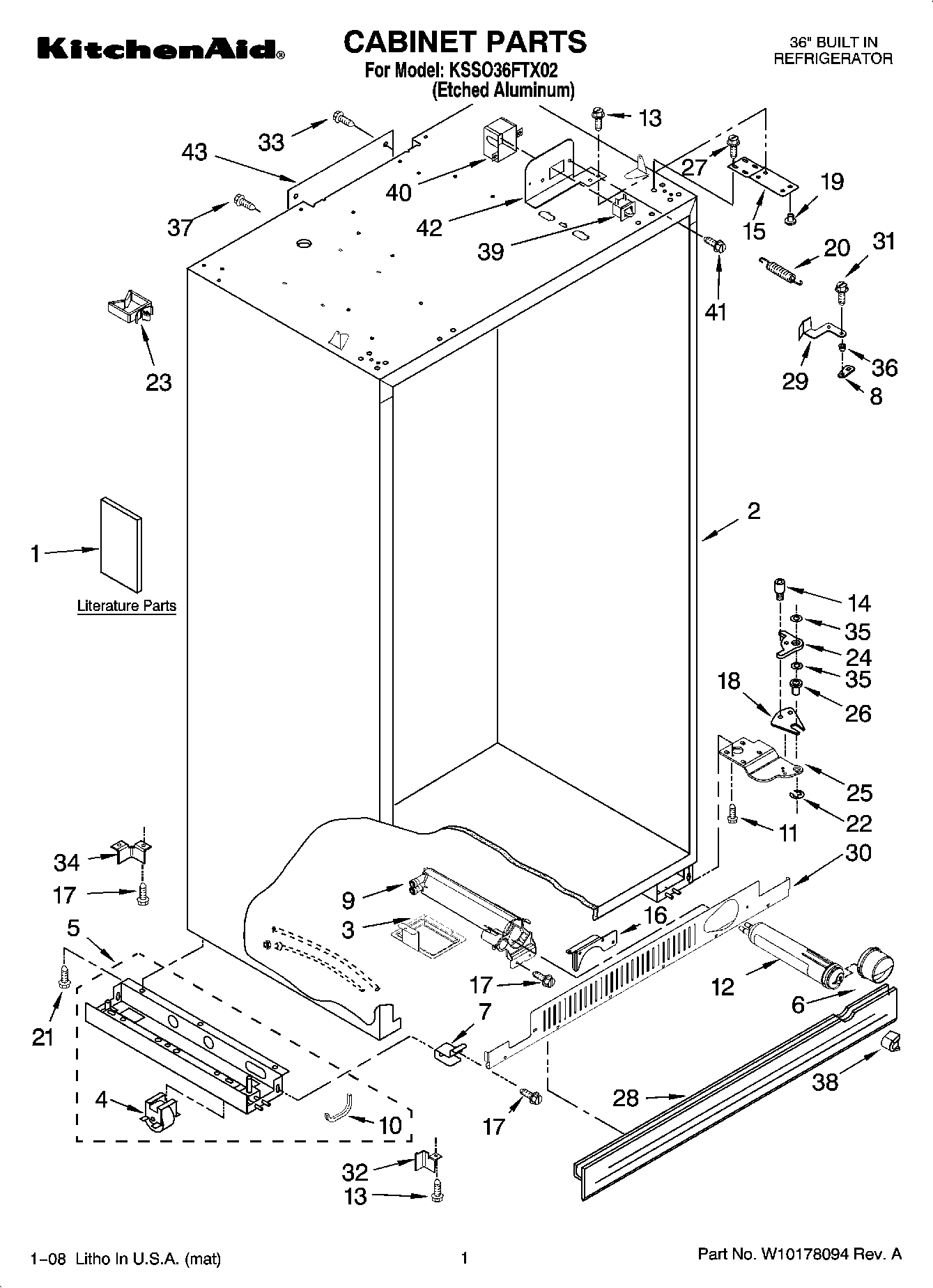

KSSO36FTX02 01 – CABINET PARTS
Written by
in
KSSO36FTX02 01 – CABINET PARTS
Products
Position
Product
1
Icemaker and Ingredient Care Center Service Sheet
1
Energy Guide
1
Use & Care Guide
1
Main Control Service Sheet
1
Installation Instructions
1
Service & Wiring Sheet
2
Cabinet, (Not A Serviceable Part)
3
2318189 Whirlpool Refrigerator Drip Pan
4
WPW10138054 Whirlpool Refrigerator Cabinet Roller
5
W10860229 Whirlpool Refrigerator Support
5
W10860448 Whirlpool Refrigerator Support
6
WP2260518B Whirlpool Water Filter Cap
7
W10839844 Whirlpool Refrigerator Bracket
8
Cam-Closer, Door
9
WPW10121140 Whirlpool Refrigerator Housing
10
2307584 Whirlpool Refrigerator Grommet
11
Screw
12
FILTER 3-SINGLE TEAL
13
WP489399 Whirlpool Refrigerator Screw
14
SCREW
15
2252291 Whirlpool Refrigerator Door Hinge
15
2252292 Whirlpool Refrigerator Door Hinge
16
W10674648 Whirlpool Refrigerator Bracket
17
WP489464 Whirlpool Refrigerator Screw
18
WP2004994 Whirlpool Refrigerator Hinge Bushing
19
Bushing
20
WP2004517 Whirlpool Refrigerator Spring
21
W11624204 Whirlpool Screw
22
WP489236 Whirlpool Refrigerator Ring
23
CLIP, TUBE
24
Gap, Cover Assembly (Bottom)
25
2309472 Whirlpool Refrigerator Hinge
25
2309471 Whirlpool Refrigerator Door Hinge
26
WP2302876 Whirlpool Refrigerator Hinge Bushing
27
W11189635 Whirlpool Refrigerator Screw
28
WP2209024B Whirlpool Refrigerator Front Grille
29
W11418227 Whirlpool Refrigerator Extension
29
W11416733 Whirlpool Refrigerator Extension
30
2325184B Whirlpool Refrigerator Front Grille
31
Screw
32
2006616 Whirlpool Refrigerator Bracket
32
2006556 Whirlpool Refrigerator Bracket
33
WP489069 Whirlpool Compactor Screw
34
2006617 Whirlpool Refrigerator Bracket
35
WP2006346 Whirlpool Refrigerator Washer
36
WP2316859 Whirlpool Refrigerator Bushing
37
WP1163283 Whirlpool Air Conditioner Screw
38
WP2260503B Whirlpool Refrigerator Button
39
W11457217 Whirlpool Refrigerator Rocker Switch Combination
39
W11384469 Whirlpool Door Switch
40
2215938 Whirlpool Refrigerator Switch Cover
41
WP965173 Whirlpool Dishwasher Screw
42
2221096 Whirlpool Refrigerator Bracket
42
2221097 Whirlpool Refrigerator Bracket
43
2215612 Whirlpool Refrigerator Duct Cover
←
