KSSO36FTX02 05 – CONTROL PANEL PARTS

KSSO36FTX02 05 – CONTROL PANEL PARTS

Written by

in

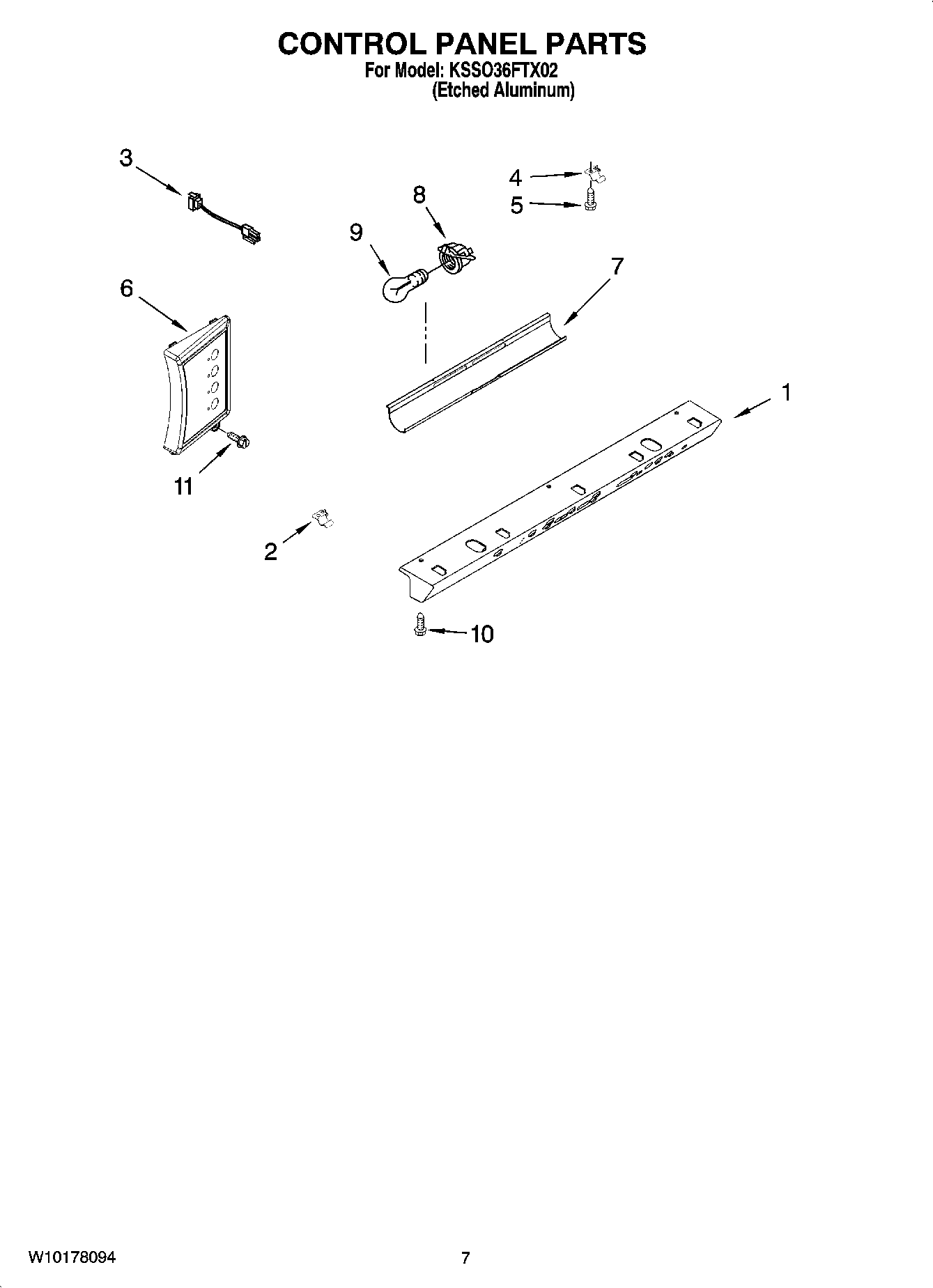

KSSO36FTX02 05 – CONTROL PANEL PARTS

Products

PositionProduct
1W10468949 Whirlpool Refrigerator Control Box
2Clip, Control Box
32310164 Whirlpool Refrigerator Wire Harness
4Bracket, Control Box
5WP488729 Whirlpool Refrigerator Door Screw
6WP2306086 Whirlpool Refrigerator Electronic Control Board
7Shield, Light
8WPW10191429 Whirlpool Refrigerator Socket
9WPA3073101 Whirlpool Light Bulb
10W11624204 Whirlpool Screw
11WPW10142283 Whirlpool Refrigerator Screw
