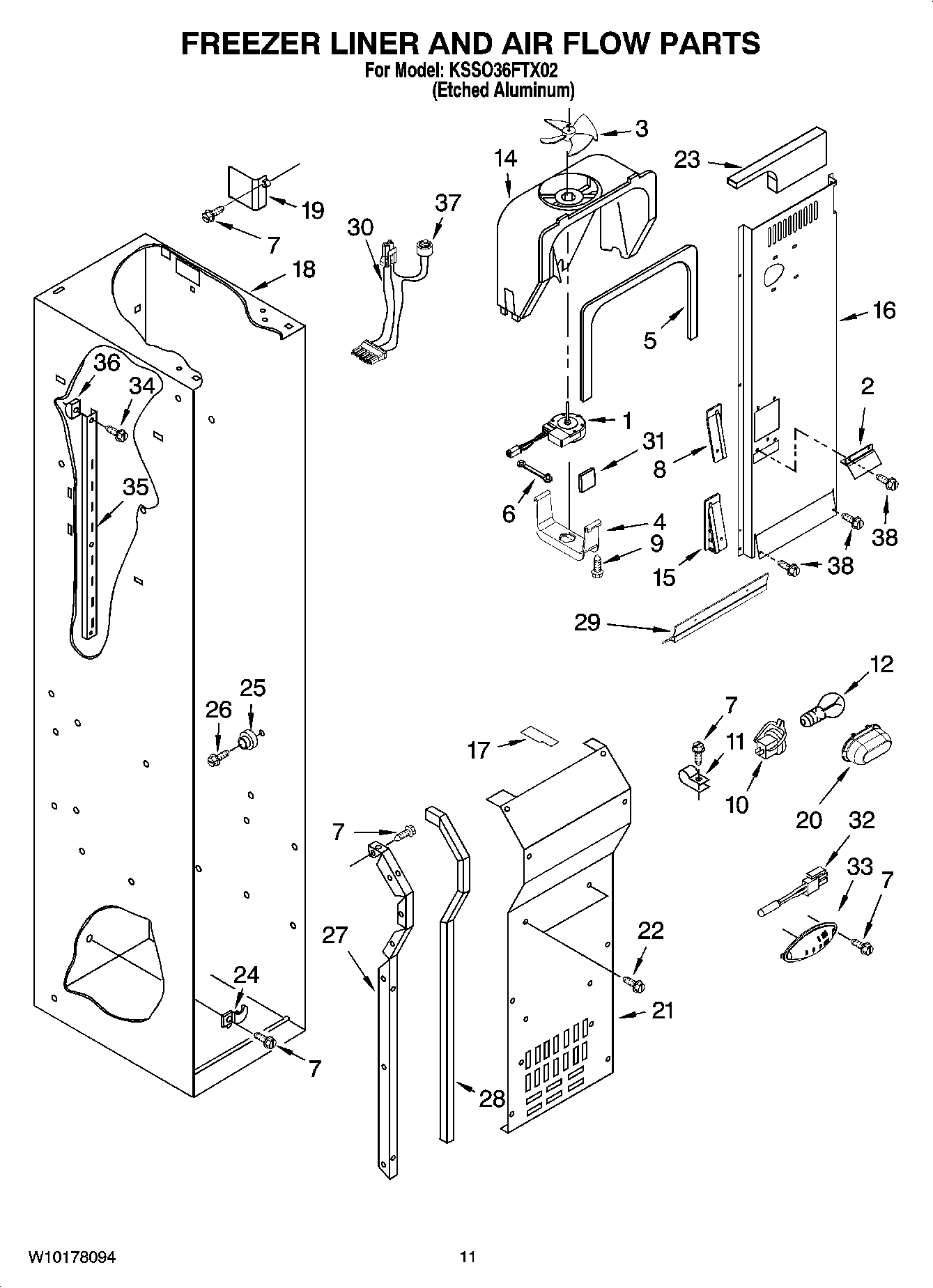

KSSO36FTX02 08 – FREEZER LINER AND AIR FLOW PARTS

Products

Position	Product
1	Motor, Fan
2	2266801 Whirlpool Refrigerator Deflector
3	WP2169142 Whirlpool Fan Blade
4	8201663 Whirlpool Refrigerator Primary Fan Blade
5	WP2302817 Whirlpool Refrigerator Gasket
6	W11669856 Whirlpool Grommet
7	W11624204 Whirlpool Screw
8	2259464 Whirlpool Refrigerator Wedge
9	WP489128 Whirlpool Refrigerator Screw
10	WPW10191429 Whirlpool Refrigerator Socket
11	Clamp, Tube
12	WPA3073101 Whirlpool Light Bulb
14	W11254898 Whirlpool Refrigerator Scroll Fan
15	2259465 Whirlpool Refrigerator Wedge
16	Air Duct
17	8201798 Whirlpool Refrigerator Fan Block
17	2209066 Whirlpool Refrigerator Fan Block
18	Liner (Not A Serviceable Part)
19	2259025 Whirlpool Refrigerator Air Cover
20	Light Shield
21	Cover, Evaporator
22	WP488729 Whirlpool Refrigerator Door Screw
23	Deflector, Air Duct
24	1112260 Whirlpool EV Support
25	WP2196483 Whirlpool Refrigerator Shelf Stud
26	WP3400806 Whirlpool Screw
27	2259355 Whirlpool Refrigerator Evaporator Rail
27	Evaporator, Cover Rail (Left Side)
28	2220904 Whirlpool Refrigerator Gasket
29	Support, Air Duct
30	W10139189 Whirlpool Refrigerator Wire Harness
31	W11553819 Whirlpool Refrigerator Insulation
32	WP2188820 Whirlpool Refrigerator Thermistor
33	WP2317844 Whirlpool Refrigerator Cover
34	2006475 Whirlpool Refrigerator Screw
35	WP2259032 Whirlpool Ladder
36	Support, Screw
37	WPW10160570 Whirlpool Refrigerator Bimetallic Defrost
38	WPW10142283 Whirlpool Refrigerator Screw
