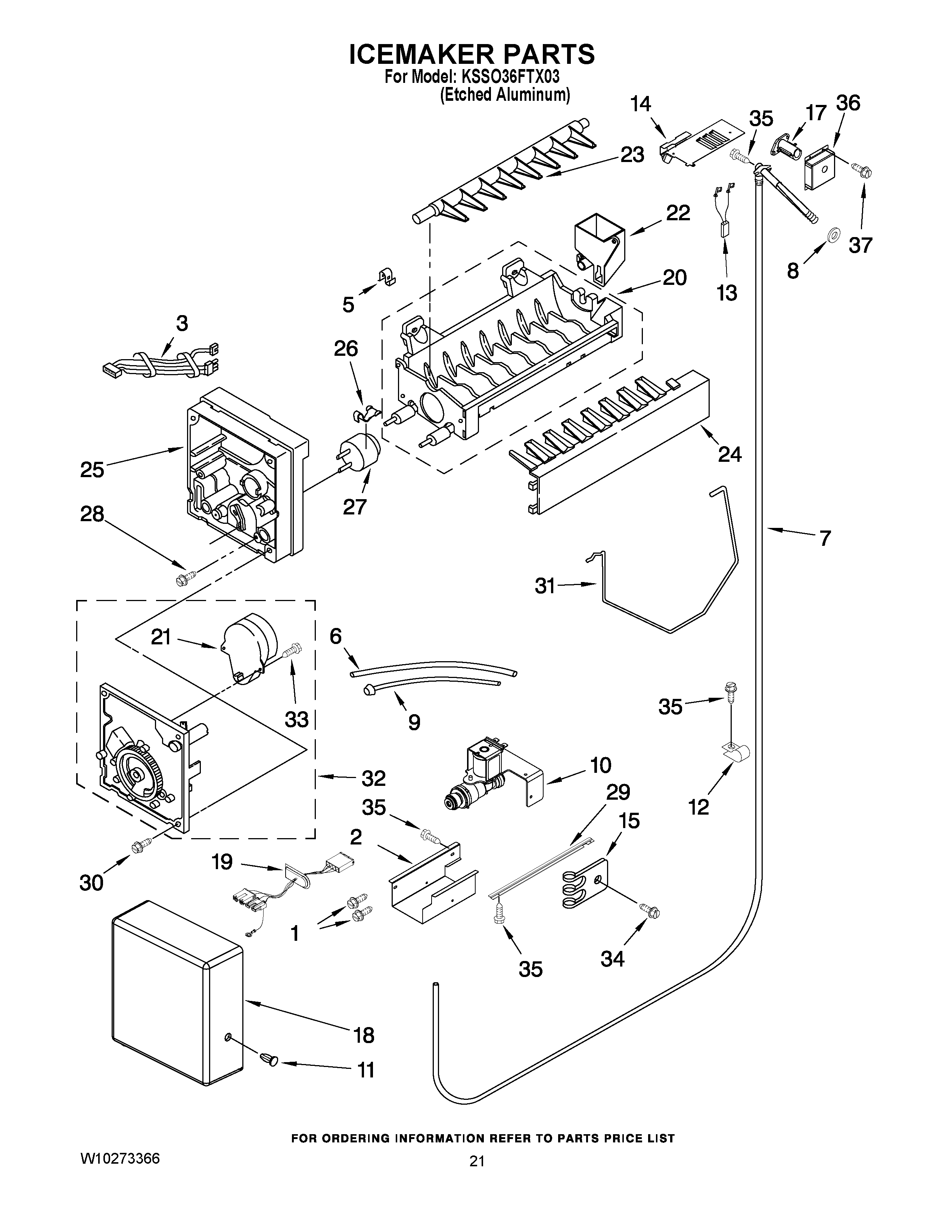

KSSO36FTX03 13 – ICEMAKER PARTS

Products

Position	Product
NI	Front Panel Kit (Stainless Steel)
NI	Black Acrylic Static Cleaner
NI	Front Panel Kit (White)
NI	Front Panel Kit (Black)
1	WP489128 Whirlpool Refrigerator Screw
2	Shield, Valve
3	2310136 Whirlpool Refrigerator Wire Harness
5	WP628379 Whirlpool Refrigerator Clip
6	W11565275 Whirlpool Refrigerator Water Tube
7	Water Inlet Tube Assembly
8	WP1106508 Whirlpool Refrigerator Gasket
9	W11533506 Whirlpool Refrigerator Water Tube
10	VALVE-INLT REFR
11	WP489115 Whirlpool Refrigerator Rivet
12	W10833902 Whirlpool Refrigerator Clamp
13	Jumper, Heater Fill Tube
14	WP2221231 Whirlpool Refrigerator Shield
15	WP488366 Whirlpool Refrigerator Clamp
17	WP2221240 Whirlpool Refrigerator Heater
18	Cover
19	W10139195 Whirlpool Wire Harness
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
29	Support, Valve
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
33	489136 Whirlpool Refrigerator Screw
34	WP489464 Whirlpool Refrigerator Screw
35	W11624204 Whirlpool Screw
36	Cover, Fill Tube Heater
37	WP488729 Whirlpool Refrigerator Door Screw
100	WPW10277450 Whirlpool Refrigerator Icemaker
