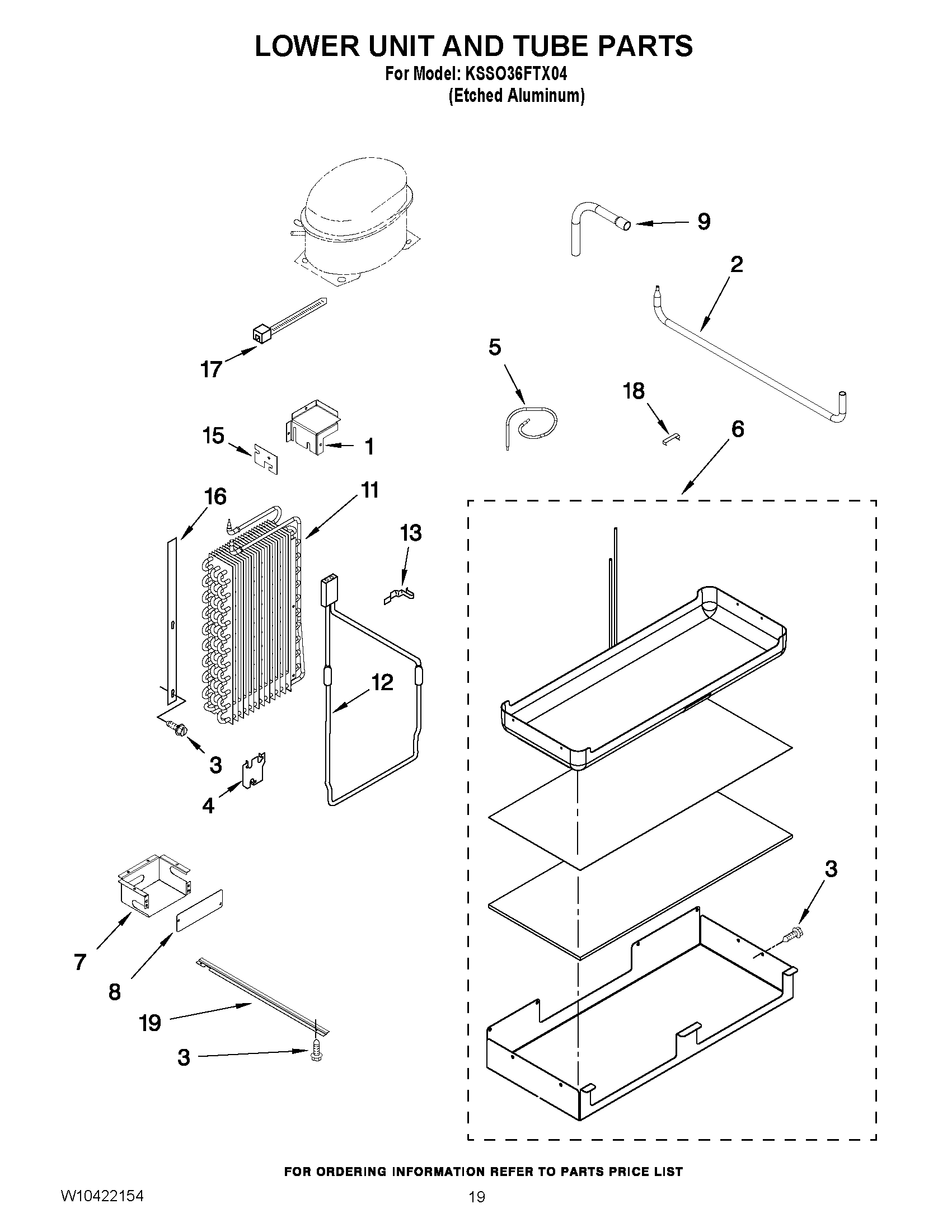

KSSO36FTX04 12 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1Bracket Assembly, Return Air
2W10388653 Whirlpool Refrigerator Tube
3W11624204 Whirlpool Screw
4W10157752 Whirlpool Bracket
5Tube, Suction
6WPW10281063 Whirlpool Refrigerator Heater Pan
7COVER, WIRING
8Cover, Wiring
9TUBE, DISCHARGE
11Evaporator
12W10140160 Whirlpool Refrigerator Heater
131113048 Whirlpool Refrigerator Clamp
15W10139908 Whirlpool Seal
16Gasket, Evaporator
17Wire Tie
18W10169509 Whirlpool Refrigerator Clip
192320554 Whirlpool Bracket
