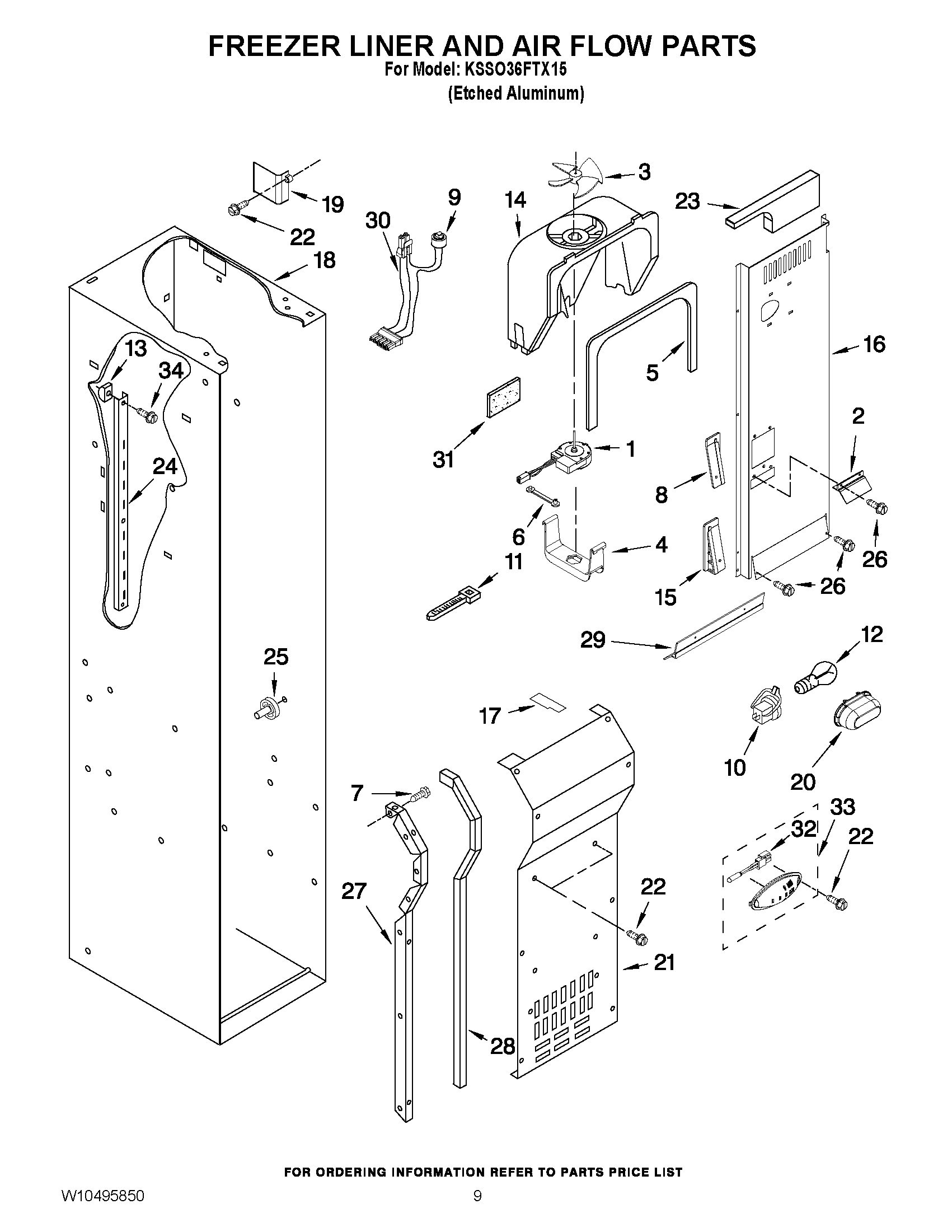

KSSO36FTX15 07 – FREEZER LINER AND AIR FLOW PARTS

Products

Position	Product
1	Motor, Fan
2	2266801 Whirlpool Refrigerator Deflector
3	WP2169142 Whirlpool Fan Blade
4	8201663 Whirlpool Refrigerator Primary Fan Blade
5	WP2302817 Whirlpool Refrigerator Gasket
6	W11669856 Whirlpool Grommet
7	W11624204 Whirlpool Screw
8	2259464 Whirlpool Refrigerator Wedge
9	WPW10160570 Whirlpool Refrigerator Bimetallic Defrost
10	WPW10191429 Whirlpool Refrigerator Socket
11	WPW10339879 Whirlpool Wire Tie
12	WPA3073101 Whirlpool Light Bulb
13	Support, Screw
14	W11254898 Whirlpool Refrigerator Scroll Fan
15	2259465 Whirlpool Refrigerator Wedge
16	Air Duct
17	8201798 Whirlpool Refrigerator Fan Block
17	2209066 Whirlpool Refrigerator Fan Block
18	CABINET (NOT A SERVICEABLE PART)
19	2259025 Whirlpool Refrigerator Air Cover
20	Light Shield
21	COVER, EVAPORATOR
22	WP488729 Whirlpool Refrigerator Door Screw
23	Deflector, Air Duct
24	WP2259032 Whirlpool Ladder
25	W11527119 Whirlpool Refrigerator Shelf Stud
26	WPW10142283 Whirlpool Refrigerator Screw
27	Evaporator, Cover Rail (Left Side)
27	2259355 Whirlpool Refrigerator Evaporator Rail
28	2220904 Whirlpool Refrigerator Gasket
29	Support, Air Duct
30	W10139189 Whirlpool Refrigerator Wire Harness
31	INSULATION
32	WP2188820 Whirlpool Refrigerator Thermistor
33	WP2317844 Whirlpool Refrigerator Cover
34	2006475 Whirlpool Refrigerator Screw
