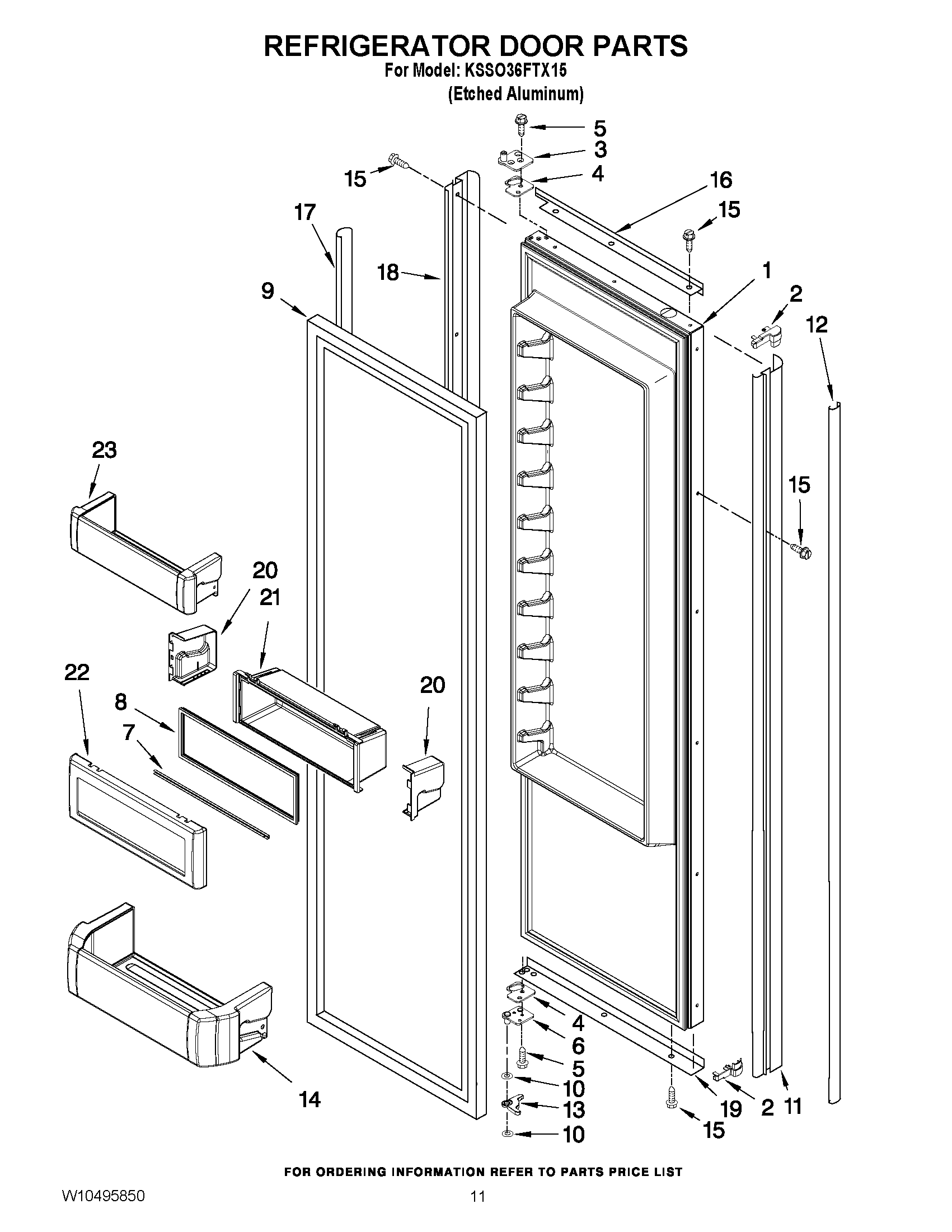

KSSO36FTX15 08 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW10193489 Whirlpool Refrigerator Black Foam In Place Door
2	2207457 Whirlpool Refrigerator Door Trim
3	Hinge Assy, Top (Chrome)
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	2252293 Whirlpool Refrigerator Door Hinge
7	2222795 Whirlpool Refrigerator Rail
8	WP2222981 Whirlpool Refrigerator Gasket
9	WP2266901 Whirlpool Door Gasket
10	WP2006346 Whirlpool Refrigerator Washer
11	2309497S Whirlpool Refrigerator Door Trim
12	2314003S Whirlpool Refrigerator Trim Cover
13	Gap, Cover Assembly (Bottom)
14	W10323746 Whirlpool Refrigerator Cantilever Bin
15	WP8281250 Whirlpool Refrigerator Screw
16	2309485S Whirlpool Refrigerator Door Trim
17	2259448S Whirlpool Refrigerator Trim Cover
18	2309498S Whirlpool Refrigerator Door Trim
19	2309491S Whirlpool Refrigerator Door Trim
20	WPW10323173 Whirlpool Refrigerator Retainer End Cap
20	WPW10323172 Whirlpool Refrigerator Retainer End Cap
21	WPW10323035 Whirlpool Refrigerator Cantilever Bin
22	WPW10131132 Whirlpool Refrigerator Door Compressor
23	W10323598 Whirlpool Refrigerator Cantilever Bin
