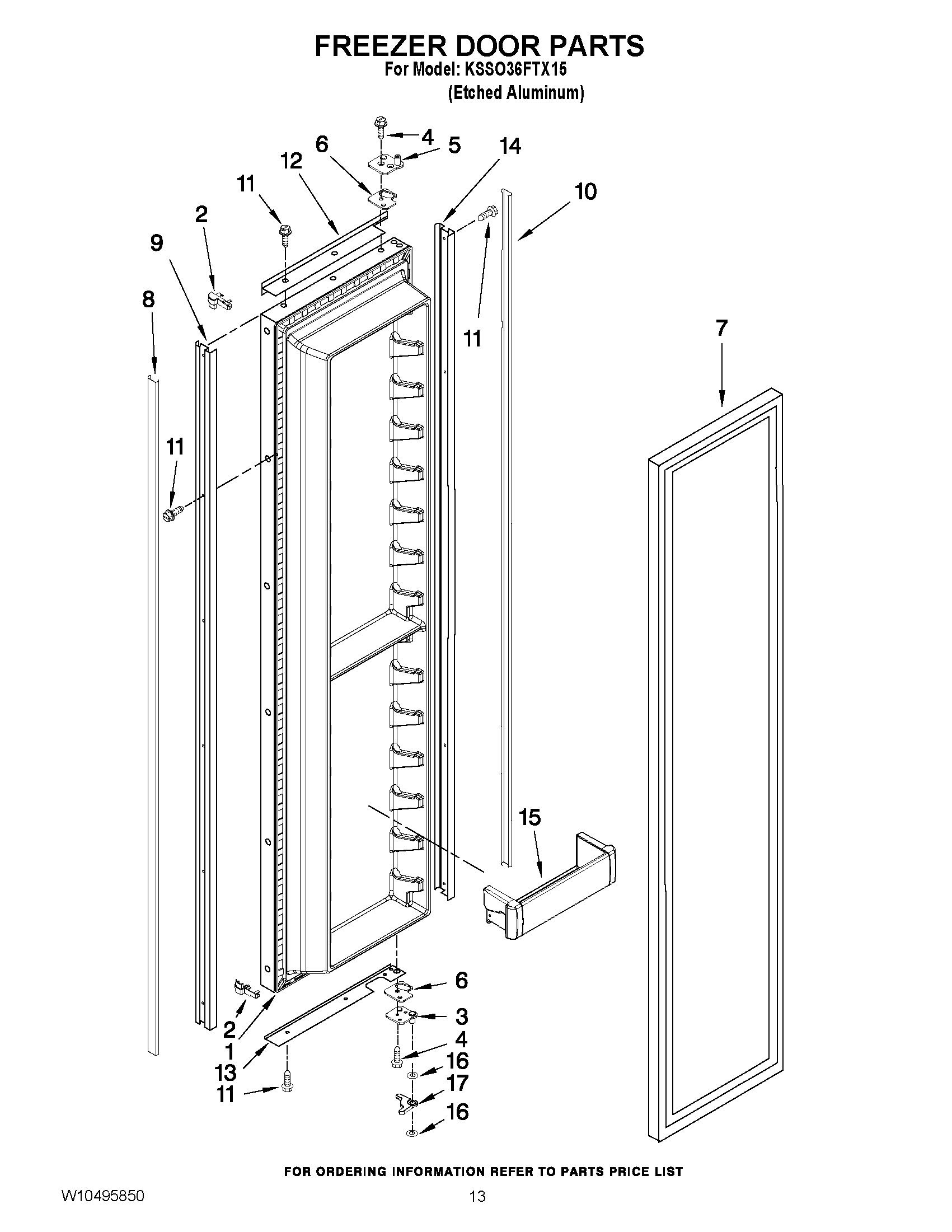

KSSO36FTX15 09 – FREEZER DOOR PARTS

KSSO36FTX15 09 – FREEZER DOOR PARTS

Written by

in

KSSO36FTX15 09 – FREEZER DOOR PARTS

Products

PositionProduct
1LW10193485 Whirlpool Refrigerator FIP Stainless Steel Door
22207457 Whirlpool Refrigerator Door Trim
32252294 Whirlpool Refrigerator Door Hinge
4W11474472 Whirlpool Screw
5Hinge Assy, Top (Chrome)
6W11673500 Whirlpool Door Hinge
7W11624976 Whirlpool Refrigerator FIP Gasket
82314003S Whirlpool Refrigerator Trim Cover
92309497S Whirlpool Refrigerator Door Trim
102259448S Whirlpool Refrigerator Trim Cover
11WP8281250 Whirlpool Refrigerator Screw
122309488S Whirlpool Door Trim
13TRIM, BOTTOM DOOR
142309498S Whirlpool Refrigerator Door Trim
15W10323601 Whirlpool Refrigerator Cantilever Bin
16WP2006346 Whirlpool Refrigerator Washer
17Gap, Cover Assembly (Bottom)
