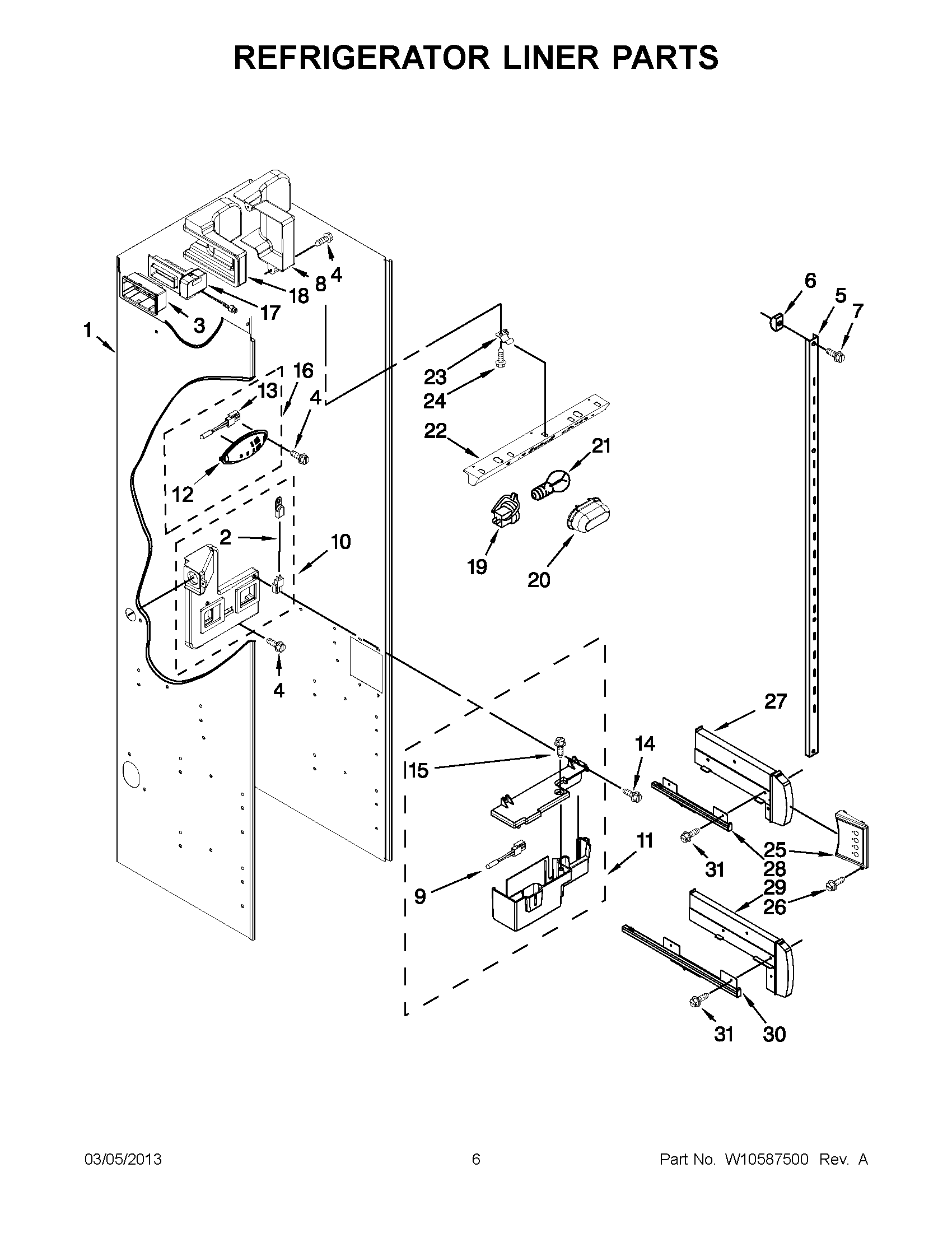

KSSO36FTX17 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2306010 Whirlpool Refrigerator Thermistor
32208970 Whirlpool Refrigerator Air Duct
4WP488729 Whirlpool Refrigerator Door Screw
5WP2259077 Whirlpool Ladder Assembly
6520965 Whirlpool Refrigerator Support
72006475 Whirlpool Refrigerator Screw
82309087 Whirlpool Refrigerator Cover
9WP2302937 Whirlpool Refrigerator Thermistor
10W10475010 Whirlpool Refrigerator Spacer
11WPW10169528 Whirlpool Refrigerator Diffuser
12WP2317844 Whirlpool Refrigerator Cover
13WP2188820 Whirlpool Refrigerator Thermistor
15W11624204 Whirlpool Screw
17WP2221296 Whirlpool Air Baffle
18WP2309222 Whirlpool Refrigerator Diffuser
19WPW10191429 Whirlpool Refrigerator Socket
20Light Shield
21WPA3073101 Whirlpool Light Bulb
22W10468949 Whirlpool Refrigerator Control Box
23Clip, Control Box
24WP8281163 Whirlpool Refrigerator Screw
25WP2306086 Whirlpool Refrigerator Electronic Control Board
26WPW10142283 Whirlpool Refrigerator Screw
272256244 Whirlpool Refrigerator Track
272256243 Whirlpool Refrigerator Track
282302955 Whirlpool Refrigerator Slide
282302954 Whirlpool Refrigerator Slide
292256222 Whirlpool Refrigerator Track
292256223 Whirlpool Refrigerator Track
302302957 Whirlpool Refrigerator Slide
302302956 Whirlpool Refrigerator Slide
31WP8533928 Whirlpool Refrigerator Screw
31WP3400886 Whirlpool Refrigerator Screw
