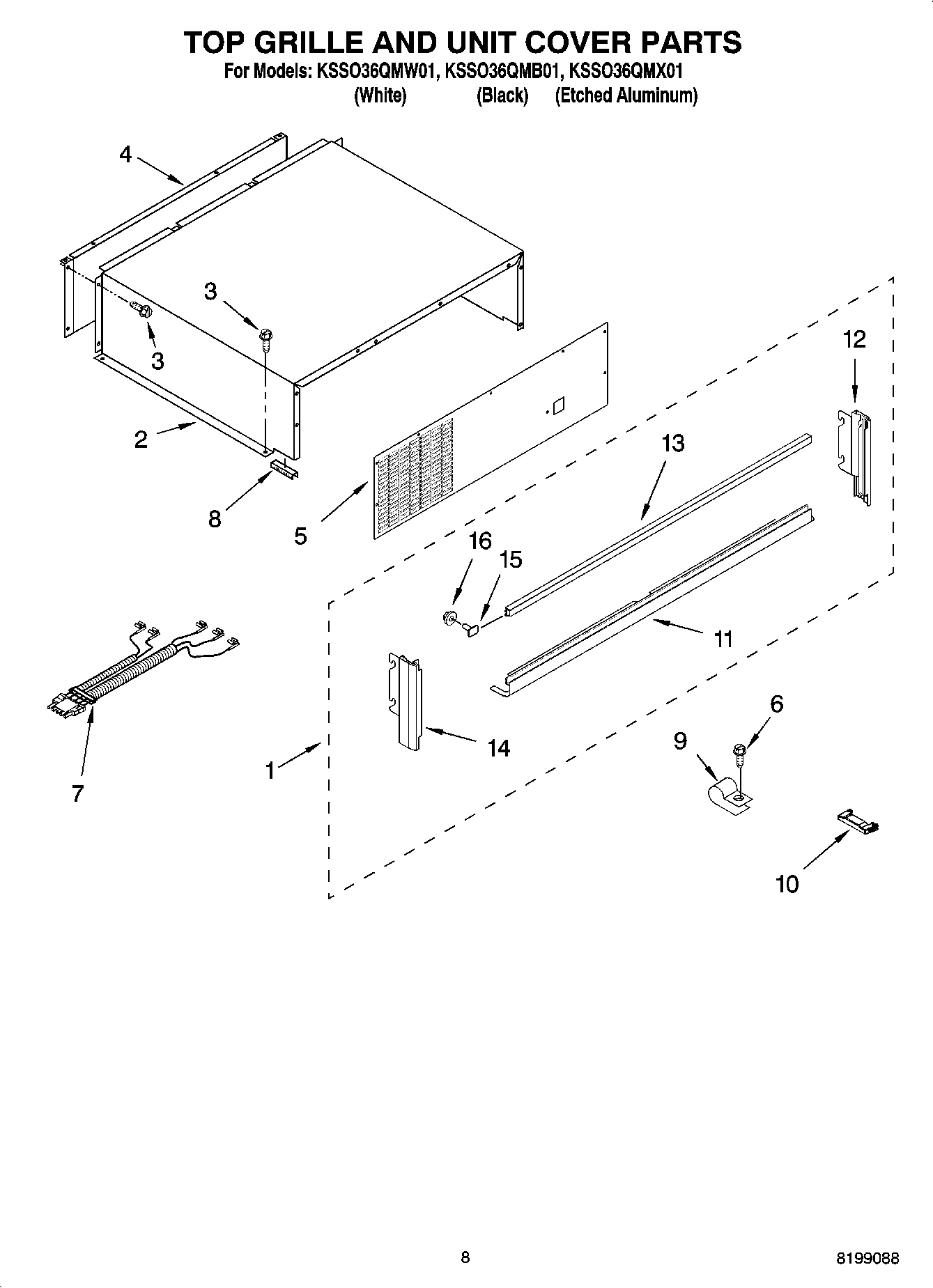

KSSO36QMB01 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Top Grille Assembly (Black)
1Top Grille Assembly (White)
1Top Grille Assembly (Etched Aluminum)
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Front, Unit Cover
6WP965173 Whirlpool Dishwasher Screw
7Wire Assembly RC/FC Light Switch
82215910 Whirlpool Refrigerator Grommet
9489348 Whirlpool Refrigerator Tube Clamp
10Enclosure, Connector
11Trim-Grille, Bottom (White)
11Trim-Grille, Bottom (Etched Aluminum)
11Trim-Grille, Bottom (Black)
12Trim-Grille, Right Side (White)
12Trim-Grille, Right Side (Etched Aluminum)
12Trim-Grille, Right Side (Black)
13Trim-Grille, Top (Etched Aluminum)
13Trim-Grille, Top (White)
13Trim-Grille, Top (Black)
14Trim-Grille, Left Side (Etched Aluminum)
14Trim-Grille, Left Side (Black)
14Trim-Grille, Left Side (White)
152003347 Whirlpool Screw
16WP488130 Whirlpool Air Conditioner Nut
