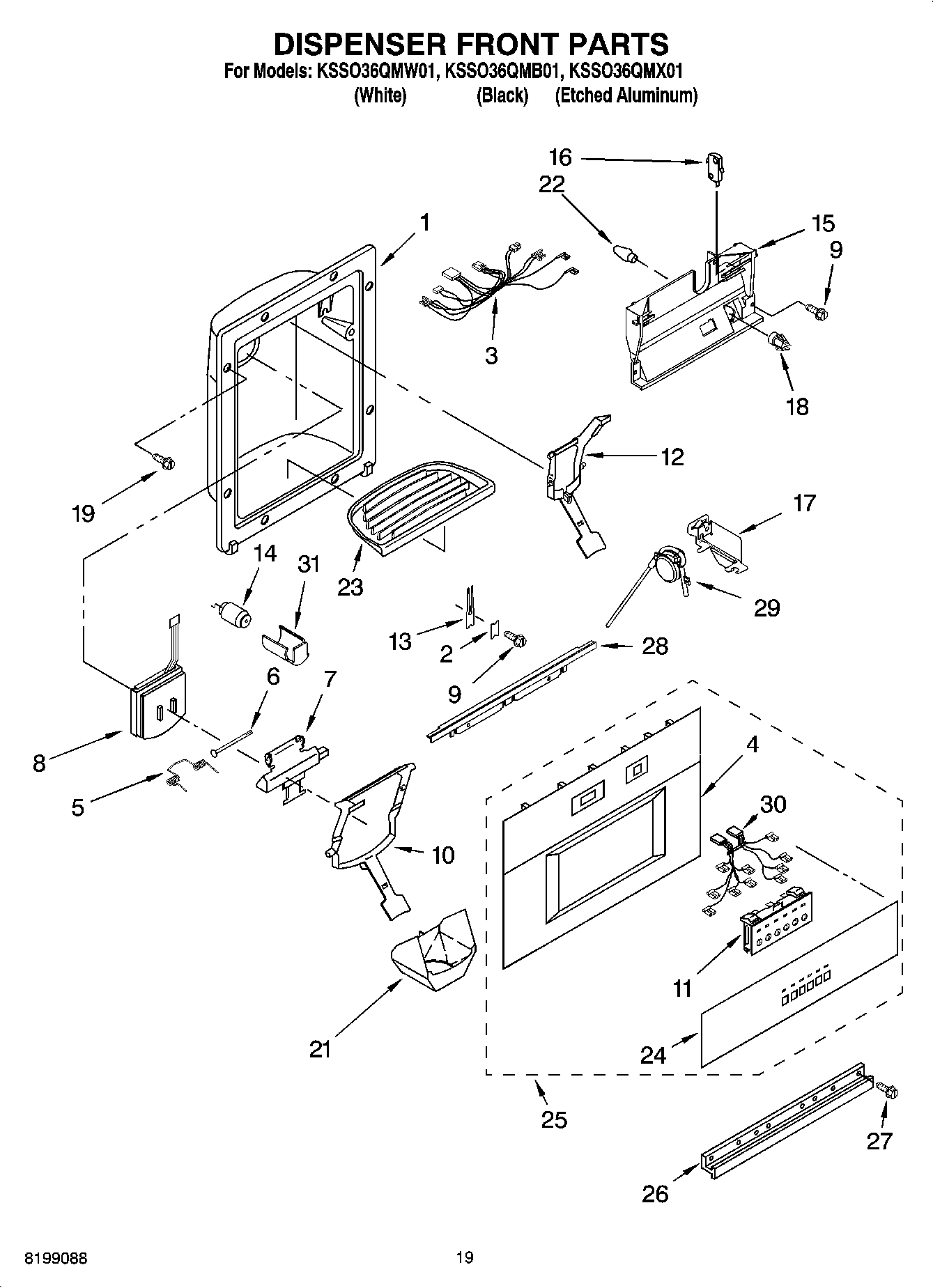

KSSO36QMB01 12 – DISPENSER AND FRONT PARTS

Products

Position	Product
1	Housing, Dispenser (Not Serviced)
2	WP2195051 Whirlpool Refrigerator Clip
3	Wire Assembly
4	Cover, Dispenser (Not Available- Order Item 25)
5	WPW10224328 Whirlpool Refrigerator Spring
6	WP2196195 Whirlpool Refrigerator Door Pin
7	Door Mechanism Assembly
8	WP2180353 Whirlpool Dispenser Door
9	WP3400906 Whirlpool Refrigerator Screw
10	Lever, Ice Dispenser (Black)
10	Lever, Ice Dispenser (White)
11	Switch Assembly (Not Available Order Item 25)
12	W10856124 Whirlpool Refrigerator Dispenser Arm
12	Lever, Water Dispenser (White)
13	WP2194719 Whirlpool Refrigerator Clip
14	Delay Mechanism
15	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16	WP2162361 Whirlpool Switch
17	2259209 Whirlpool Refrigerator Bracket
18	2180200 Whirlpool Refrigerator Socket
19	WP8281163 Whirlpool Refrigerator Screw
21	WP2180224 Whirlpool Dispenser Funnel Guide
22	WP22002263 Whirlpool Dryer 10W Light Bulb
23	WP2206670W Whirlpool Dispenser Tray
23	WP2206670B Whirlpool Dispenser Tray
24	Overlay, Cover (Not Available- Order Item 25)
25	Front Cover Assembly (Includes Items 4, 11, 24 & 30) (Black)
25	Front Cover Assembly (Includes Items 4, 11, 24 & 30) (White)
26	Trim, Front-Bottom (Black)
26	Trim, Front-Bottom (White)
27	W10851443 Whirlpool Refrigerator Screw
27	Screw 8-15 x 1/2 (White)
28	Trim, Front-Top (Black)
28	Trim, Front-Top (White)
29	8201537 Whirlpool Water Tubing Assembly
30	Harness, Switch Jumper Assembly
31	Sleeve, Delay Mechanism
