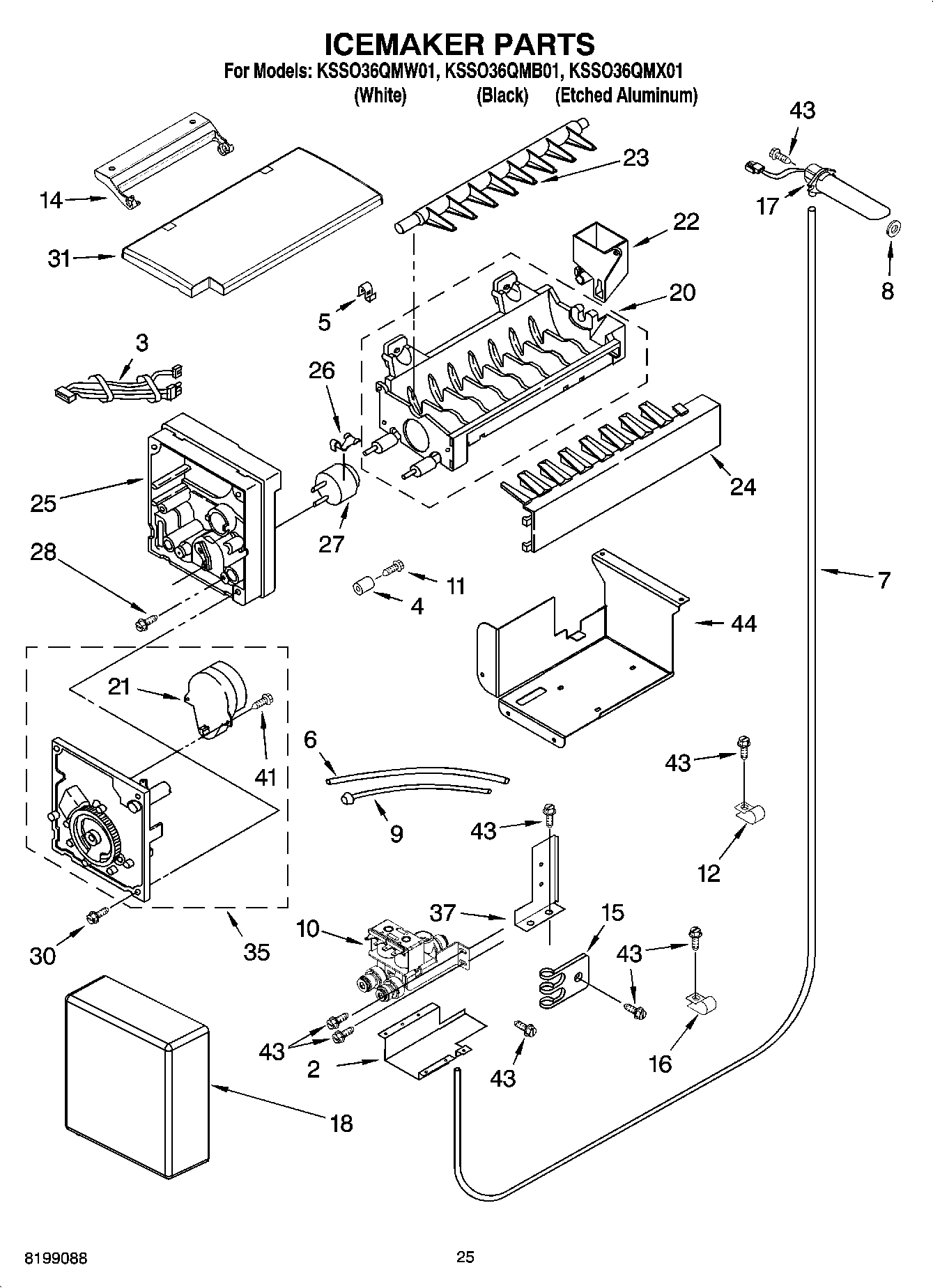

KSSO36QMB01 15 – ICEMAKER PARTSadmin2025-04-26T12:33:06+00:00KSSO36QMB01 15 – ICEMAKER PARTS ProductsPositionProduct2Cover, Bottom3Wire Assembly, Icemaker42252354 Whirlpool Spacer Assembly5WP628379 Whirlpool Refrigerator Clip6Tube, Filter Inlet7Water Inlet Tube Assembly8Seal Gasket9W11533506 Whirlpool Refrigerator Water Tube10Valve, Solenoid11WP489474 Whirlpool Refrigerator Screw12W10833902 Whirlpool Refrigerator Clamp14WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket15WP488366 Whirlpool Refrigerator Clamp16Clamp, Tube17W10460127 Whirlpool Refrigerator Inlet Tube18Cover20WPW10122550 Whirlpool Refrigerator Ice Mold21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly22WP628356 Whirlpool Refrigerator Fill Cup23626753 Whirlpool Refrigerator Ejector Arm24W10297245 Whirlpool Refrigerator Arm Stripper25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat30WP681249 Whirlpool Screw Assembly31W10504752 Whirlpool Refrigerator Ice Door37Water Valve Mounting Bracket41489136 Whirlpool Refrigerator Screw43W11624204 Whirlpool Screw442300167 Whirlpool Bracket100Front Panel Kit (Black)100Front Panel Kit (Stainless Steel)100Front Panel Kit (White)100Ice Container Assembly100Black Acrylic Static Cleaner100WPW10277449 Whirlpool Refrigerator Ice Maker100Following Parts Not Illustrated (Optional Parts Only)
