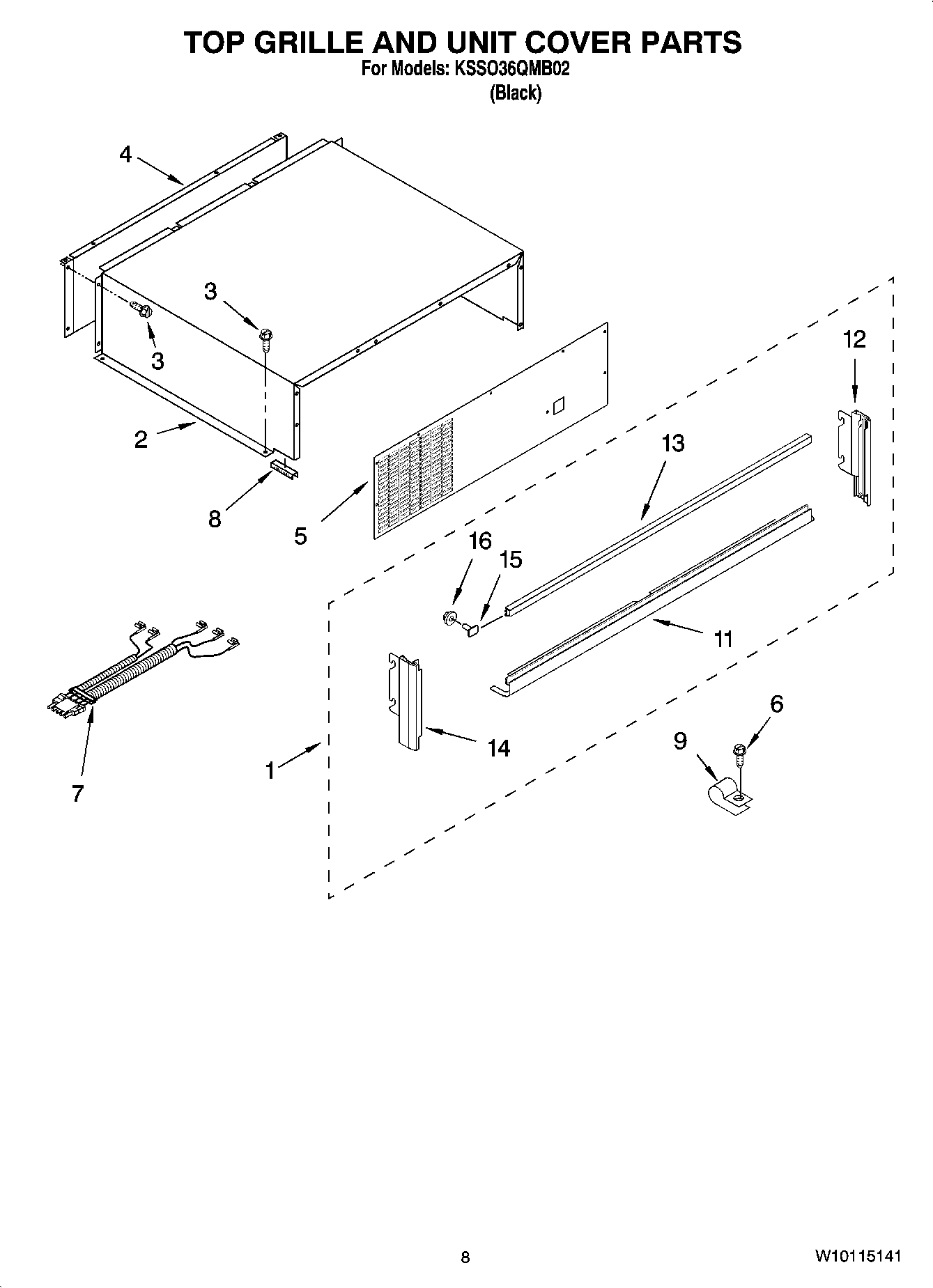

KSSO36QMB02 06 – TOP GRILLE AND UNIT COVER PARTS

KSSO36QMB02 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSO36QMB02 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Top Grille Assembly (Black)
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Cover-Unit, Front
6WP965173 Whirlpool Dishwasher Screw
7WIRE ASSEMBLY RC/FC LIGHT SWITCH
82215910 Whirlpool Refrigerator Grommet
9489348 Whirlpool Refrigerator Tube Clamp
11Trim-Grille, Bottom (Black)
12Trim-Grille, Right Side (Black)
13Trim-Grille, Top (Black)
14Trim-Grille, Left Side (Black)
152003347 Whirlpool Screw
16WP488130 Whirlpool Air Conditioner Nut
