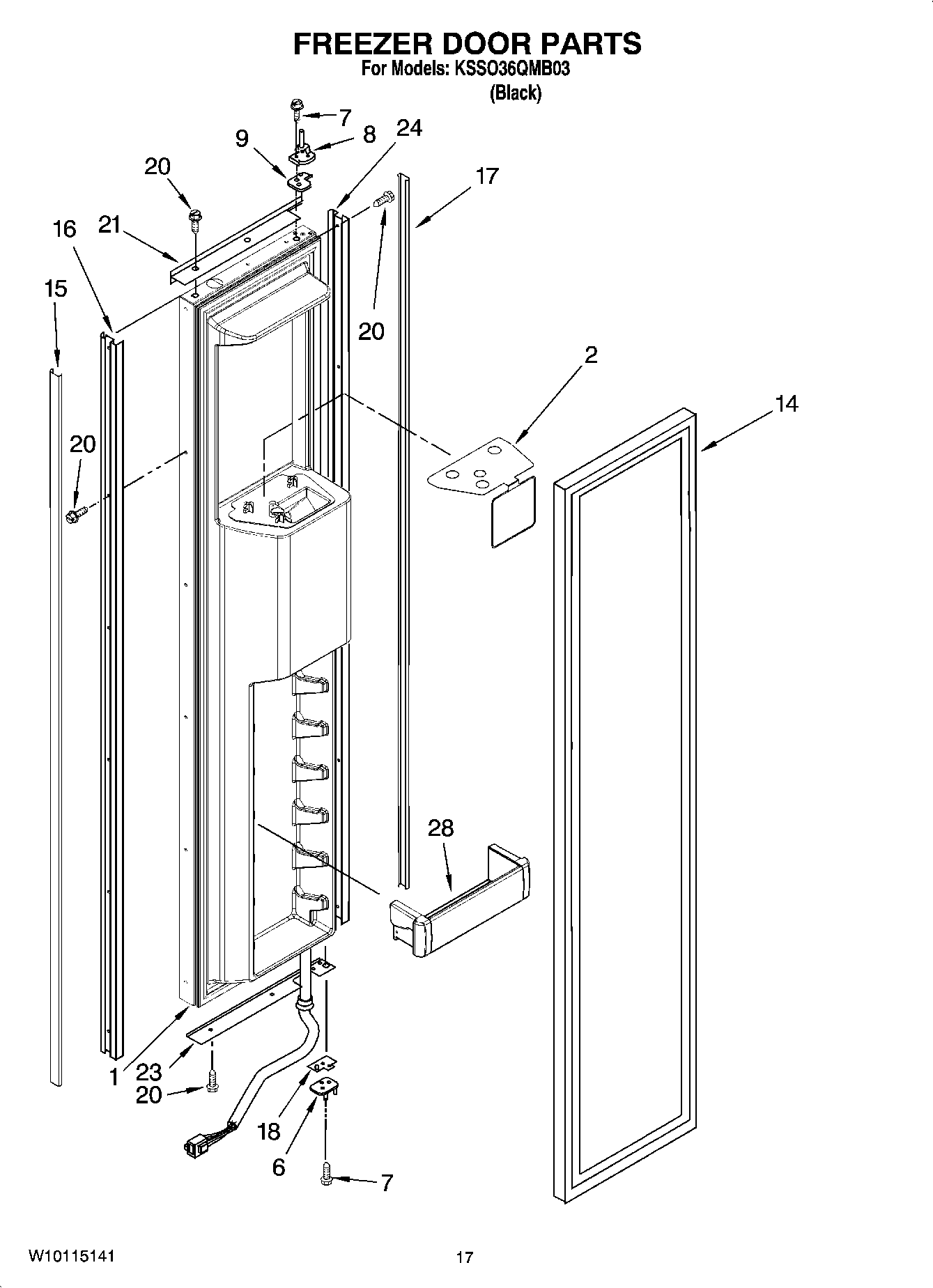

KSSO36QMB03 11 – FREEZER DOOR PARTS

KSSO36QMB03 11 – FREEZER DOOR PARTS

Written by

in

KSSO36QMB03 11 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door Panel (Includes Item 14) (Black)
2Safety Barrier
6HINGE-DOOR
7W11474472 Whirlpool Screw
8W11724512 Whirlpool Door Hinge
9Spacer-Hinge, Top
14W11624976 Whirlpool Refrigerator FIP Gasket
15Cover, Screw (Handle Side) (Black)
16Trim, Door (Handle Side) (Black)
17Trim, Screw Cover (Hinge Side) (Black)
18Door Spacer, Bottom
20W10851443 Whirlpool Refrigerator Screw
21TRIM-DOOR, TOP (BLACK)
23Trim (Bottom) (Black)
24Trim, Door (Hinge Side) (Black)
28W10323601 Whirlpool Refrigerator Cantilever Bin
