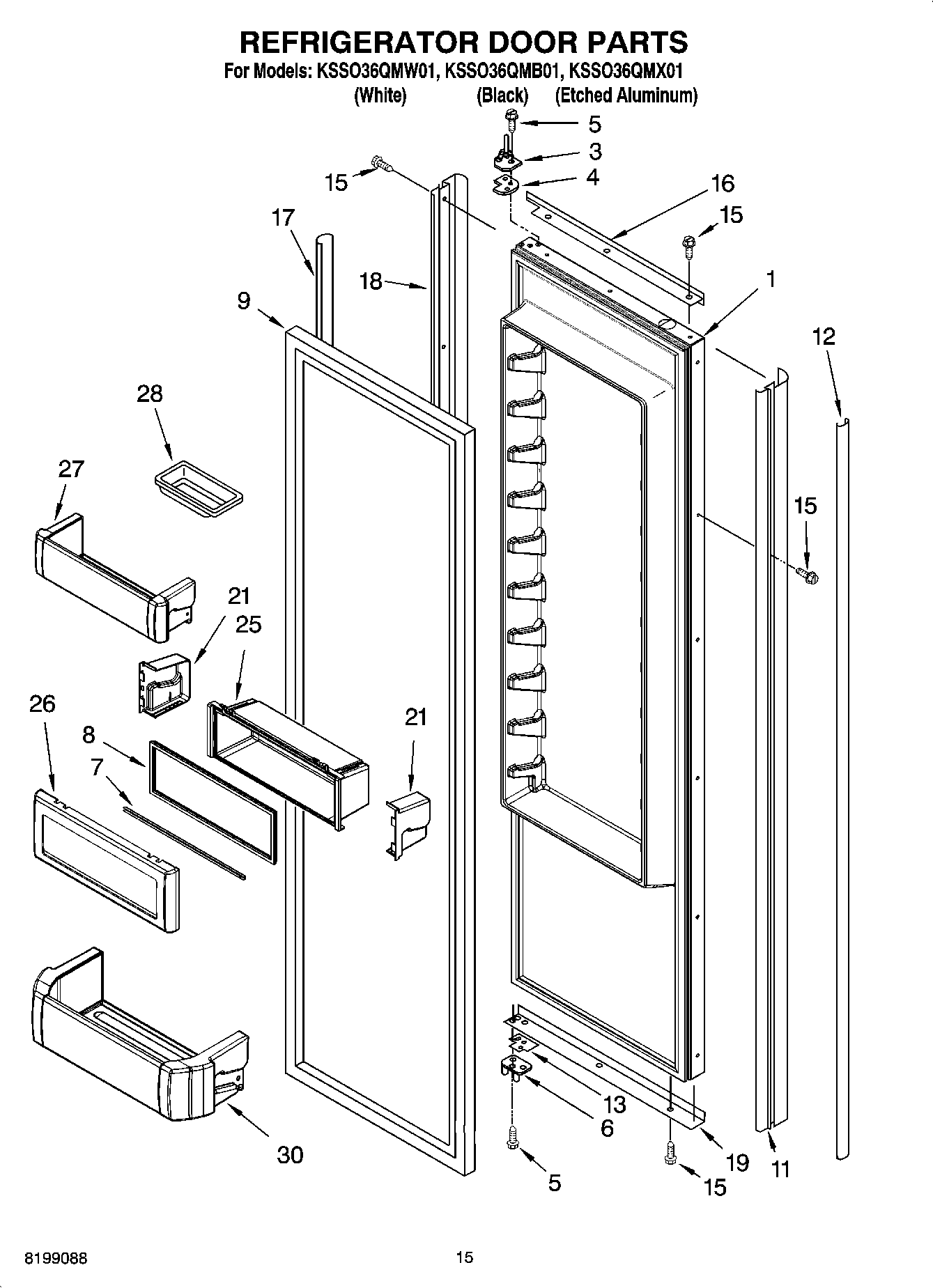

KSSO36QMW01 10 – REFRIGERATOR DOOR PARTS

KSSO36QMW01 10 – REFRIGERATOR DOOR PARTS

Written by

in

KSSO36QMW01 10 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10193489 Whirlpool Refrigerator Black Foam In Place Door
3W11724512 Whirlpool Door Hinge
4Spacer-Hinge, Top
5W11474472 Whirlpool Screw
62302878 Whirlpool Refrigerator Door Hinge
72222795 Whirlpool Refrigerator Rail
8WP2222981 Whirlpool Refrigerator Gasket
9WP2266901 Whirlpool Door Gasket
11Trim, Door (Handle Side) (Black)
11Trim, Door (Handle Side) (White)
11Trim, Door (Handle Side) (Etched Aluminum)
12Cover, Screw (Handle Side) (Black)
12Cover, Screw (Handle Side) (White)
12Cover, Screw (Handle Side) (Etched Aluminum)
13Door Spacer, Bottom
15Screw 8-15 x 1/2 (White)
15WP8281250 Whirlpool Refrigerator Screw
15W10851443 Whirlpool Refrigerator Screw
16Trim, Door (Top) (Etched Aluminum)
16TRIM-DOOR, TOP (WHITE)
16TRIM-DOOR, TOP (BLACK)
17Cover, Screw
17Trim, Screw Cover (Hinge Side) (Black)
17Cover, Screw (Hinge Side) (White)
18Trim, Door (Hinge Side) (Black)
18Trim, Door (Hinge Side) (White)
18Trim-Door, (Hinge Side)
19Trim (Bottom) (Black)
19Trim (Bottom) (Etched Aluminum)
19Trim (Bottom) (White)
21WPW10323173 Whirlpool Refrigerator Retainer End Cap
21WPW10323172 Whirlpool Refrigerator Retainer End Cap
25WPW10323035 Whirlpool Refrigerator Cantilever Bin
26WPW10131132 Whirlpool Refrigerator Door Compressor
27W10323598 Whirlpool Refrigerator Cantilever Bin
28Butter Tray
30W10323746 Whirlpool Refrigerator Cantilever Bin
