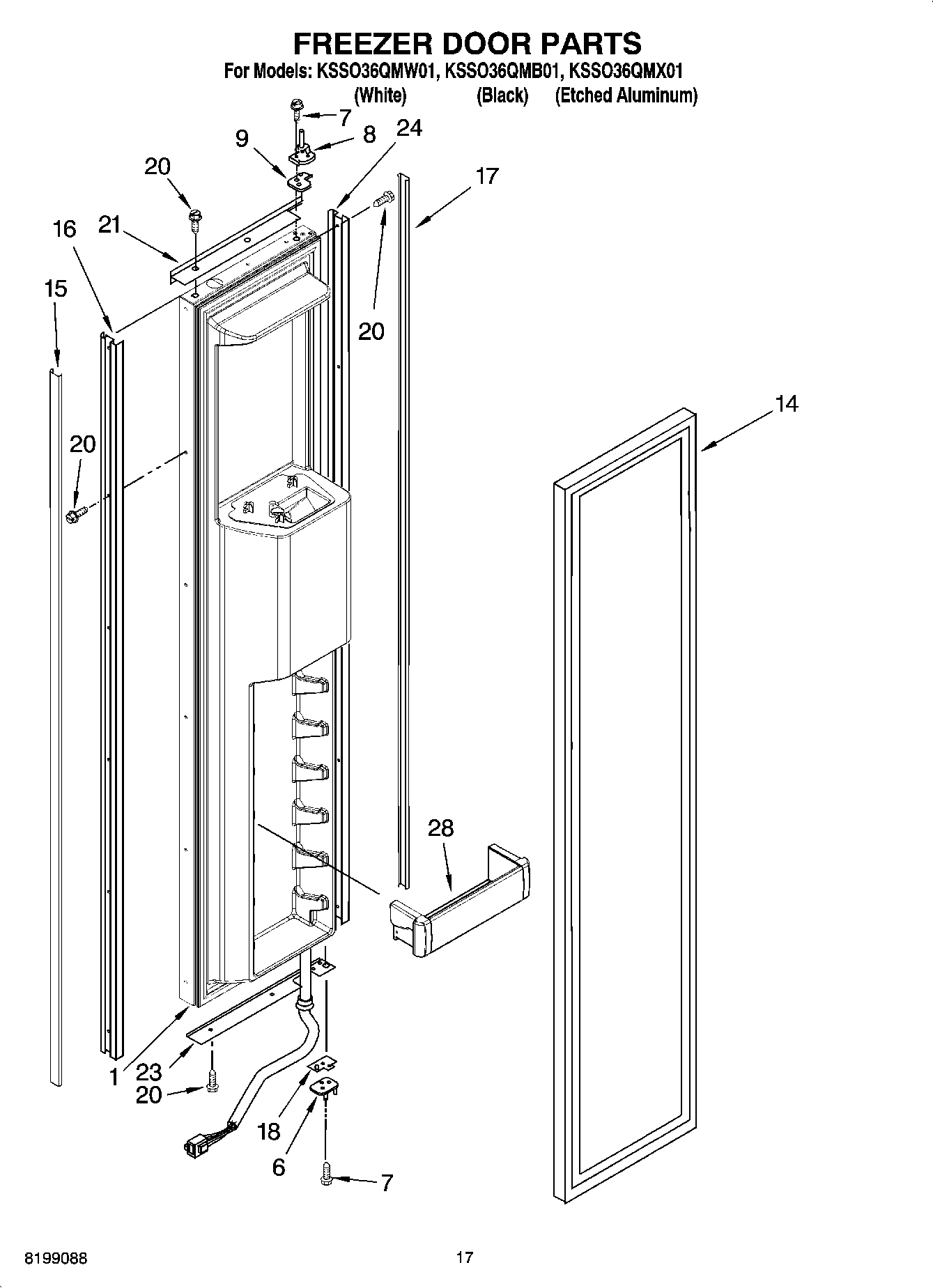

KSSO36QMW01 11 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door Panel (Includes Item 14) (White)
1	Freezer Door Panel (Includes Item 14) (Black)
6	HINGE-DOOR
7	W11474472 Whirlpool Screw
8	W11724512 Whirlpool Door Hinge
9	Spacer-Hinge, Top
14	W11624976 Whirlpool Refrigerator FIP Gasket
15	Cover, Screw (Handle Side) (Black)
15	Cover, Screw (Handle Side) (White)
15	Cover, Screw (Handle Side) (Etched Aluminum)
16	Trim, Door (Handle Side) (Black)
16	Trim, Door (Handle Side) (White)
16	Trim, Door (Handle Side) (Etched Aluminum)
17	Cover, Screw
17	Cover, Screw (Hinge Side) (White)
17	Trim, Screw Cover (Hinge Side) (Black)
18	Door Spacer, Bottom
20	W10851443 Whirlpool Refrigerator Screw
20	Screw 8-15 x 1/2 (White)
20	WP8281250 Whirlpool Refrigerator Screw
21	TRIM-DOOR, TOP (BLACK)
21	TRIM-DOOR, TOP (WHITE)
21	Trim, Door (Top) (Etched Aluminum)
23	Trim (Bottom) (Etched Aluminum)
23	Trim (Bottom) (Black)
23	Trim (Bottom) (White)
24	Trim-Door, (Hinge Side)
24	Trim, Door (Hinge Side) (Black)
24	Trim, Door (Hinge Side) (White)
28	W10323601 Whirlpool Refrigerator Cantilever Bin
28	F.C. (3)
