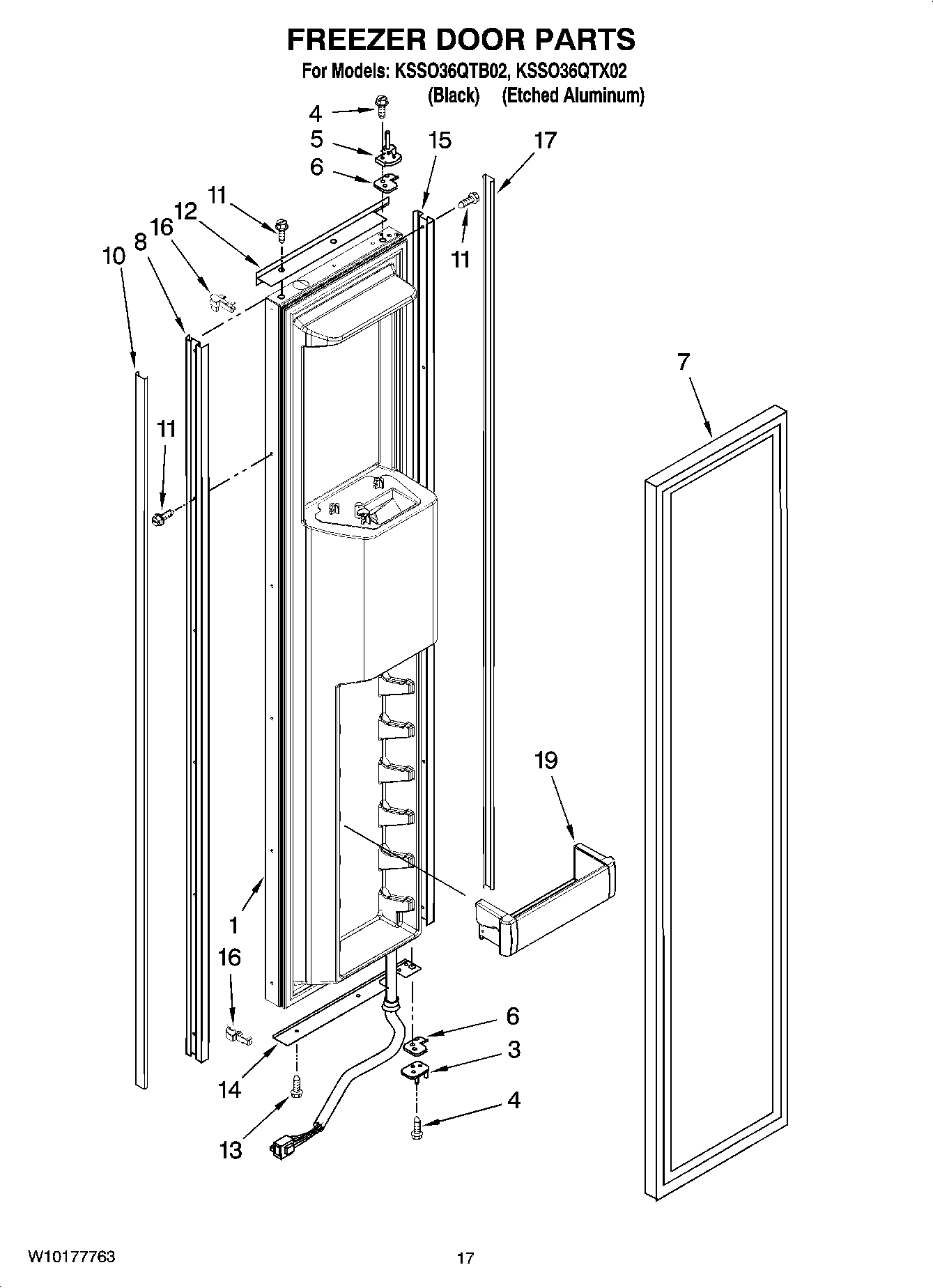

KSSO36QTB02 11 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 14) (Universal Silver)
1	Freezer Door (Includes 14) (Black)
3	2252294B Whirlpool Refrigerator Door Hinge
3	2252294 Whirlpool Refrigerator Door Hinge
4	W11474472 Whirlpool Screw
5	2252295B Whirlpool Refrigerator Door Hinge
5	Hinge Assy, Top (Chrome)
6	W11673500 Whirlpool Door Hinge
7	W11624976 Whirlpool Refrigerator FIP Gasket
8	2309497S Whirlpool Refrigerator Door Trim
8	Trim-Door, (Handle Side) (Black)
10	Trim, Screw Cover (Handle Side) (Black)
10	2314003S Whirlpool Refrigerator Trim Cover
11	WP8281250 Whirlpool Refrigerator Screw
11	W10851443 Whirlpool Refrigerator Screw
12	Trim-Door, Top (Black)
12	2309488S Whirlpool Door Trim
13	W10759522 Whirlpool Screw
14	TRIM, BOTTOM DOOR
14	Trim-Door, Btm (Black)
15	2309498S Whirlpool Refrigerator Door Trim
15	Trim-Door, (Hinge Side) (Black)
16	Corner Trim (Black)
16	2207457 Whirlpool Refrigerator Door Trim
17	2259448S Whirlpool Refrigerator Trim Cover
17	Trim, Screw Cover (Hinge Side) (Black)
19	W10323601 Whirlpool Refrigerator Cantilever Bin
