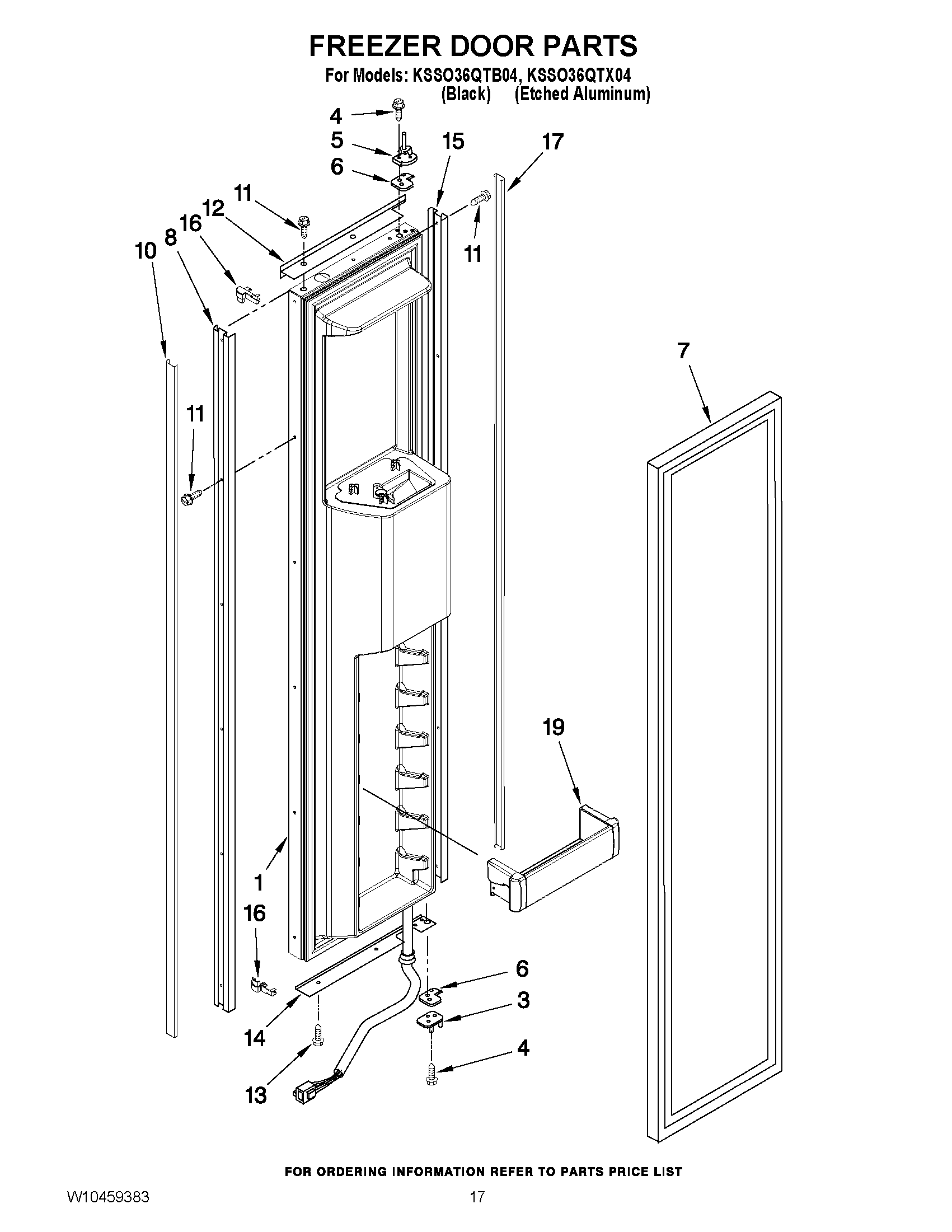

KSSO36QTB04 11 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES No.7) (UNIVERSAL SILVER)
1	FREEZER DOOR (INCLUDES No.7) (BLACK)
3	2252294B Whirlpool Refrigerator Door Hinge
3	2252294 Whirlpool Refrigerator Door Hinge
4	W11474472 Whirlpool Screw
5	2252295B Whirlpool Refrigerator Door Hinge
5	Hinge Assy, Top (Chrome)
6	W11673500 Whirlpool Door Hinge
7	W11624976 Whirlpool Refrigerator FIP Gasket
8	Trim-Door, (Handle Side) (Black)
8	2309497S Whirlpool Refrigerator Door Trim
10	2314003S Whirlpool Refrigerator Trim Cover
10	Trim, Screw Cover (Handle Side) (Black)
11	W10851443 Whirlpool Refrigerator Screw
11	WP8281250 Whirlpool Refrigerator Screw
12	2309488S Whirlpool Door Trim
12	Trim-Door, Top (Black)
13	W10759522 Whirlpool Screw
14	Trim-Door, Btm (Black)
14	TRIM, BOTTOM DOOR
15	Trim-Door, (Hinge Side) (Black)
15	2309498S Whirlpool Refrigerator Door Trim
16	2207457 Whirlpool Refrigerator Door Trim
16	Corner Trim (Black)
17	Trim, Screw Cover (Hinge Side) (Black)
17	2259448S Whirlpool Refrigerator Trim Cover
19	W10323601 Whirlpool Refrigerator Cantilever Bin
