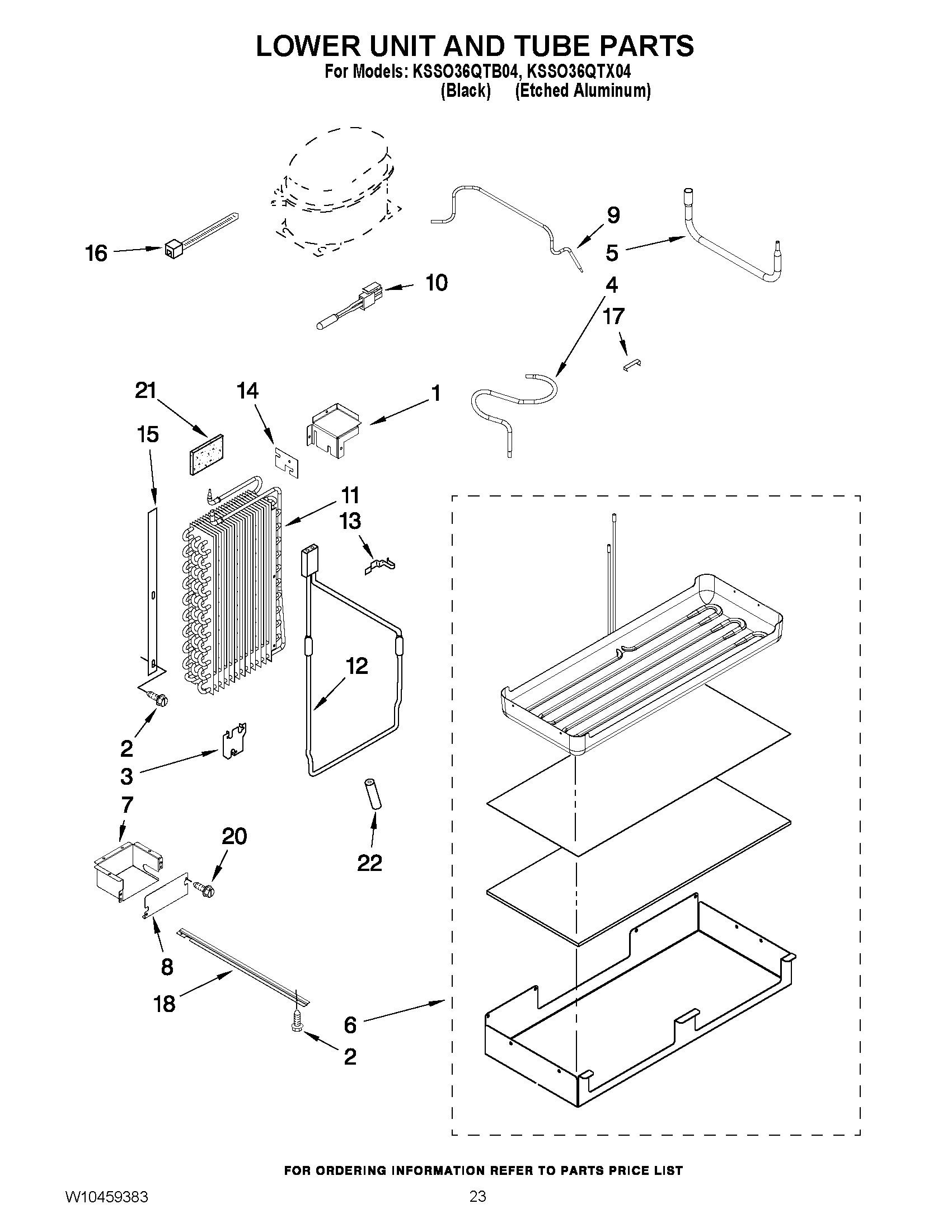

KSSO36QTB04 14 – LOWER UNIT AND TUBE PARTS

KSSO36QTB04 14 – LOWER UNIT AND TUBE PARTS

Written by

in

KSSO36QTB04 14 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1Bracket Assembly, Return Air
2W11624204 Whirlpool Screw
3W10157752 Whirlpool Bracket
4W10306442 Whirlpool Refrigerator Tube
5W10388653 Whirlpool Refrigerator Tube
6WPW10281063 Whirlpool Refrigerator Heater Pan
7WPW10309012 Whirlpool Wire Cover
8WIRE BOX COVER
9W10412487 Whirlpool Refrigerator Tube
10WP2188820 Whirlpool Refrigerator Thermistor
11Evaporator
12W10140160 Whirlpool Refrigerator Heater
131113048 Whirlpool Refrigerator Clamp
14W10139908 Whirlpool Seal
15Gasket, Evaporator
16WPW10339879 Whirlpool Wire Tie
17W10169509 Whirlpool Refrigerator Clip
182320554 Whirlpool Bracket
20WP489069 Whirlpool Compactor Screw
21INSULATION
222215648 Whirlpool Refrigerator Dampener
