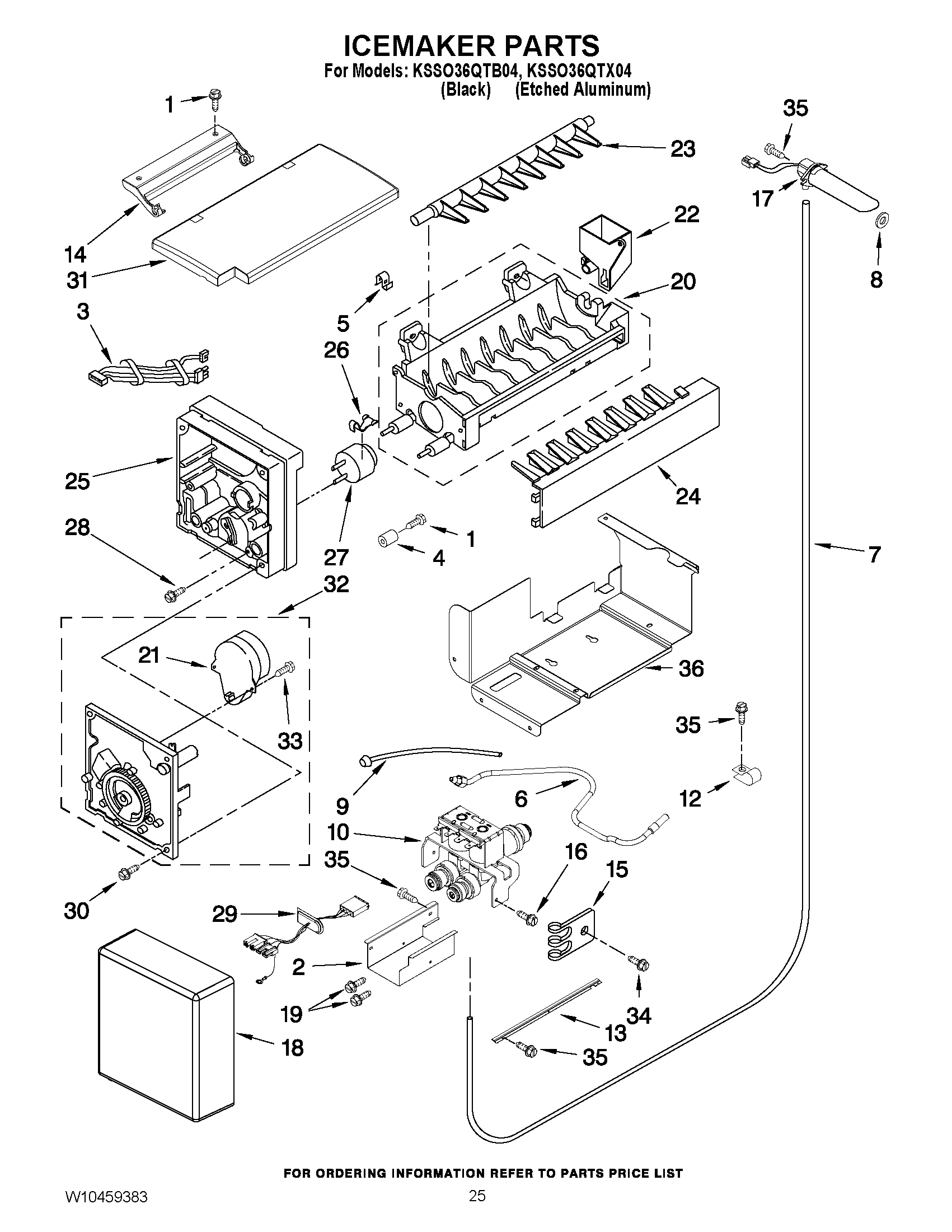

KSSO36QTB04 15 – ICEMAKER PARTS

Products

Position	Product
NI	ACCESSORIES, SS CLEANER
NI	W10129081 Whirlpool Refrigerator Handle
NI	WPW10519441 Whirlpool Refrigerator Ice Container
2	Shield, Valve
3	2310192 Whirlpool Refrigerator Wire Harness
4	2252354 Whirlpool Spacer Assembly
5	WP628379 Whirlpool Refrigerator Clip
6	W11565275 Whirlpool Refrigerator Water Tube
7	Water Tube
8	Seal Gasket
9	W11533506 Whirlpool Refrigerator Water Tube
10	WPW10159843 Whirlpool Refrigerator Inlet Valve
12	W10833902 Whirlpool Refrigerator Clamp
13	Support, Valve
14	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
15	WP488366 Whirlpool Refrigerator Clamp
16	WP489069 Whirlpool Compactor Screw
17	W10460127 Whirlpool Refrigerator Inlet Tube
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141604 Whirlpool Screw
20	WPW10122550 Whirlpool Refrigerator Ice Mold
21	CABINET (NOT A SERVICEABLE PART)
22	W10122561 Whirlpool Refrigerator Cup Fill
23	626753 Whirlpool Refrigerator Ejector Arm
24	WPW10272164 Whirlpool Strip Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
29	W10139199 Whirlpool Refrigerator Wire Harness
30	WP681249 Whirlpool Screw Assembly
31	W10504752 Whirlpool Refrigerator Ice Door
32	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
33	489136 Whirlpool Refrigerator Screw
34	SCREW
35	W11624204 Whirlpool Screw
36	2300167 Whirlpool Bracket
100	WPW10277449 Whirlpool Refrigerator Ice Maker
