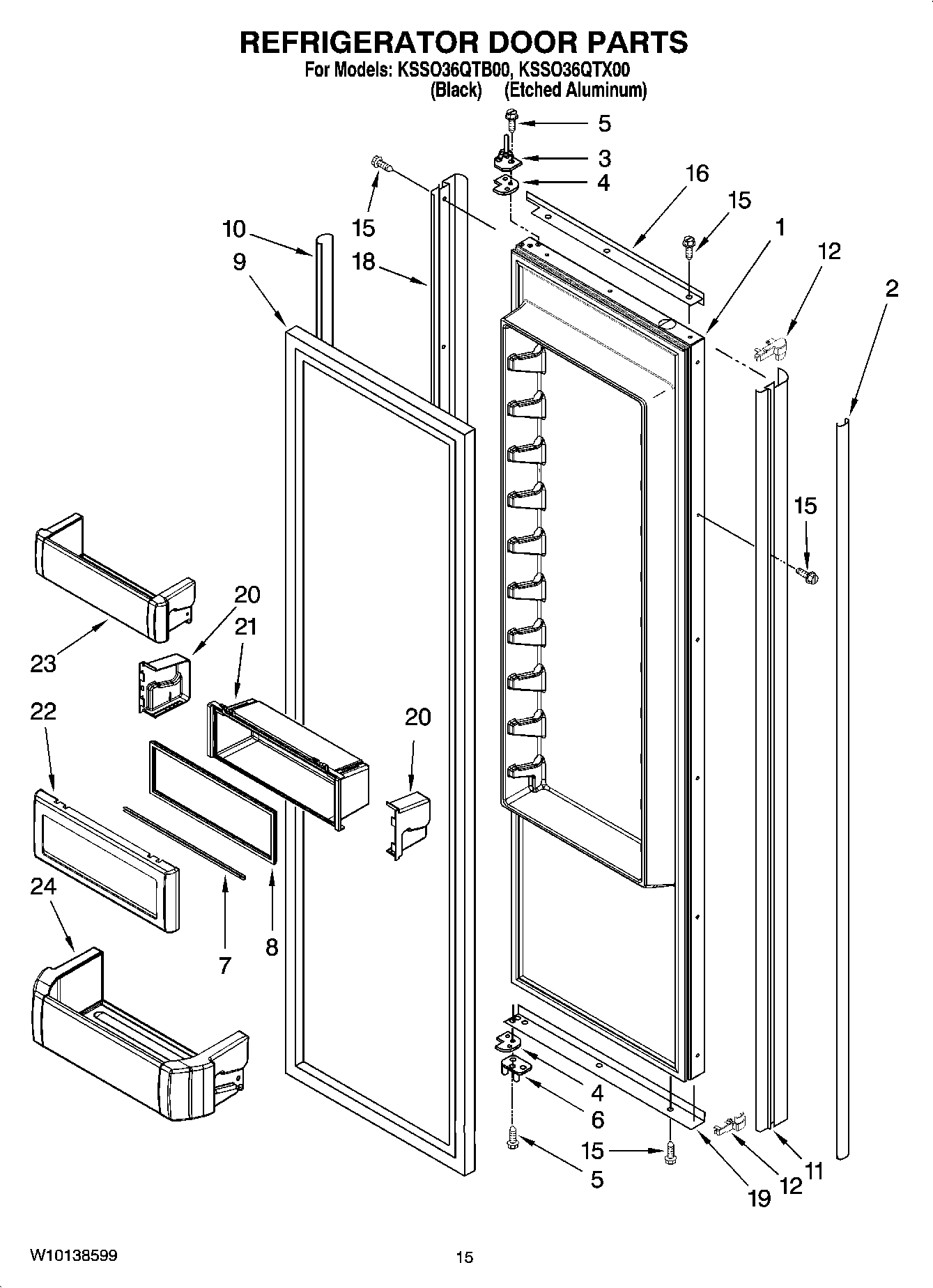

KSSO36QTX00 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW10193489 Whirlpool Refrigerator Black Foam In Place Door
2	2314003S Whirlpool Refrigerator Trim Cover
2	Trim, Screw Cover (Handle Side) (Black)
3	2252295B Whirlpool Refrigerator Door Hinge
3	Hinge Assy, Top (Chrome)
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	2252293 Whirlpool Refrigerator Door Hinge
6	2252293B Whirlpool Door Hinge
7	2222795 Whirlpool Refrigerator Rail
8	WP2222981 Whirlpool Refrigerator Gasket
9	WP2266901 Whirlpool Door Gasket
10	Trim, Screw Cover (Hinge Side) (Black)
10	2259448S Whirlpool Refrigerator Trim Cover
11	Trim-Door, (Handle Side) (Black)
11	2309497S Whirlpool Refrigerator Door Trim
12	2207457 Whirlpool Refrigerator Door Trim
12	Corner Trim (Black)
15	W10851443 Whirlpool Refrigerator Screw
15	WP8281250 Whirlpool Refrigerator Screw
16	2309485S Whirlpool Refrigerator Door Trim
16	Trim-Door, Top (Black)
18	2309498S Whirlpool Refrigerator Door Trim
18	Trim-Door, (Hinge Side) (Black)
19	Trim-Door, Btm (Black)
19	2309491S Whirlpool Refrigerator Door Trim
20	WPW10323173 Whirlpool Refrigerator Retainer End Cap
20	WPW10323172 Whirlpool Refrigerator Retainer End Cap
21	WPW10323035 Whirlpool Refrigerator Cantilever Bin
22	WPW10131132 Whirlpool Refrigerator Door Compressor
23	W10323598 Whirlpool Refrigerator Cantilever Bin
24	W10323746 Whirlpool Refrigerator Cantilever Bin
