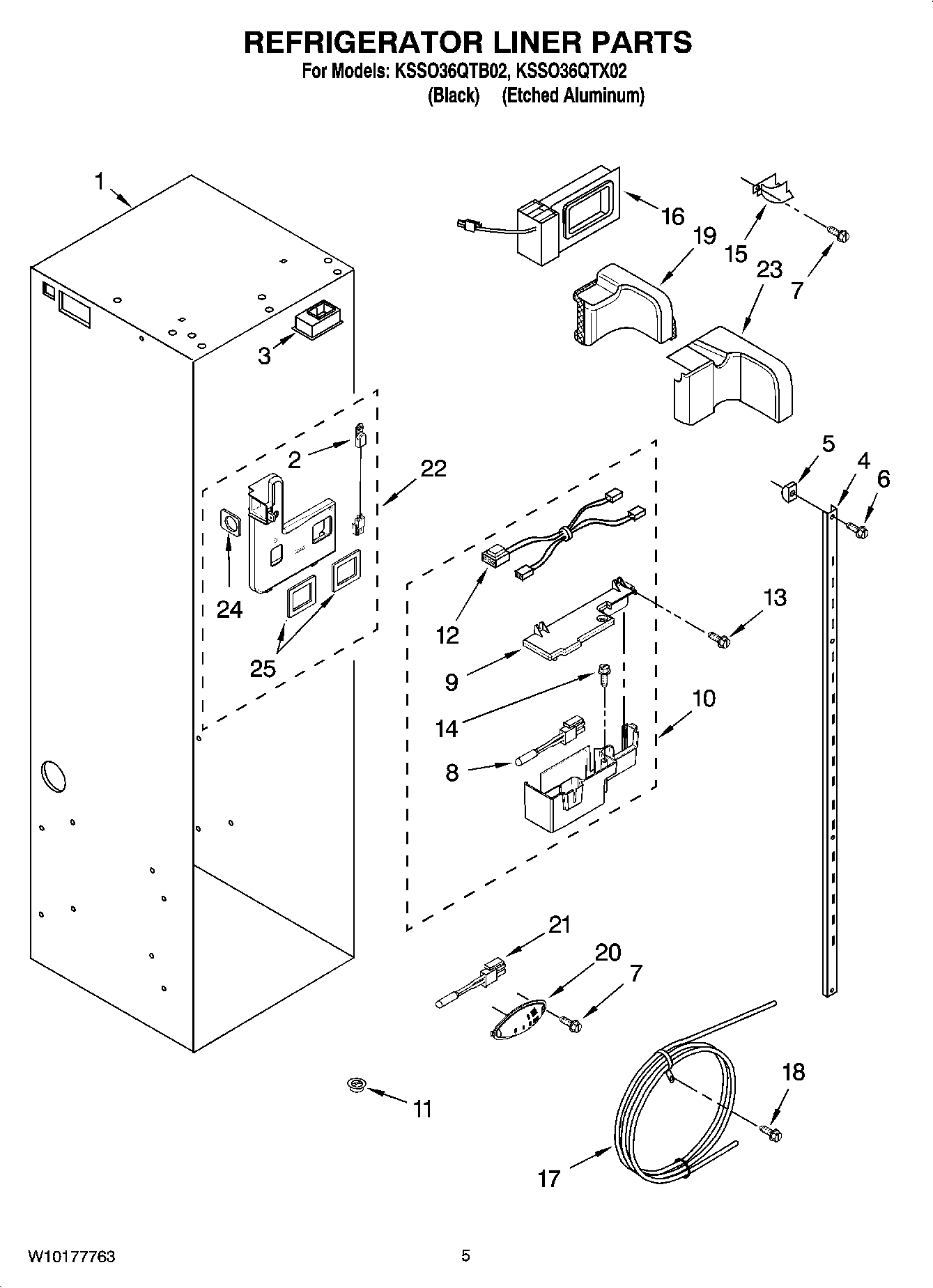

KSSO36QTX02 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2306010 Whirlpool Refrigerator Thermistor
3	2208970 Whirlpool Refrigerator Air Duct
4	WP2259077 Whirlpool Ladder Assembly
5	520965 Whirlpool Refrigerator Support
6	2006475 Whirlpool Refrigerator Screw
7	WP488729 Whirlpool Refrigerator Door Screw
8	WP2302937 Whirlpool Refrigerator Thermistor
9	2302986 Whirlpool Refrigerator Cover
10	WPW10169528 Whirlpool Refrigerator Diffuser
11	2171846 Whirlpool Refrigerator Release Valve
12	2310205 Whirlpool Wire Jumper
13	Screw, 8 x 1-1/4 (3)
14	W11624204 Whirlpool Screw
15	2003577 Whirlpool Refrigerator Guard
16	WP2221296 Whirlpool Air Baffle
17	W10645131 Whirlpool Refrigerator Reservoir
18	Screw (2)
19	WP2309222 Whirlpool Refrigerator Diffuser
20	WP2317844 Whirlpool Refrigerator Cover
21	WP2188820 Whirlpool Refrigerator Thermistor
22	W10475010 Whirlpool Refrigerator Spacer
23	2309087 Whirlpool Refrigerator Cover
24	Seal, Air Duct (Round Hole)
25	2259398 Whirlpool Refrigerator Seal
