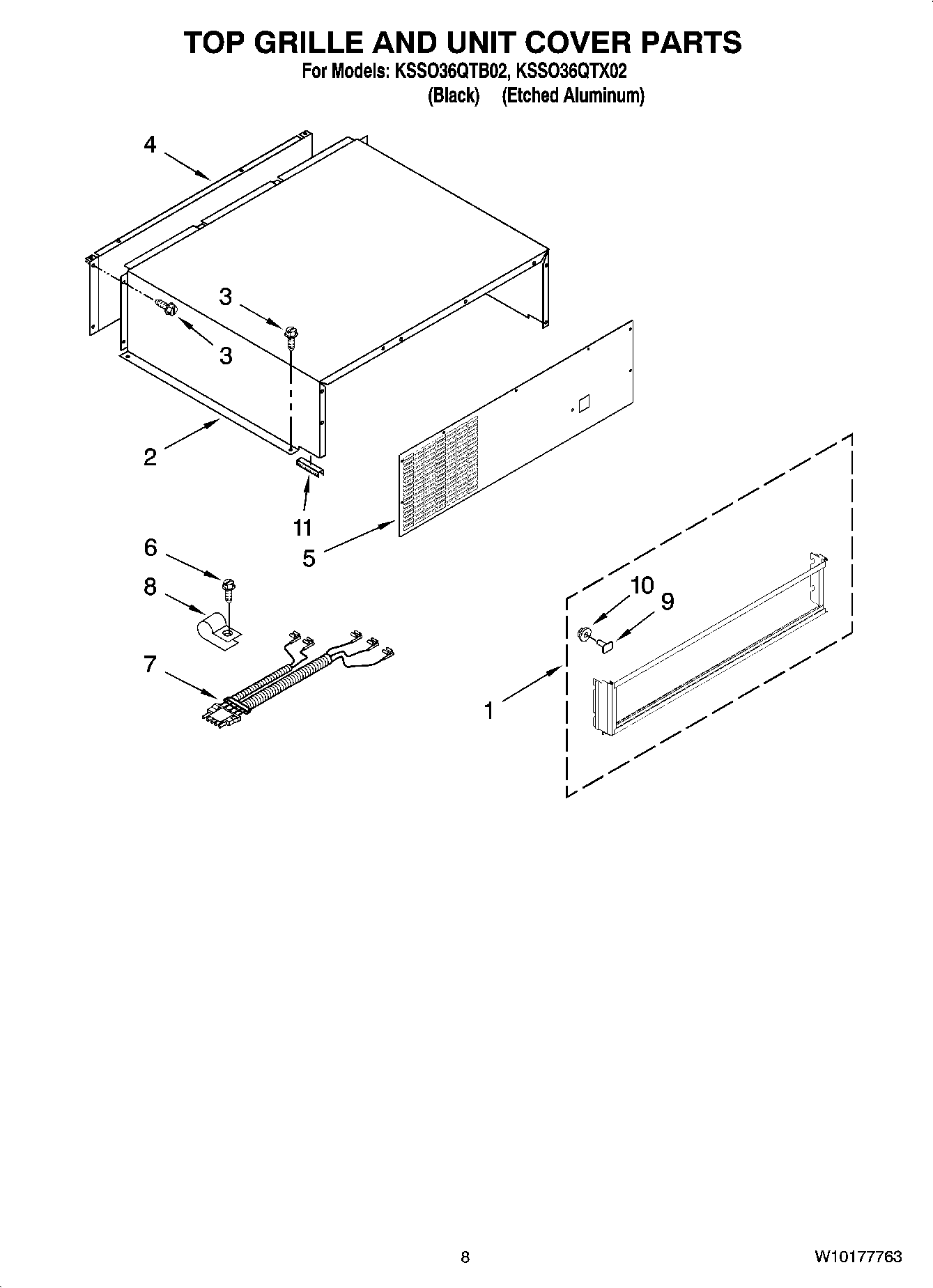

KSSO36QTX02 06 – TOP GRILLE AND UNIT COVER PARTS

KSSO36QTX02 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSO36QTX02 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Top Grille Assy (Black)
12313977S Whirlpool Grill Upper
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Cover, Unit Front
6WP965173 Whirlpool Dishwasher Screw
7WIRE ASSEMBLY RC/FC LIGHT SWITCH
8489348 Whirlpool Refrigerator Tube Clamp
92003347 Whirlpool Screw
10WP488130 Whirlpool Air Conditioner Nut
112215910 Whirlpool Refrigerator Grommet
