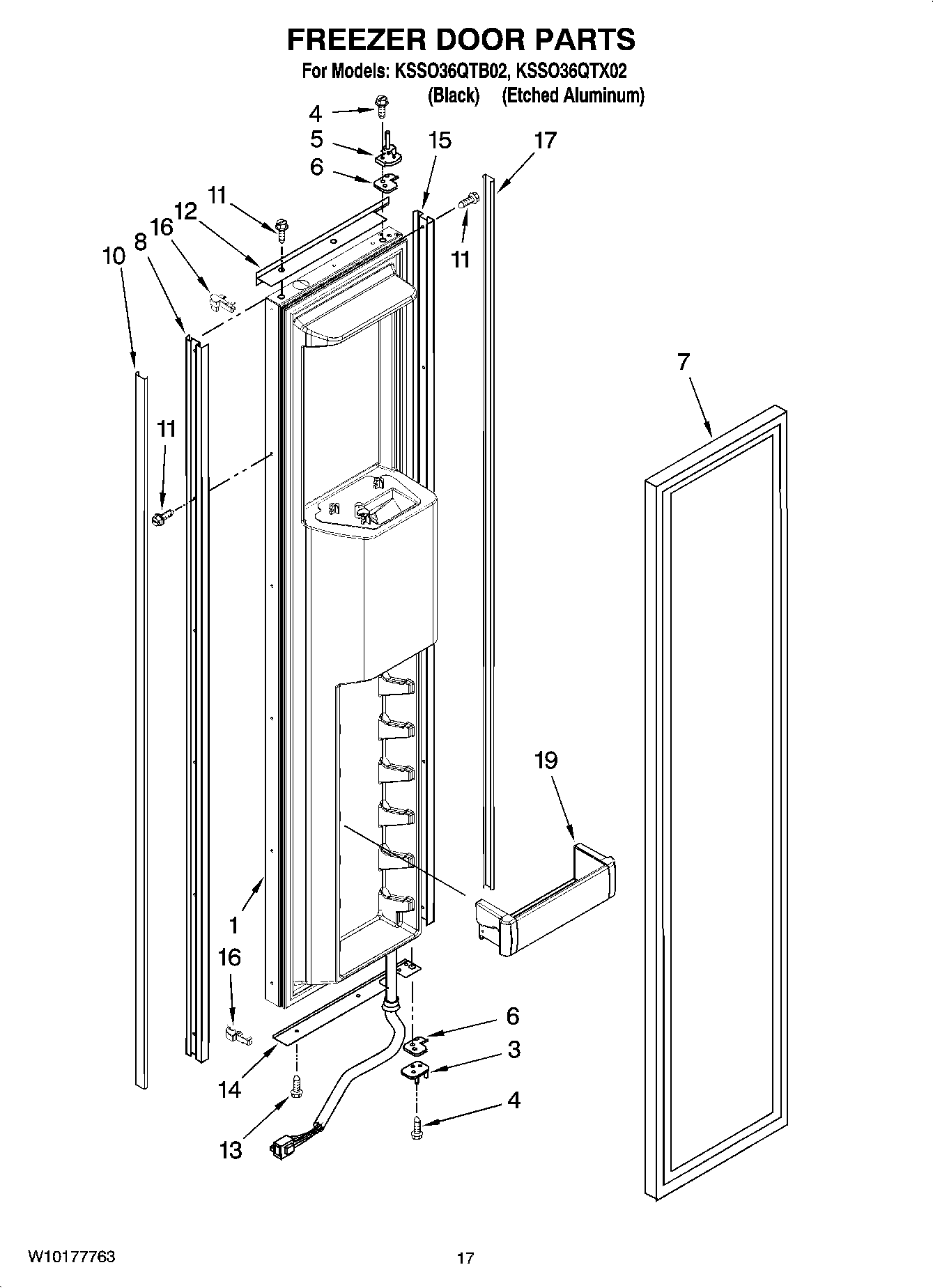

KSSO36QTX02 11 – FREEZER DOOR PARTS

KSSO36QTX02 11 – FREEZER DOOR PARTS

Written by

in

KSSO36QTX02 11 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 14) (Universal Silver)
1Freezer Door (Includes 14) (Black)
32252294B Whirlpool Refrigerator Door Hinge
32252294 Whirlpool Refrigerator Door Hinge
4W11474472 Whirlpool Screw
52252295B Whirlpool Refrigerator Door Hinge
5Hinge Assy, Top (Chrome)
6W11673500 Whirlpool Door Hinge
7W11624976 Whirlpool Refrigerator FIP Gasket
82309497S Whirlpool Refrigerator Door Trim
8Trim-Door, (Handle Side) (Black)
10Trim, Screw Cover (Handle Side) (Black)
102314003S Whirlpool Refrigerator Trim Cover
11WP8281250 Whirlpool Refrigerator Screw
11W10851443 Whirlpool Refrigerator Screw
12Trim-Door, Top (Black)
122309488S Whirlpool Door Trim
13W10759522 Whirlpool Screw
14TRIM, BOTTOM DOOR
14Trim-Door, Btm (Black)
152309498S Whirlpool Refrigerator Door Trim
15Trim-Door, (Hinge Side) (Black)
16Corner Trim (Black)
162207457 Whirlpool Refrigerator Door Trim
172259448S Whirlpool Refrigerator Trim Cover
17Trim, Screw Cover (Hinge Side) (Black)
19W10323601 Whirlpool Refrigerator Cantilever Bin
