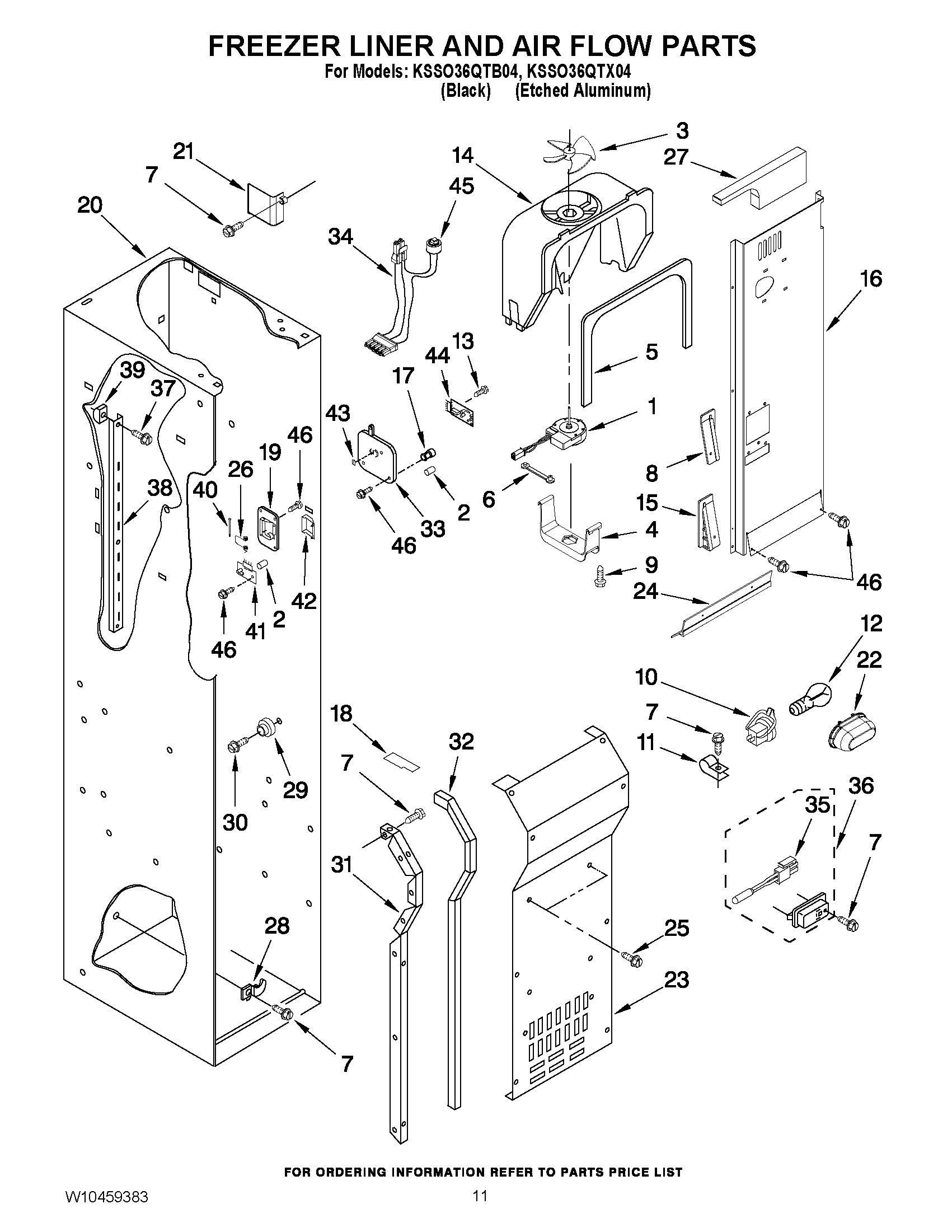

KSSO36QTX04 08 – FREEZER LINER AND AIR FLOW PARTS

Products

Position	Product
1	Motor, Fan
2	Tube, P.C. Board
3	WP2169142 Whirlpool Fan Blade
4	8201663 Whirlpool Refrigerator Primary Fan Blade
5	WP2302817 Whirlpool Refrigerator Gasket
6	W11669856 Whirlpool Grommet
7	W11624204 Whirlpool Screw
8	2259464 Whirlpool Refrigerator Wedge
9	WPW10141604 Whirlpool Screw
10	WPW10191429 Whirlpool Refrigerator Socket
11	489348 Whirlpool Refrigerator Tube Clamp
12	WPA3073101 Whirlpool Light Bulb
13	2006254 Whirlpool Refrigerator Screw
14	W11254898 Whirlpool Refrigerator Scroll Fan
15	2259465 Whirlpool Refrigerator Wedge
16	Air Duct
17	WP2198643 Whirlpool Refrigerator Lens
18	8201798 Whirlpool Refrigerator Fan Block
18	2209066 Whirlpool Refrigerator Fan Block
19	WP2215650 Whirlpool Refrigerator Cover
20	CABINET (NOT A SERVICEABLE PART)
21	2259025 Whirlpool Refrigerator Air Cover
22	Light Shield
23	Cover, Evaporator
24	Support, Air Duct
25	Screw 8-15 x 1/2 (White)
26	WP2198635 Whirlpool Refrigerator Spring
27	Deflector, Air Duct
28	1112260 Whirlpool EV Support
29	WP2196483 Whirlpool Refrigerator Shelf Stud
30	WPW10191952 Whirlpool Refrigerator Screw
31	2259355 Whirlpool Refrigerator Evaporator Rail
31	Evaporator, Cover Rail (Left Side)
32	2220904 Whirlpool Refrigerator Gasket
33	2259493 Whirlpool Refrigerator Cover
34	W10139189 Whirlpool Refrigerator Wire Harness
35	WP2306010 Whirlpool Refrigerator Thermistor
36	WP2317844 Whirlpool Refrigerator Cover
37	2006475 Whirlpool Refrigerator Screw
38	WP2259032 Whirlpool Ladder
39	Support, Screw
40	WP2198634 Whirlpool Door Pin
41	W10757851-includeCORE Whirlpool Electronic Control+Core
42	WP2198633 Whirlpool Refrigerator Flipper
43	2255563 Whirlpool Refrigerator Slide
45	WPW10160570 Whirlpool Refrigerator Bimetallic Defrost
46	WPW10142283 Whirlpool Refrigerator Screw
