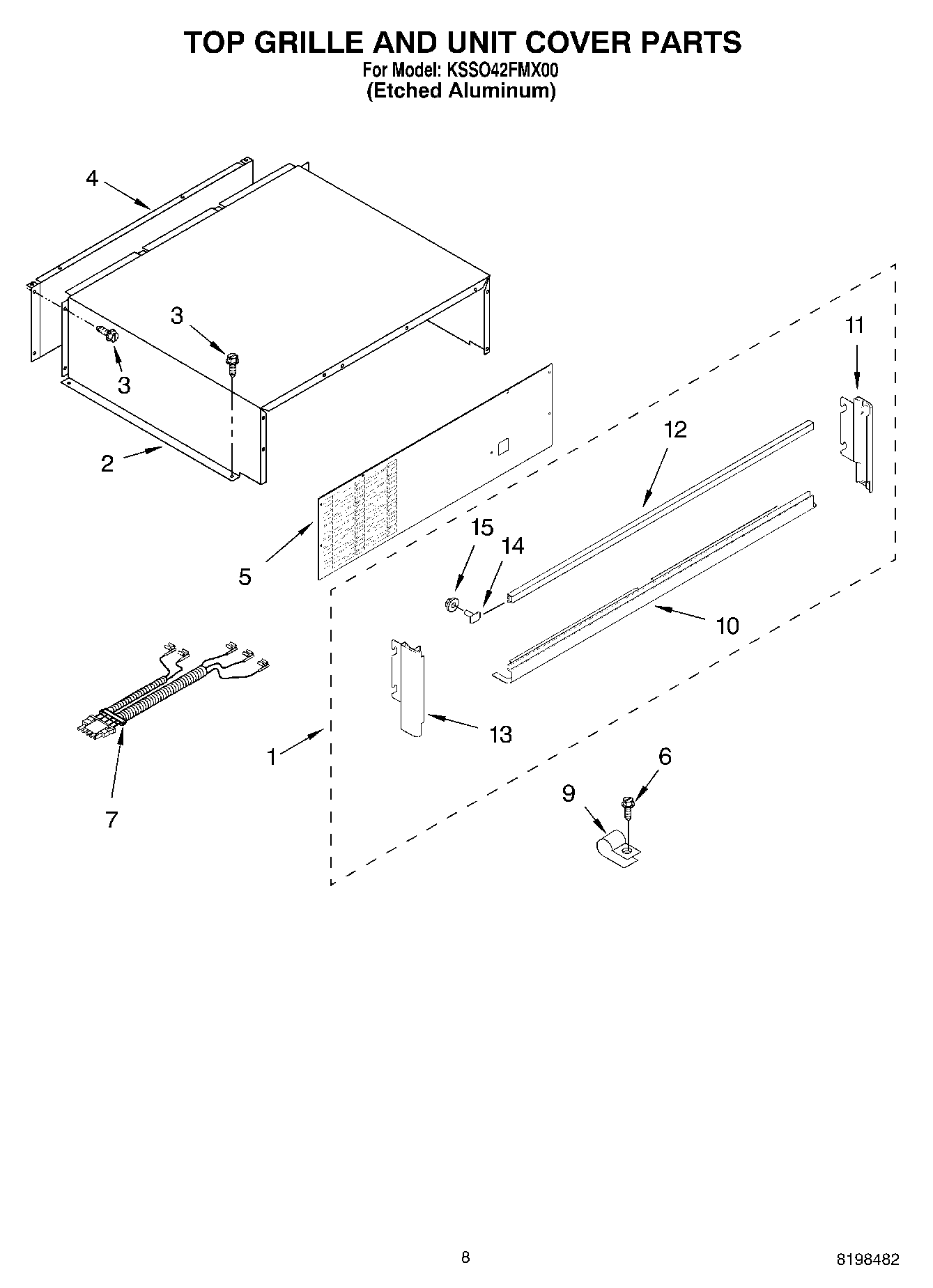

KSSO42FMX00 06 – TOP GRILLE AND UNIT COVER PARTS

KSSO42FMX00 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSO42FMX00 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Panel, Decorative Assembly
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Front, Unit Cover
6WP965173 Whirlpool Dishwasher Screw
7Wire Assembly RC/FC Light Switch
9489348 Whirlpool Refrigerator Tube Clamp
10Grille-Trim, Bottom
11Trim-Grille, Right Side (Etched Aluminum)
12Grille-Trim, Top
13Trim-Grille, Left Side (Etched Aluminum)
142003347 Whirlpool Screw
15WP488130 Whirlpool Air Conditioner Nut
