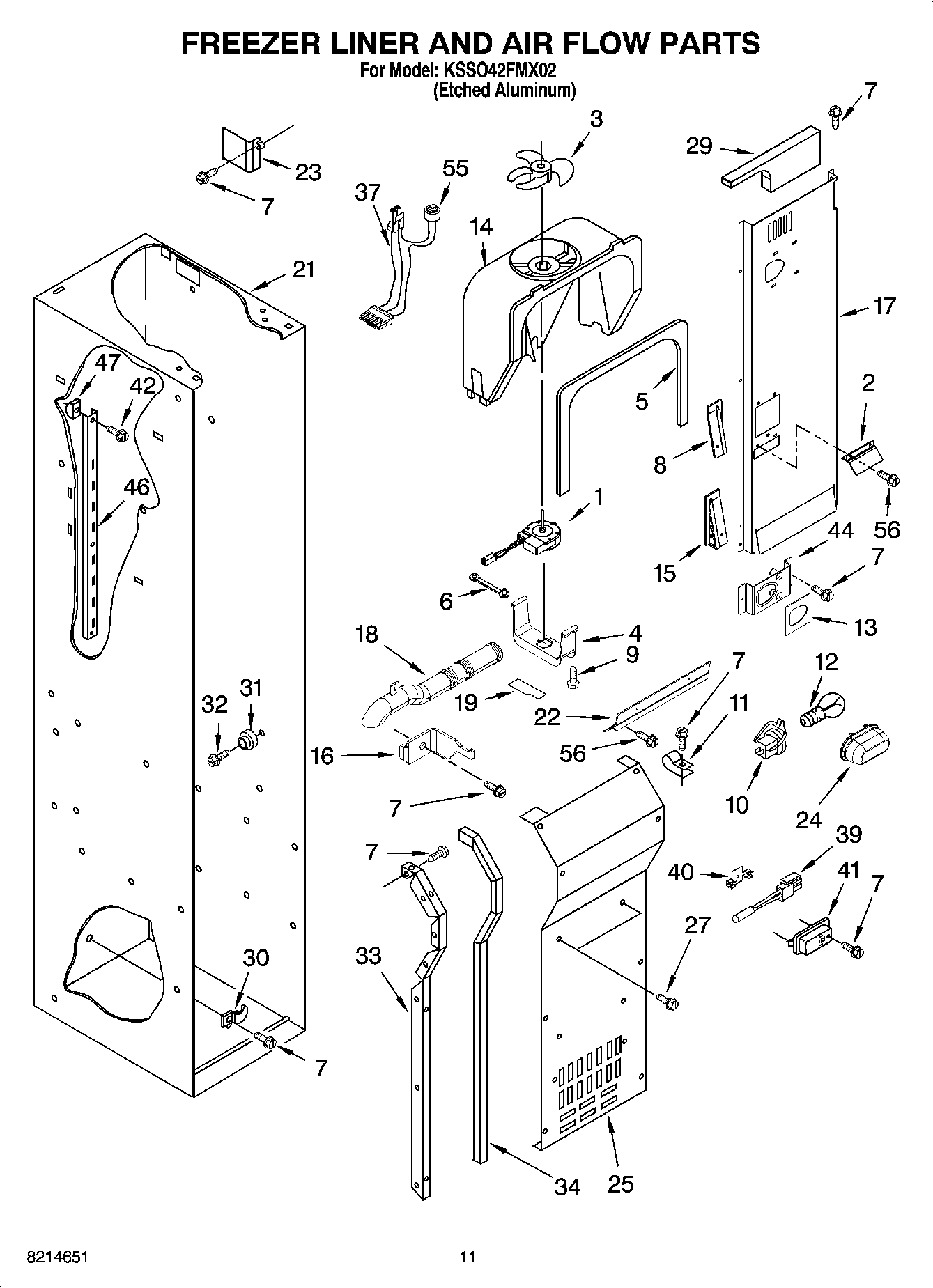

KSSO42FMX02 08 – FREEZER LINER AND AIR FLOW PARTS

Products

Position	Product
1	Motor, Fan
2	2266801 Whirlpool Refrigerator Deflector
3	WP2169142 Whirlpool Fan Blade
4	8201663 Whirlpool Refrigerator Primary Fan Blade
5	WP2302817 Whirlpool Refrigerator Gasket
6	W11669856 Whirlpool Grommet
7	W11624204 Whirlpool Screw
8	2259464 Whirlpool Refrigerator Wedge
9	WP489128 Whirlpool Refrigerator Screw
10	4387478 Whirlpool Refrigerator Light Socket
11	Clamp, Tube
12	RANGE ONLY 40W 120V APPL BULB
13	Seal-Light, Socket
14	WP2182120 Whirlpool Refrigerator Scroll Fan
15	2259465 Whirlpool Refrigerator Wedge
16	Bracket, Vent Tube
17	Assembly, Air Duct
18	Tube, Vent
19	8201798 Whirlpool Refrigerator Fan Block
19	2209066 Whirlpool Refrigerator Fan Block
21	Liner (Not A Serviceable Part)
22	2302850 Whirlpool Refrigerator Support
23	2259025 Whirlpool Refrigerator Air Cover
24	Light Shield
25	Cover, Evaporator
27	WP8281163 Whirlpool Refrigerator Screw
29	Deflector, Air Duct
30	1112260 Whirlpool EV Support
31	WP2196483 Whirlpool Refrigerator Shelf Stud
32	WP3400806 Whirlpool Screw
33	2259355 Whirlpool Refrigerator Evaporator Rail
33	Evaporator, Cover Rail (Left Side)
34	2220904 Whirlpool Refrigerator Gasket
37	Harness, Evap Fan (Includes Item 55)
39	WP2188820 Whirlpool Refrigerator Thermistor
40	Clip, Thermistor
41	1116793 Whirlpool Refrigerator Cover
42	2006475 Whirlpool Refrigerator Screw
44	Bracket, Light
46	WP2259032 Whirlpool Ladder
47	2259445 Whirlpool Support Assembly
55	WP2306462 Whirlpool Refrigerator Bimetallic Defrost
56	WPW10142283 Whirlpool Refrigerator Screw
