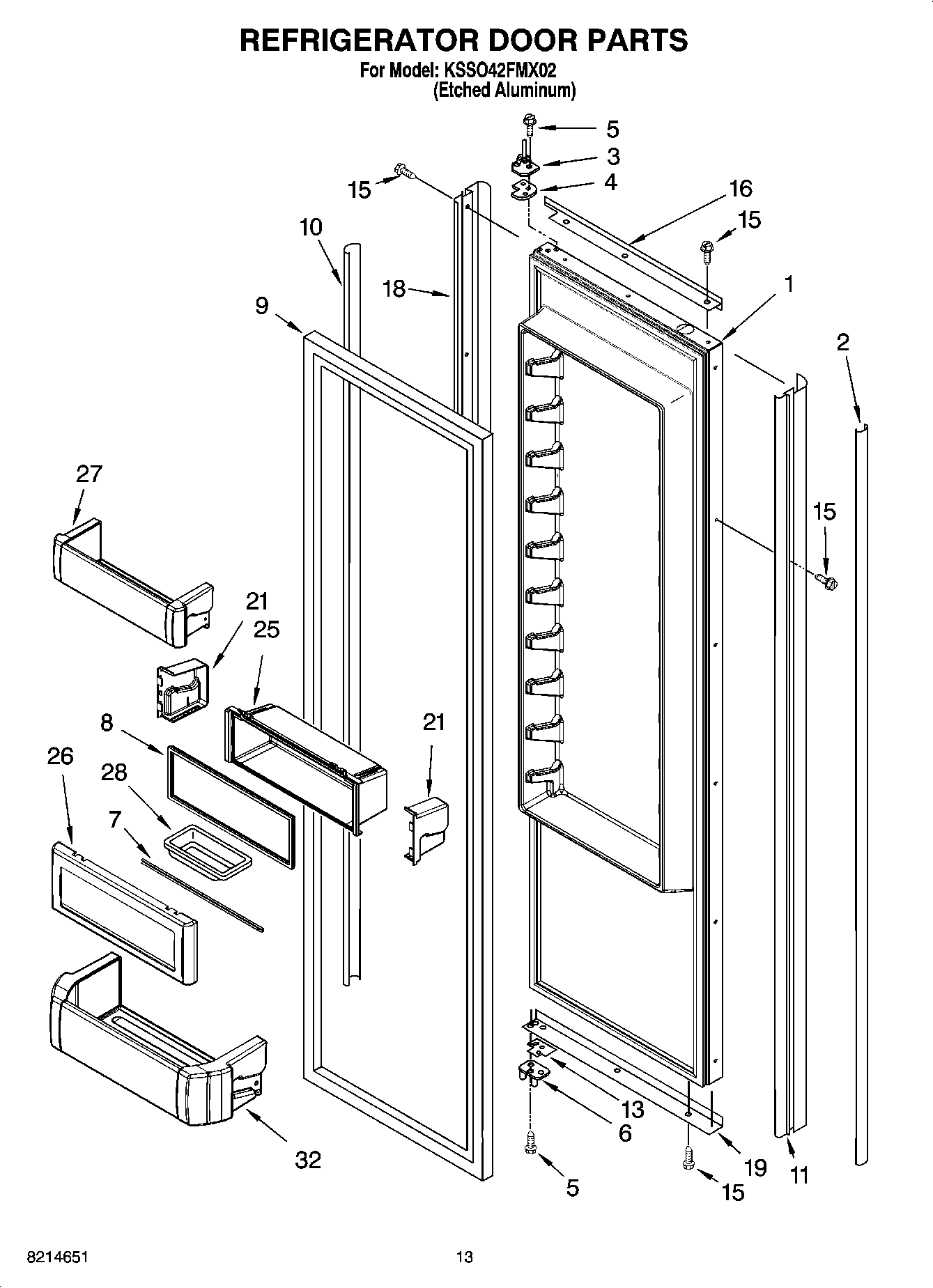

KSSO42FMX02 09 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 9)
2Cover, Screw
3W11724512 Whirlpool Door Hinge
4Spacer-Hinge, Top
5W11474472 Whirlpool Screw
62302878 Whirlpool Refrigerator Door Hinge
7W11448696 Whirlpool Refrigerator Bin
8Gasket, Utility Bin
9WP2266902 Whirlpool Refrigerator Door Gasket
10Cover, Screw (Handle Side) (Etched Aluminum)
11Trim, Door (Handle Side) (Etched Aluminum)
13Door Spacer, Bottom
15WP8281250 Whirlpool Refrigerator Screw
16Trim (Top) (Etched Aluminum)
18Trim-Door, (Hinge Side)
19Trim (Bottom) (Etched Aluminum)
21WPW10323172 Whirlpool Refrigerator Retainer End Cap
21WPW10323173 Whirlpool Refrigerator Retainer End Cap
25W10323042 Whirlpool Cantilever Bin
26W11553221 Whirlpool Refrigerator Door Compressor
27W10323599 Whirlpool Refrigerator Cantilever Bin
28Butter Tray
32W10323747 Whirlpool Refrigerator Cantilever Bin
