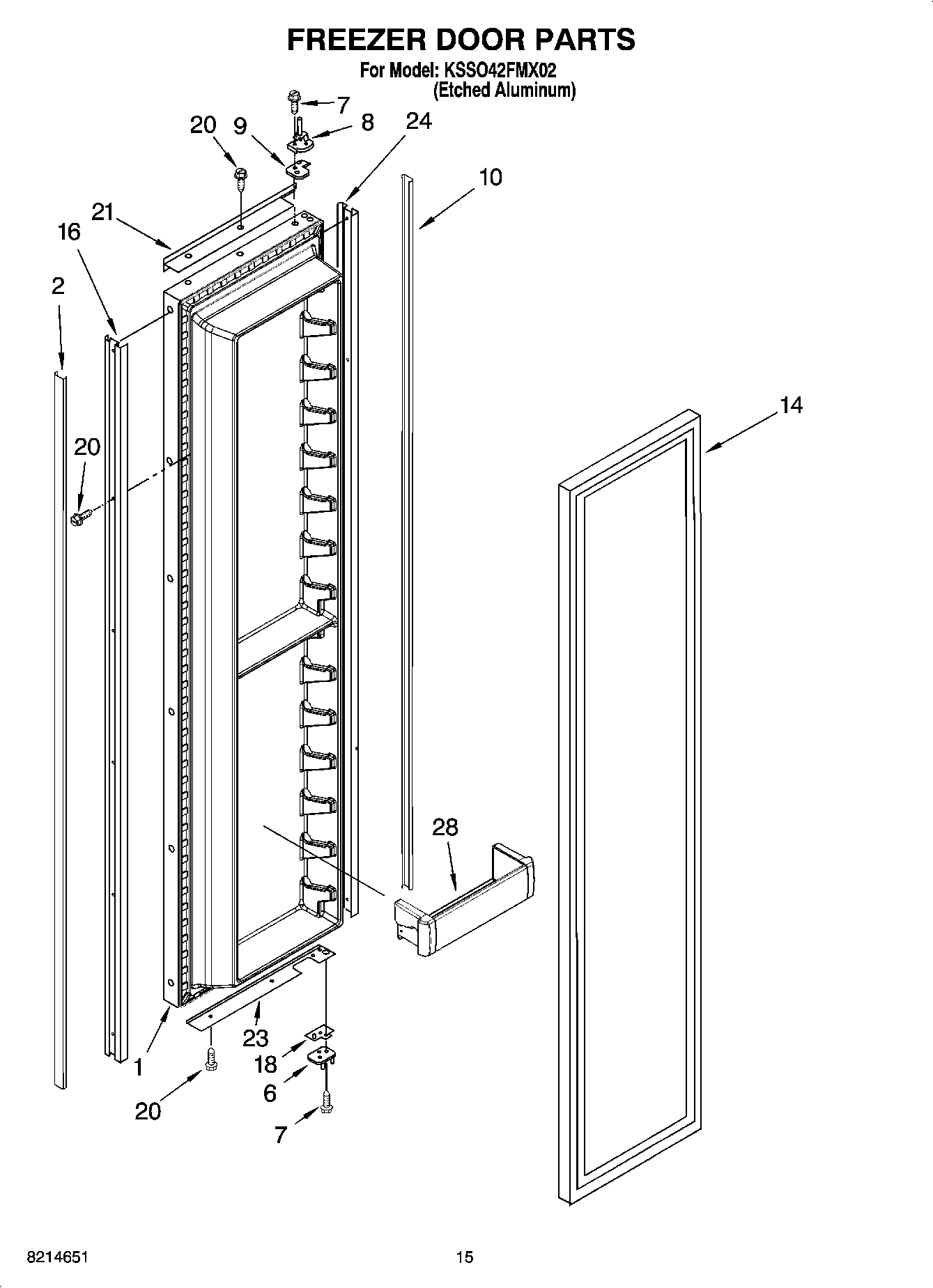

KSSO42FMX02 10 – FREEZER DOOR PARTS

KSSO42FMX02 10 – FREEZER DOOR PARTS

Written by

in

KSSO42FMX02 10 – FREEZER DOOR PARTS

Products

PositionProduct
1LW10193486 Whirlpool Refrigerator FIP Stainless Steel Door
2Cover, Screw
6HINGE-DOOR
7W11474472 Whirlpool Screw
8W11724512 Whirlpool Door Hinge
9Spacer-Hinge, Top
10Cover, Screw (Handle Side) (Etched Aluminum)
14WP2266905 Whirlpool Refrigerator Door Gasket
16Trim, Door (Handle Side) (Etched Aluminum)
18Door Spacer, Bottom
20WP8281250 Whirlpool Refrigerator Screw
212005020 Whirlpool Refrigerator Door Trim
23Trim (Bottom) (Etched Aluminum)
24Trim-Door, (Hinge Side)
28W10323602 Whirlpool Refrigerator Cantilever Bin
