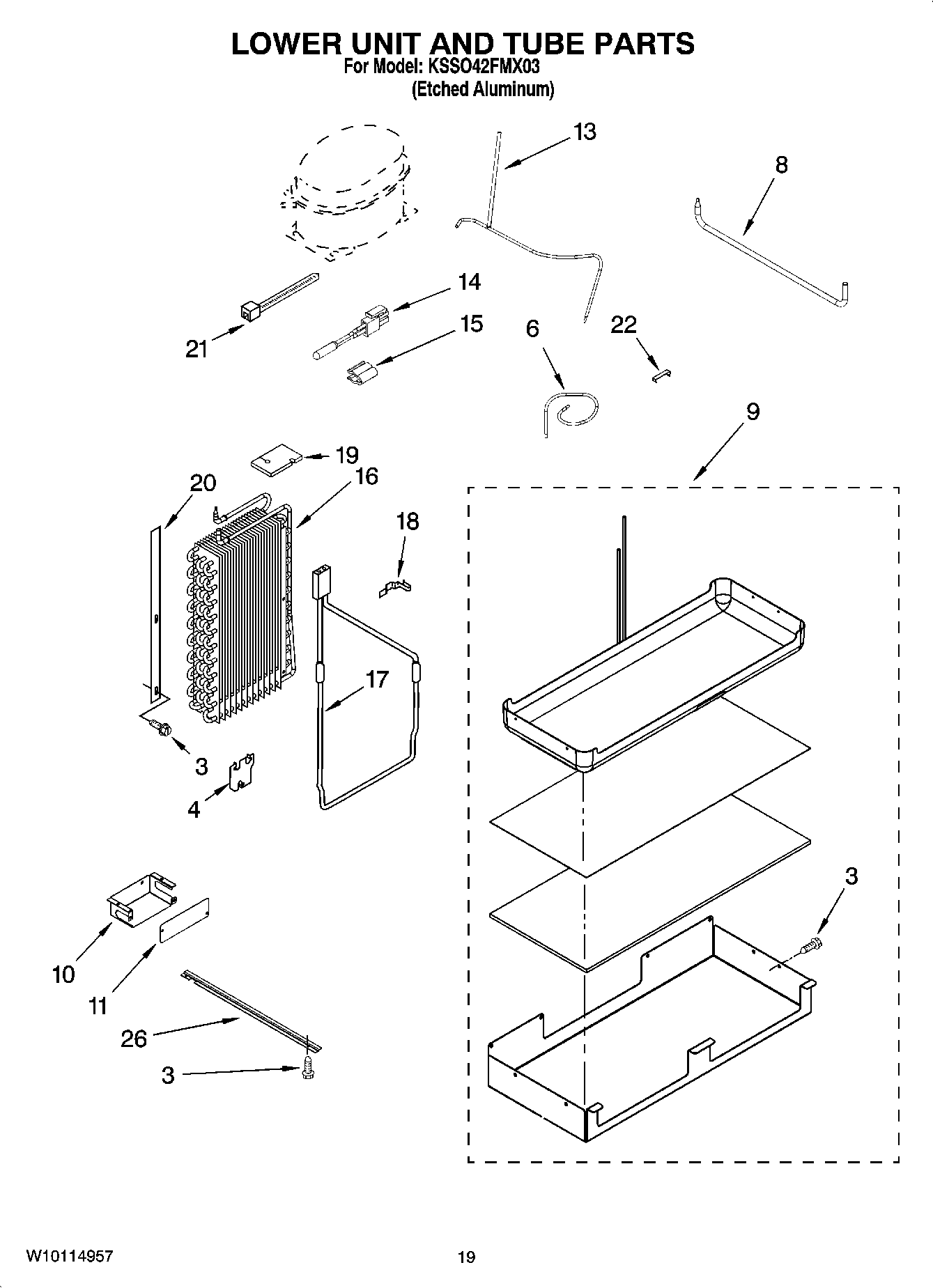

KSSO42FMX03 12 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
3	W11624204 Whirlpool Screw
4	Bracket
6	Suction Tube
8	Tube, Transition (Drier/Restrictor)
9	WPW10281063 Whirlpool Refrigerator Heater Pan
10	Cover, Wiring
11	Cover, Box
13	W10624429 Whirlpool Refrigerator Tube
14	WP2302937 Whirlpool Refrigerator Thermistor
15	9791833 Whirlpool Refrigerator Clip
16	WP2306093 Whirlpool Evaporator
17	WP2306388 Whirlpool Refrigerator Heater
18	1113048 Whirlpool Refrigerator Clamp
19	8201798 Whirlpool Refrigerator Fan Block
20	Gasket, Evaporator
21	WPW10339879 Whirlpool Wire Tie
22	W10169509 Whirlpool Refrigerator Clip
26	2320554 Whirlpool Bracket
