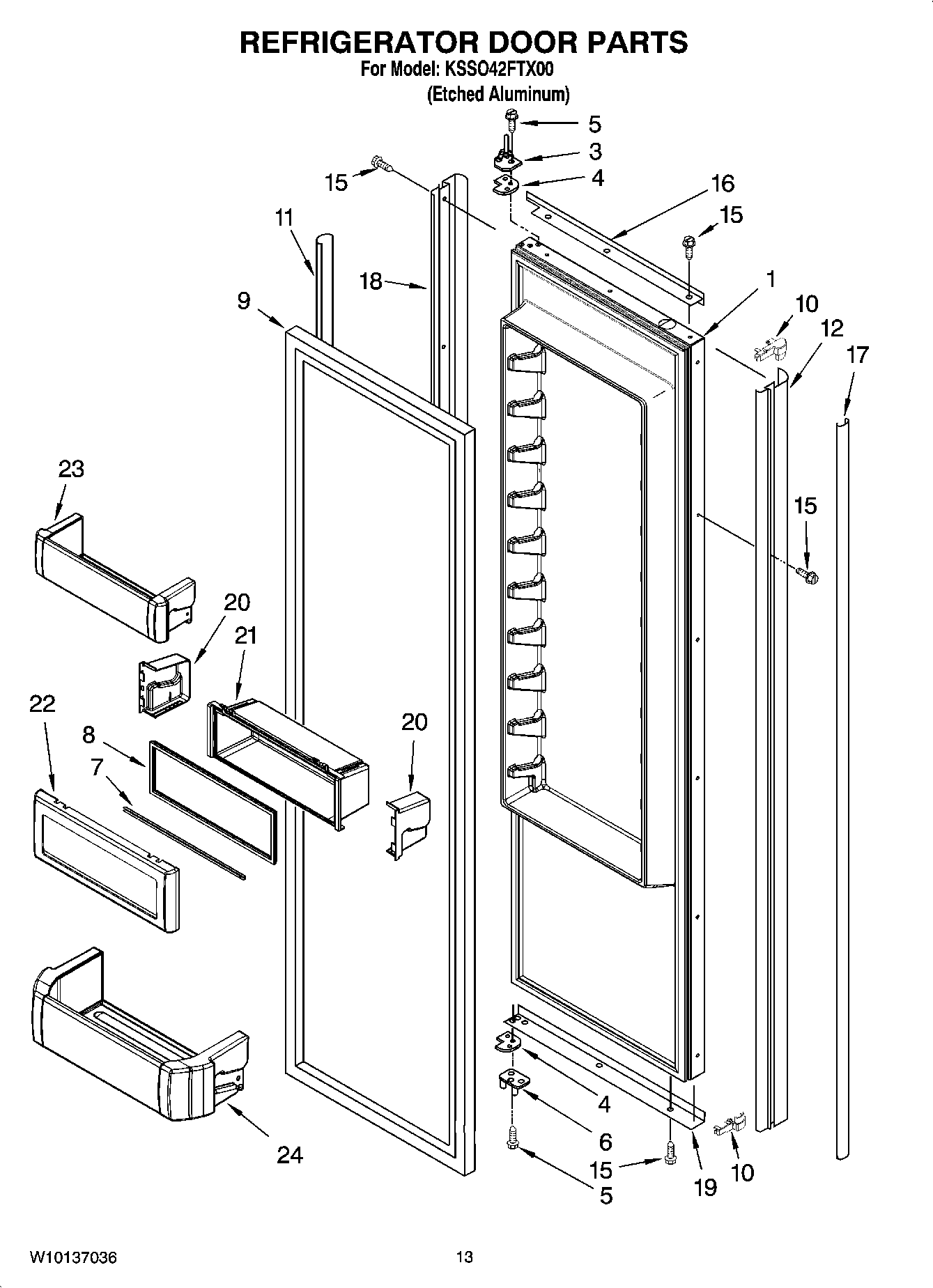

KSSO42FTX00 09 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
3	Hinge Assy, Top (Chrome)
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	2252293 Whirlpool Refrigerator Door Hinge
7	W11448696 Whirlpool Refrigerator Bin
8	Gasket, Utility Bin
9	WP2266902 Whirlpool Refrigerator Door Gasket
10	2207457 Whirlpool Refrigerator Door Trim
11	2259448S Whirlpool Refrigerator Trim Cover
12	2309497S Whirlpool Refrigerator Door Trim
15	WP8281250 Whirlpool Refrigerator Screw
16	2309486S Whirlpool Door Trim
17	2314003S Whirlpool Refrigerator Trim Cover
18	2309498S Whirlpool Refrigerator Door Trim
19	2309492S Whirlpool Door Trim
20	WPW10323173 Whirlpool Refrigerator Retainer End Cap
20	WPW10323172 Whirlpool Refrigerator Retainer End Cap
21	W10323042 Whirlpool Cantilever Bin
22	W11553221 Whirlpool Refrigerator Door Compressor
23	W10323599 Whirlpool Refrigerator Cantilever Bin
24	W10323747 Whirlpool Refrigerator Cantilever Bin
