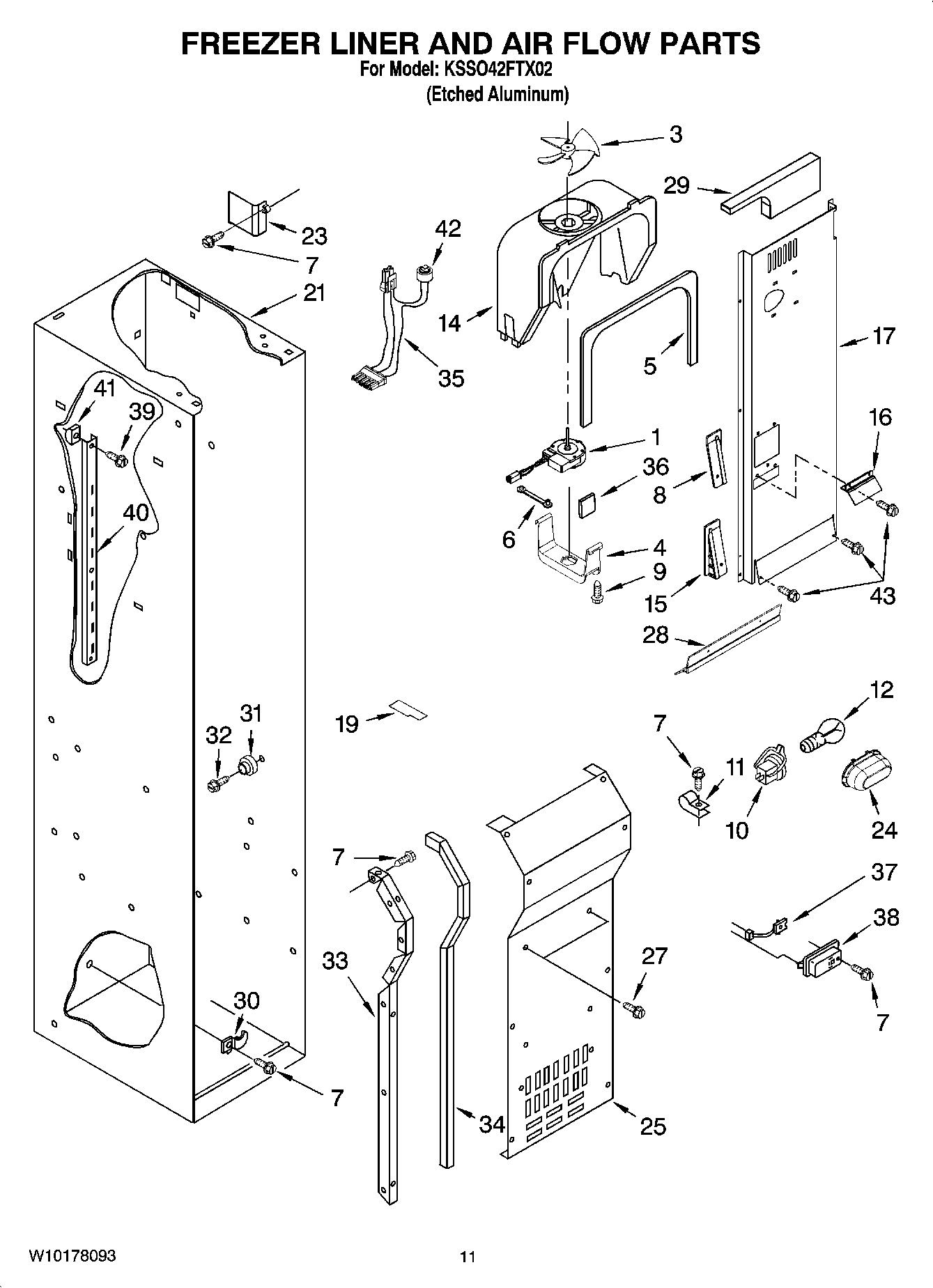

KSSO42FTX02 08 – FREEZER LINER AND AIR FLOW PARTS

Products

Position	Product
1	Motor, Fan
3	WP2169142 Whirlpool Fan Blade
4	8201663 Whirlpool Refrigerator Primary Fan Blade
5	WP2302817 Whirlpool Refrigerator Gasket
6	W11669856 Whirlpool Grommet
7	W11624204 Whirlpool Screw
8	2259464 Whirlpool Refrigerator Wedge
9	WP489128 Whirlpool Refrigerator Screw
10	WPW10191429 Whirlpool Refrigerator Socket
11	Clamp, Tube
12	WPA3073101 Whirlpool Light Bulb
14	WP2182120 Whirlpool Refrigerator Scroll Fan
15	2259465 Whirlpool Refrigerator Wedge
16	2266801 Whirlpool Refrigerator Deflector
17	Air Duct
19	8201798 Whirlpool Refrigerator Fan Block
19	2209066 Whirlpool Refrigerator Fan Block
21	Liner (Not A Serviceable Part)
23	2259025 Whirlpool Refrigerator Air Cover
24	Light Shield
25	Cover, Evaporator
27	WP8281163 Whirlpool Refrigerator Screw
28	2302850 Whirlpool Refrigerator Support
29	Deflector, Air Duct
30	1112260 Whirlpool EV Support
31	WP2196483 Whirlpool Refrigerator Shelf Stud
32	WP3400806 Whirlpool Screw
33	2259355 Whirlpool Refrigerator Evaporator Rail
33	Evaporator, Cover Rail (Left Side)
34	2220904 Whirlpool Refrigerator Gasket
35	W10139189 Whirlpool Refrigerator Wire Harness
36	W11553819 Whirlpool Refrigerator Insulation
37	WP2188820 Whirlpool Refrigerator Thermistor
38	WP2317844 Whirlpool Refrigerator Cover
39	2006475 Whirlpool Refrigerator Screw
40	WP2259032 Whirlpool Ladder
41	2259445 Whirlpool Support Assembly
42	WPW10160570 Whirlpool Refrigerator Bimetallic Defrost
43	WPW10142283 Whirlpool Refrigerator Screw
