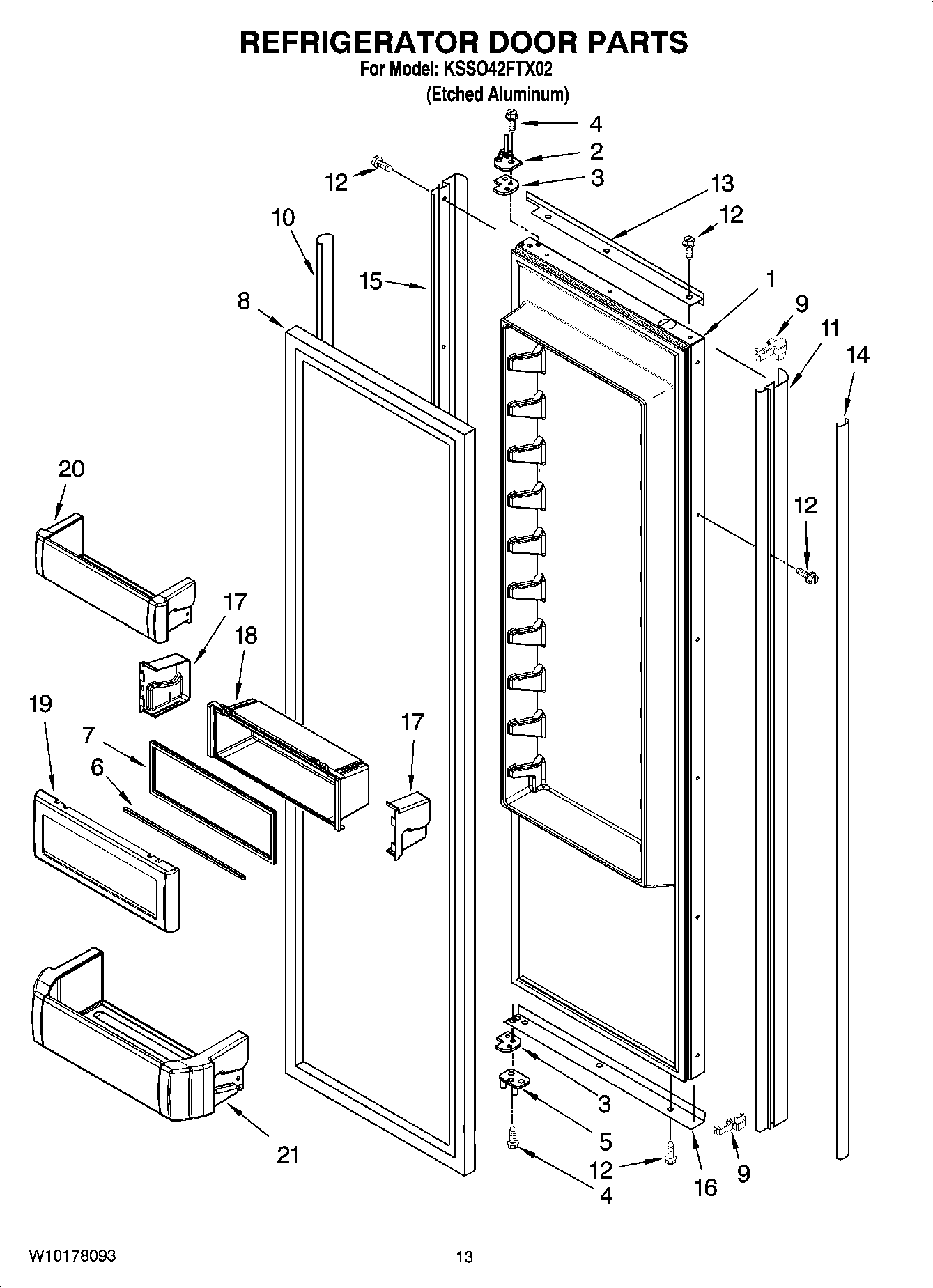

KSSO42FTX02 09 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
2	Hinge Assy, Top (Chrome)
3	W11673500 Whirlpool Door Hinge
4	W11474472 Whirlpool Screw
5	2252293 Whirlpool Refrigerator Door Hinge
6	W11448696 Whirlpool Refrigerator Bin
7	Gasket, Utility Bin
8	WP2266902 Whirlpool Refrigerator Door Gasket
9	2207457 Whirlpool Refrigerator Door Trim
10	2259448S Whirlpool Refrigerator Trim Cover
11	2309497S Whirlpool Refrigerator Door Trim
12	WP8281250 Whirlpool Refrigerator Screw
13	2309486S Whirlpool Door Trim
14	2314003S Whirlpool Refrigerator Trim Cover
15	2309498S Whirlpool Refrigerator Door Trim
16	2309492S Whirlpool Door Trim
17	WPW10323173 Whirlpool Refrigerator Retainer End Cap
17	WPW10323172 Whirlpool Refrigerator Retainer End Cap
18	W10323042 Whirlpool Cantilever Bin
19	W11553221 Whirlpool Refrigerator Door Compressor
20	W10323599 Whirlpool Refrigerator Cantilever Bin
21	W10323747 Whirlpool Refrigerator Cantilever Bin
